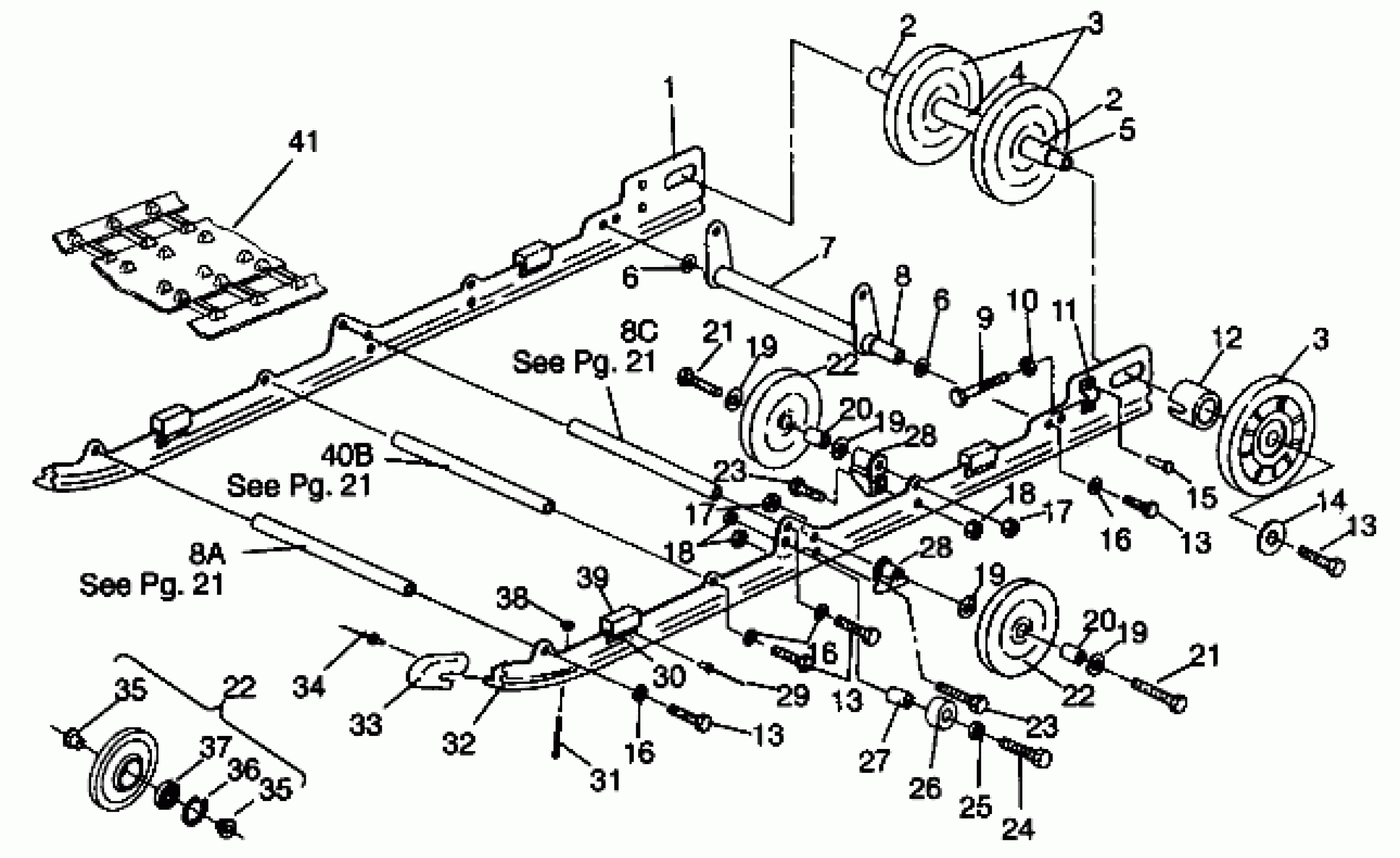

SUSPENSION ASSEMBLY 600 XCR 0941667 (4927092709020A)
Polaris 600 XCR - 0941667 SUSPENSION ASSEMBLY 600 XCR 0941667 (4927092709020A) Diagram
#
1
RAIL ASM, RH. (Incl. 11, 30, 33, 39)
1540796
$263.99
1
RAIL ASM, LH. (Incl. 11, 30, 33, 39)
1540795
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
2
SPACER INNER IDLER
5010169
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
3
WHEEL, IDLER Substituted by 1594079-070
1594021
Unavailable
4
SPACER CTR IDLER
5010168
Unavailable
5
SHAFT,IDLER
5020722
Unavailable
6
MACHINERY BUSHING(10)
7556301
$3.19
6
MACHINERY BUSHING(10)
7556301
$3.19
7
ARM,R.TORQUE,BLK.
1540793-067
Unavailable
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg.)
5020723
$29.99
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg.)
5020723
$29.99
8
SHAFT,PIVOT ARM (Ref. A, C) (See Pg.)
5020723
$29.99
9
BOLT, ADJUSTER(10)
7515455
$29.99
10
NUT(10)
7542440
Unavailable
11
BLOCK-IDLER BOLT ADJ.
5130530
$32.37
12
SPACER-IDLER-OUTER
5332641
Unavailable
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
13
BOLT(10)
7515526
$1.19
14
WASHER(10) Substituted by 7556130
7571629
Unavailable
15
RIVET,(50)
7621501
$2.39
16
WASHER(10)
7552603
$1.49
16
WASHER(10)
7552603
$1.49
17
NUT, NYLOCK(10)
7542525
$4.79
17
NUT, NYLOCK(10)
7542525
$4.79
17
NUT, NYLOCK(10)
7542525
$4.79
18
NUT-LOCK(10)
7542439
$1.49
18
NUT-LOCK(10)
7542439
$1.49
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
19
WASHER, FLAT(10)
7555852
$2.39
20
SPACER, WHEEL
5333116
$7.99
20
SPACER, WHEEL
5333116
$7.99
21
BOLT(10)
7512538
$6.39
21
BOLT(10)
7512538
$6.39
22
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
22
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
22
WHEEL, IDLER (Incl. 35-37)
1543018
$56.65
23
BOLT(10)
7512404
$3.99
23
BOLT(10)
7512404
$3.99
24
BOLT Substituted by 7515491
7515433
$1.59
25
WASHER(10)
7555743
Unavailable
26
ROLLER-SPRING
5430540
Unavailable
27
Spacer
5332787
Unavailable
28
SPACER
5630399
$11.99
28
SPACER
5630399
$11.99
29
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
30
REINF., BUMPER
5222629
$13.75
31
SCREW(10)
7512227
$3.19
32
SLIDER,WIDE,BLK.(2)
5521275
Unavailable
33
COVER-RAIL TIP
5430627
$32.37
34
RIVET(50)
7621435
$1.49
35
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
35
INSERT, WHEEL,(10) (2 Per Wheel)
5431531
$9.70
36
RET.RING-TRUARC (1 per Wheel)
7718407
$4.79
37
BEARING,CHAINCASE (1 per Wheel)
3514305
$19.99
38
NUT-LOCK(10)
7542122
$1.49
39
BUMPER, RAIL
5810554
$7.27
40
SHAFT,PIVOT ARM (Ref. B) (See Pg.)
5020724
$29.99
41
TRACK,121'',MOLDED [Item NotAvailable]
5410847
$527.79
