STEERING ASSEMBLY 600 XCR 0941667 (4927092709016A)

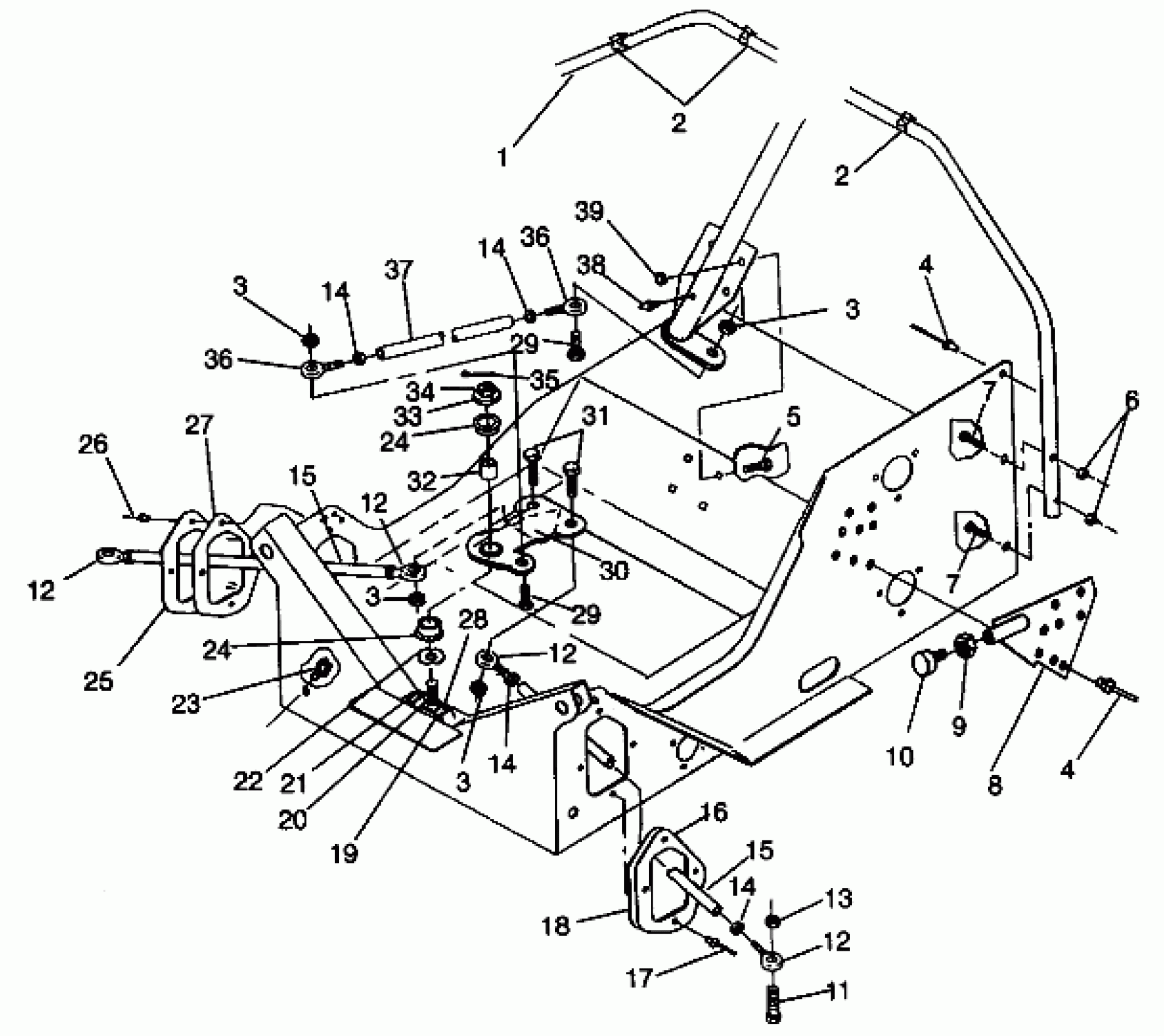

Polaris 600 XCR - 0941667 STEERING ASSEMBLY 600 XCR 0941667 (4927092709016A) Diagram
#
1
HOOP,STEERING
1011513-067
Unavailable
2
CLIP(10)
7080278
$2.63
2
CLIP(10)
7080278
$2.63
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
3
NUT LOCK(10)
7542403
$3.99
4
RIVET-3/16-.090-.290
7661637
$1.49
4
RIVET-3/16-.090-.290
7661637
$1.49
5
BOLT(10) Substituted by 7512377
7512394
Unavailable
6
NUT-LOCK(10)
7542122
$1.49
7
BOLT-CARRIAGE(10)
7512275
$3.99
7
BOLT-CARRIAGE(10)
7512275
$3.99
8
LIMITER,TORQUE,PTO,BLK.
1012044-067
Unavailable
9
NUT, JAM(10)
7542432
$3.99
10
MT,RUBBER,TORQUE STOP
3110041
Unavailable
11
BOLT(10) Substituted by 7515528
7515529
Unavailable
12
ROD END, LH Substituted by 7060166
7060151
$48.56
12
ROD END, RH Substituted by 7060167
7060152
$48.56
12
ROD END, LH Substituted by 7060166
7060151
$48.56
12
ROD END, RH Substituted by 7060167
7060152
$48.56
12
ROD END, LH Substituted by 7060166
7060151
$48.56
12
ROD END, RH Substituted by 7060167
7060152
$48.56
12
ROD END, LH Substituted by 7060166
7060151
$48.56
12
ROD END, RH Substituted by 7060167
7060152
$48.56
13
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
14
NUT HEX(10)
7542401
$2.39
14
NUT
7542424
$1.49
14
NUT HEX(10)
7542401
$2.39
14
NUT
7542424
$1.49
14
NUT HEX(10)
7542401
$2.39
14
NUT
7542424
$1.49
14
NUT HEX(10)
7542401
$2.39
14
NUT
7542424
$1.49
15
ROD,TIE,BLK.
5020715-067
Unavailable
15
ROD,TIE,BLK.
5020715-067
Unavailable
16
PLATE,LH,BOOTSEAL Substituted by 5210959-067
5210959
Unavailable
17
RIVET(50)
7621301
$3.99
18
BOOT , LH
5410388
Unavailable
19
BLOCK-CTR.STEERING
5130534
Unavailable
20
BOLT(10)
7512658
Unavailable
21
BLOCK,STRG,OFFSET
5630502
Unavailable
22
WASHER,WAVE(10)
7555735
$3.99
23
CLIP, PLASTIC(10)
4020139
$4.79
24
BUSHING
3563907
$3.99
24
BUSHING
3563907
$3.99
25
PLATE,RH,BOOT SEAL
5210904
Unavailable
26
POP RIVET(50)
7621303
Unavailable
27
BOOT-TIE ROD
5410328
Unavailable
28
BLOCK, STEERING
5630375
Unavailable
29
BOLT(10)
7512404
$3.99
29
BOLT(10)
7512404
$3.99
30
ARM,STRG,CTR.
1822176-067
$13.99
31
BOLT(10)
7515528
$8.79
32
BUSHING-SPACER
5010161
Unavailable
33
WASHER(10)
7555721
$1.49
34
NUT(10)
7542712
$9.59
35
PIN COTTER(10)
7661203
$1.49
36
ROD END,LH Substituted by 7060164
7060124
$48.56
36
ROD END RH Substituted by 7060165
7060125
$48.56
36
ROD END,LH Substituted by 7060164
7060124
$48.56
36
ROD END RH Substituted by 7060165
7060125
$48.56
37
ROD-DRAG LINK
5332712
Unavailable
38
FITTING,LUB/VEN(10)
7080561
$4.79
39
NUT-5/16-18 NYLOK-Y
7542324
$1.49
