REAR TORQUE ARM ASSEMBLY 600 XCR 0941667 (4927092709022A)

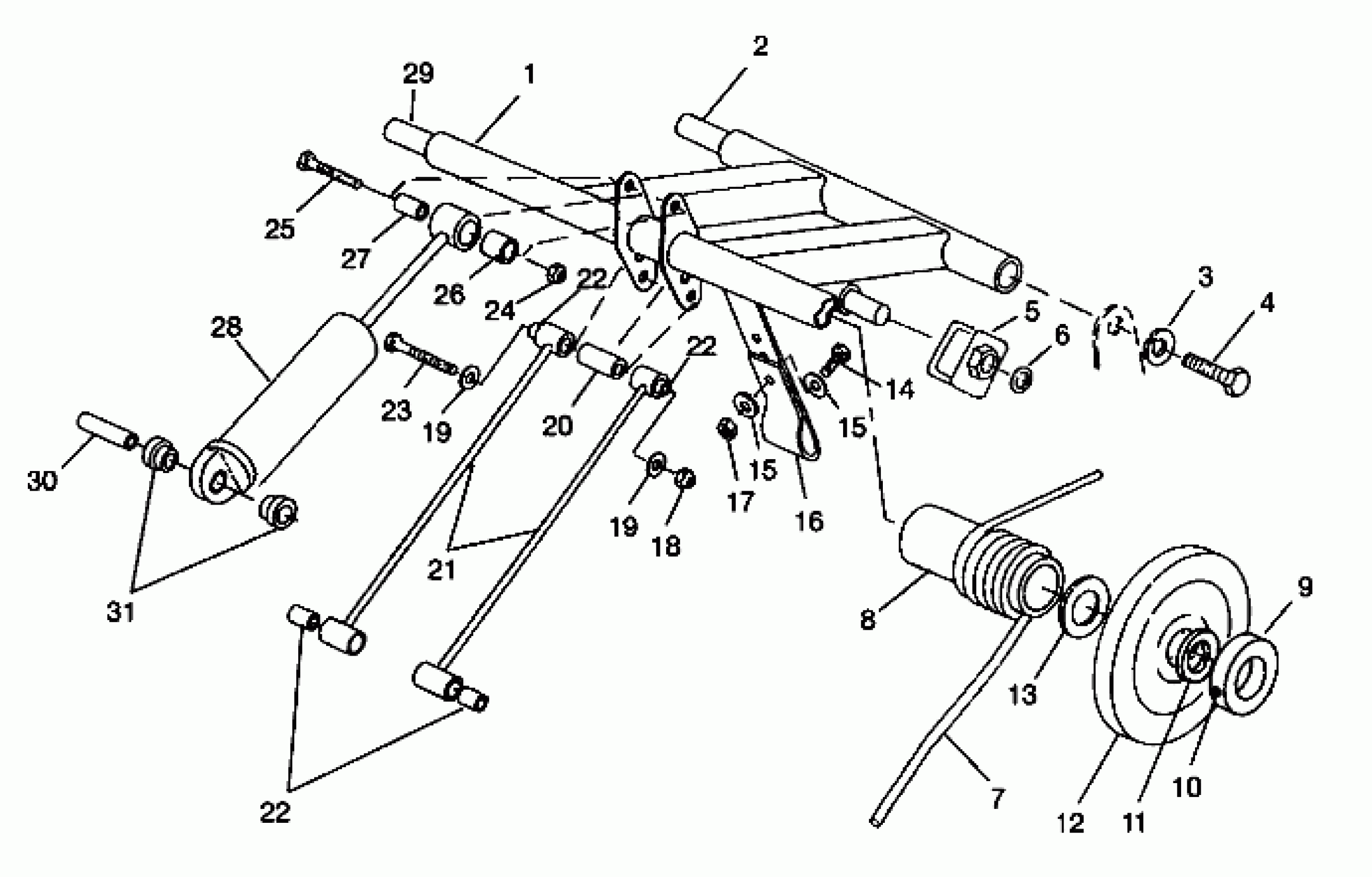

Polaris 600 XCR - 0941667 REAR TORQUE ARM ASSEMBLY 600 XCR 0941667 (4927092709022A) Diagram
#
Description
Price
1
ARM,R.TORQUE,BLK.
1540793-067
Unavailable
2
SHAFT,R.TORQUE ARM
5020727
Unavailable
3
WASHER(10)
7552603
$1.49
4
BOLT(10)
7515526
$1.19
5
ROLLER, SPRING ADJ.
5431168
Unavailable
6
CLIP-PUSH ON
7080394
$2.39
7
SPRING,RH,R.SUSP,BLK.
7041249-067
$99.21
7
SPRING,LH,R.SUSP,BLK.
7041248-067
Unavailable
8
Tube, Spring
5521234
Unavailable
9
COLLAR-BRG. LOCK
5010155
Unavailable
10
SCREW-SET(10)
7512257
$3.99
11
WASHER-WAVE(10)
7571605
$6.39
12
Wheel, Carrier
1543023
Unavailable
13
WASHER SPECIAL(10)
7556509
$1.59
14
BOLT(10)
7512247
$2.39
15
WASHER(10)
7558221
$2.39
15
WASHER(10)
7558221
$2.39
16
STRAP, LIMITER
5410587
Unavailable
17
NUT, LOCK(10)
7542103
$5.59
18
NUT FLEX LOC,(10)
7542402
$6.39
19
WASHER(10) Substituted by 7555806
7555720
$0.79
19
WASHER(10) Substituted by 7555806
7555720
$0.79
20
SPACER,R.PIVOT ARM
5333026
$3.03
21
ROD, SUSP,BLK.
1540792-067
Unavailable
22
Spacer
5333028
$1.59
22
Spacer
5333028
$1.59
22
Spacer
5333028
$1.59
23
SCREW(10)
7512463
$5.43
24
NUT-5/16-18 NYLOK-Y
7542324
$1.49
25
BOLT(10)
7512329
$3.99
26
BUSHING
5430537
$3.99
27
BUSHING,R.SHOCK
5333030
Unavailable
28
SHOCK,GAS,REAR
7041345
Unavailable
29
SHAFT, MTG, REAR
5020570
Unavailable
30
BUSHING, 1.40
5020657
$15.99
31
BUSHING,SHOCK,.340 NOTE: For Fox Shock replacement parts see pages A32 - A34.
5431542
Unavailable
