PISTON and CRANKSHAFT 600 XCR 0941667 (4927092709036A)

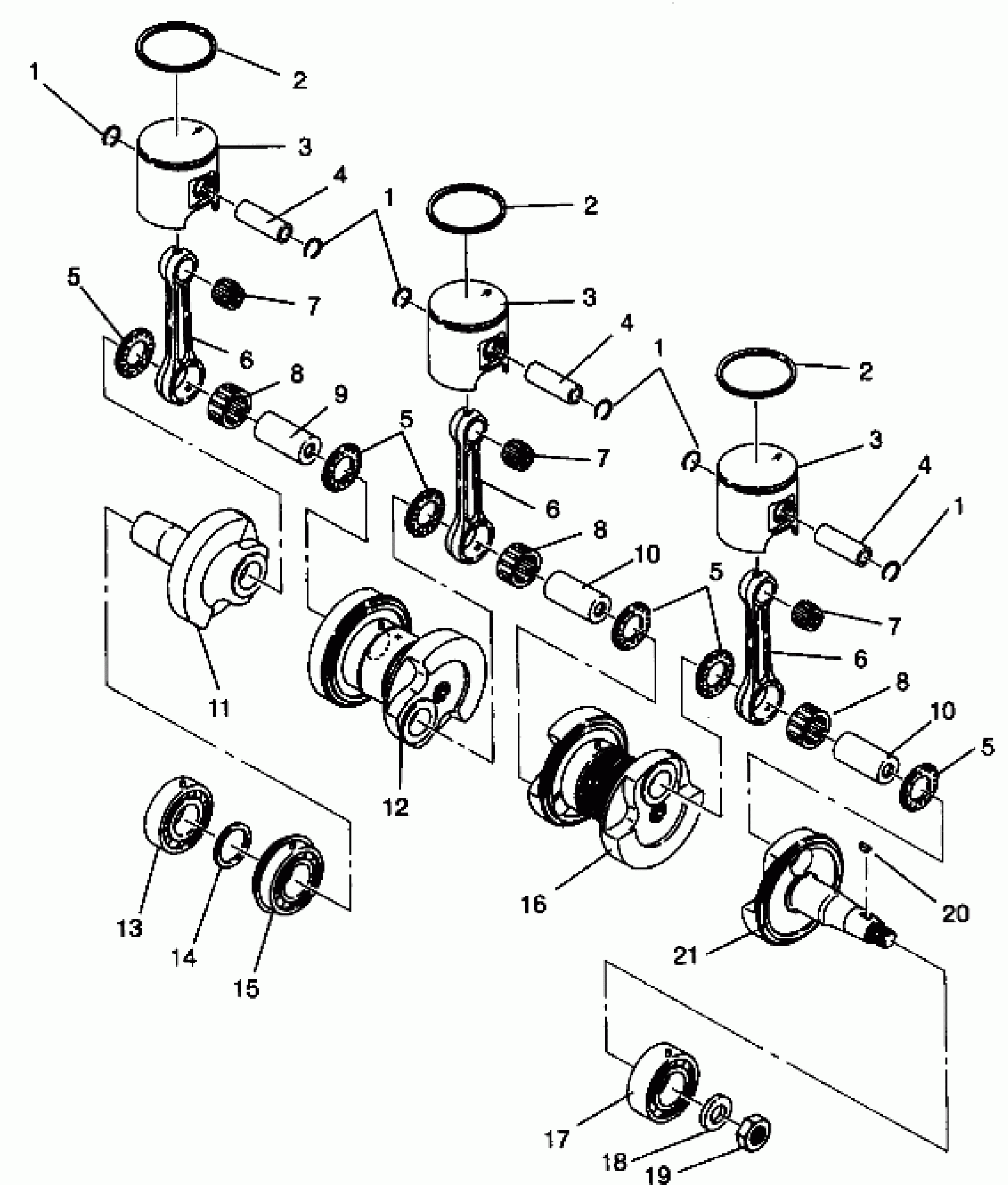

Polaris 600 XCR - 0941667 PISTON and CRANKSHAFT 600 XCR 0941667 (4927092709036A) Diagram
#
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
1
CLIP,PISTON PIN,(10)
3084456
Unavailable
2
RING,PISTON,KONIG,65.MM. (Standard)
3022945
$21.43
2
RING,PISTON,KONIG,65.MM. (Standard)
3022945
$21.43
2
RING,PISTON,KONIG,65.MM. (Standard)
3022945
$21.43
3
PISTON/RING ASM,KONIG,65 MM. (Standard)
3022944
Unavailable
3
PISTON/RING ASM,KONIG,65 MM. (Standard)
3022944
Unavailable
3
PISTON/RING ASM,KONIG,65 MM. (Standard)
3022944
Unavailable
4
PIN, PISTON Substituted by 3085021
3084455
Unavailable
4
PIN, PISTON Substituted by 3085021
3084455
Unavailable
4
PIN, PISTON Substituted by 3085021
3084455
Unavailable
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
5
SPACER(CRANKPIN)
3083277
$15.99
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
6
ROD, CONNECTING Substituted by 3085422
3084446
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
7
BEARING,SMALL END
3080998
Unavailable
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
8
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
PIN-CRANK 2
3083254
Unavailable
10
PIN, CRANK, #1
3084447
$32.15
10
PIN, CRANK, #1
3084447
$32.15
11
CRANKSHAFT 3
3084445
Unavailable
12
CRANKSHAFT,PTO SIDE (PTO Side) (Incl. 9)
3084444
$549.99
13
BEARING, BALL
3084586
$44.99
14
SPACER,CRANKSHAFT
3080447
$1.99
15
BEARING, BALL
3084599
Unavailable
16
CRANKSHAFT,CENTER Substituted by 3085421 (Center) (Incl. 8-10,12)
3084442
$999.99
16
CRANKSHAFT,MAG SIDE (MAG Side) (Incl. 10)
3084443
Unavailable
17
BEARING, BALL
3084681
Unavailable
18
Washer
3084457
Unavailable
19
NUT
3083093
$19.99
20
KEY WOODRUFF
3081543
$12.94
21
CRANKSHAFT 1 Substituted by 3084597
3084441
$226.99
21
CRANKSHAFT ASM. Substituted by 3085420 (Incl. 5,6,8-17,21)
3084679
$1,504.99
