FRONT SUSPENSION and SKI 600 XCR 0941667 (4927092709011A)

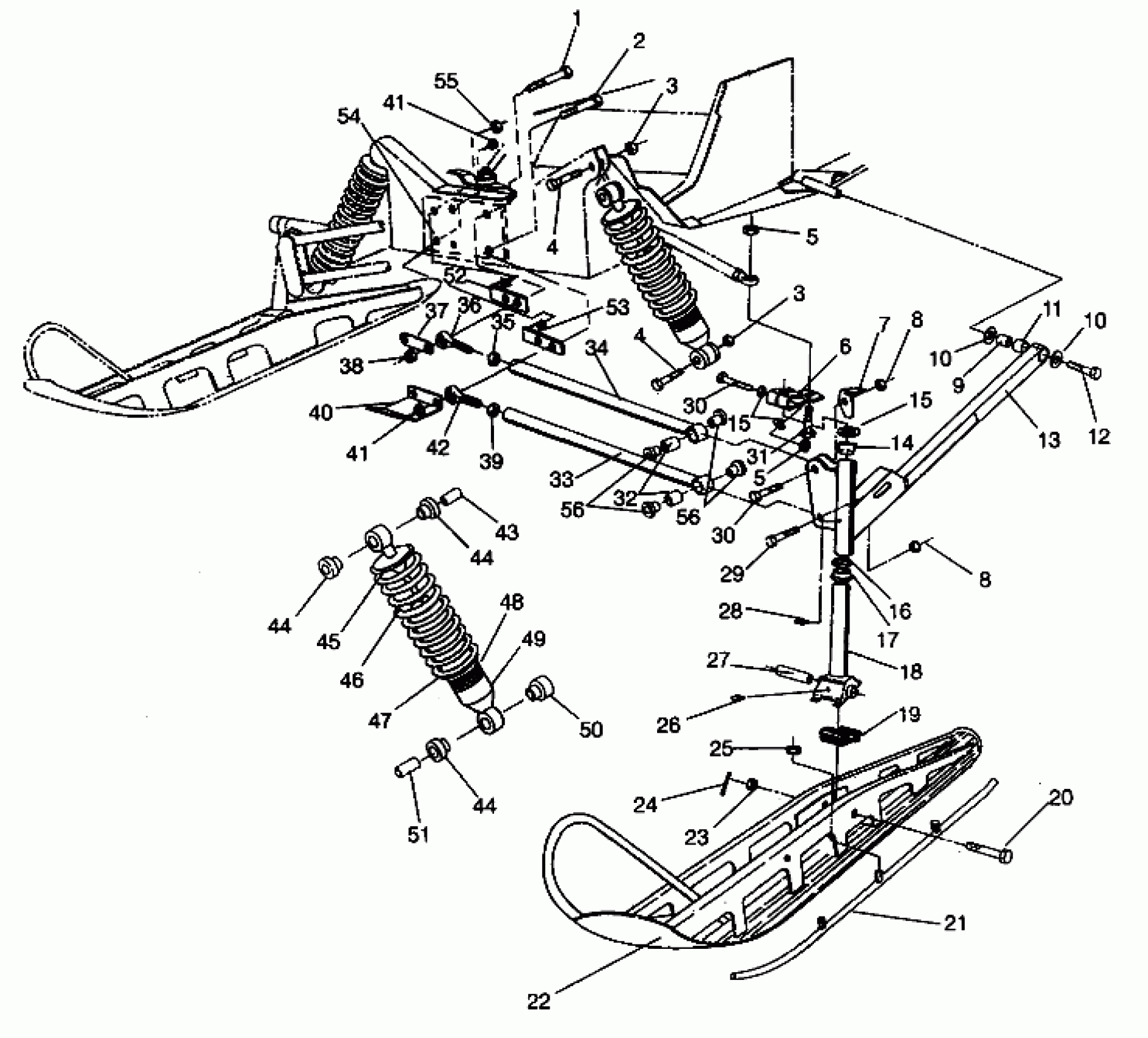

Polaris 600 XCR - 0941667 FRONT SUSPENSION and SKI 600 XCR 0941667 (4927092709011A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512678
$19.99
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
5
NUT, FLEXLOC B(10) Substituted by 7542403
7542456
$3.97
6
Arm, Steering
5220326-067
Unavailable
7
STOP,RH,STRG,BLK.
5240398-067
Unavailable
7
STOP,LH,STRG,BLK.
5240397-067
Unavailable
8
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
8
NUT, FLEXLOC(10) Substituted by 7542411
7542452
Unavailable
9
TUBE,TRAILING ARM
5010187
Unavailable
10
WASHER(10)
7555721
$1.49
10
WASHER(10)
7555721
$1.49
11
PIVOT-TRAILING ARM
5410382
Unavailable
12
BOLT(10) Substituted by 7512557
7512584
$7.60
13
ARM ASM,TRLG,LH. Substituted by 1822205
1822164
Unavailable
13
ARM ASM,TRLG,RH. Substituted by 1822206
1822165
Unavailable
14
BUSHING-FLANGE
3573909
$2.39
15
WASHER(10) Substituted by 7555832
7555851
Unavailable
15
WASHER(10) Substituted by 7555832
7555851
Unavailable
16
WASHER SPECIAL(10)
7556509
$1.59
17
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
18
SPINDLE,BLK,HARDENED
6230075-067
Unavailable
19
STOP, RUBBER
5521276
Unavailable
20
BOLT(10)
7515462
$8.79
21
SKAG,PR.,CARBIDE
2870693
$69.99
22
SKI
1820366-067
Unavailable
23
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
24
PIN, COTTER(10) Substituted by 7661205
7661209
Unavailable
25
NUT-5/16-18 NYLOK-Y
7542324
$1.49
26
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
27
BUSHING,PIVOT,(10)
5010158
$19.99
28
ZERK,FITTING,THREADED(10)
7080433
$1.49
29
BOLT(10) Substituted by 7515540
7515492
$4.62
30
BOLT(10) Substituted by 7517583
7515491
Unavailable
30
BOLT(10) Substituted by 7517583
7515491
Unavailable
31
BOLT Substituted by 7512404
7515490
Unavailable
32
BUSHING-RADIUS ROD,(10)
5010127
$7.99
33
ROD,RAD.,LOWER
1823170-067
Unavailable
34
ROD,RAD.,UPPER
1823171-067
$34.21
35
NUT JAM(10)
7542520
$2.39
36
ROD END, RH Substituted by 7061010 (HD)
7060155
Unavailable
37
STRAP,SPACER TOP
5211344
$7.27
38
NUT, LOCK,(10)
7542503
$10.39
39
NUT-JAM(10)
7542711
$2.39
40
BRACE, PAN
5223997-067
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END,RH Substituted by 7061011 (HD)
7060156
Unavailable
43
BUSHING, (1.16 IN.)
5020613
Unavailable
44
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
44
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
44
BUSHING,SHOCK,.220 Substituted by 1500137
5431540
$24.99
45
RETAINER,SPRING,SLOTTED
5020618
$24.99
46
SPRING,(BLK.),IFS COMP.
7041252-067
Unavailable
47
RING, RETAINING(10)
7710424
$0.63
48
RETAINER, SPRING BODY
5020617
Unavailable
49
SHOCK,GAS,IFS,IFP,CAM
7041346
Unavailable
50
BUSHING,SHOCK
5431727
Unavailable
51
BUSHING, (1.34 IN.)
5020612
Unavailable
52
PLATE,REINF.OFFSET
1012045
Unavailable
53
PLATE,REINF.LOW,OFFSET
1012046
$19.84
54
PLATE,REINF.BACKER.BLK.
5211443-067
Unavailable
55
NUT,FLEX LOC(10)
7542507
$3.99
56
BUSH,RAD.ROD PIVOT,OUT. NOTE: For Fox Shock replacement parts see pages -.
5431486
$3.19
56
BUSH,RAD.ROD PIVOT,OUT. NOTE: For Fox Shock replacement parts see pages -.
5431486
$3.19
