DRIVE TRAIN ASSEMBLY 600 XCR 0941667 (4927092709019A)

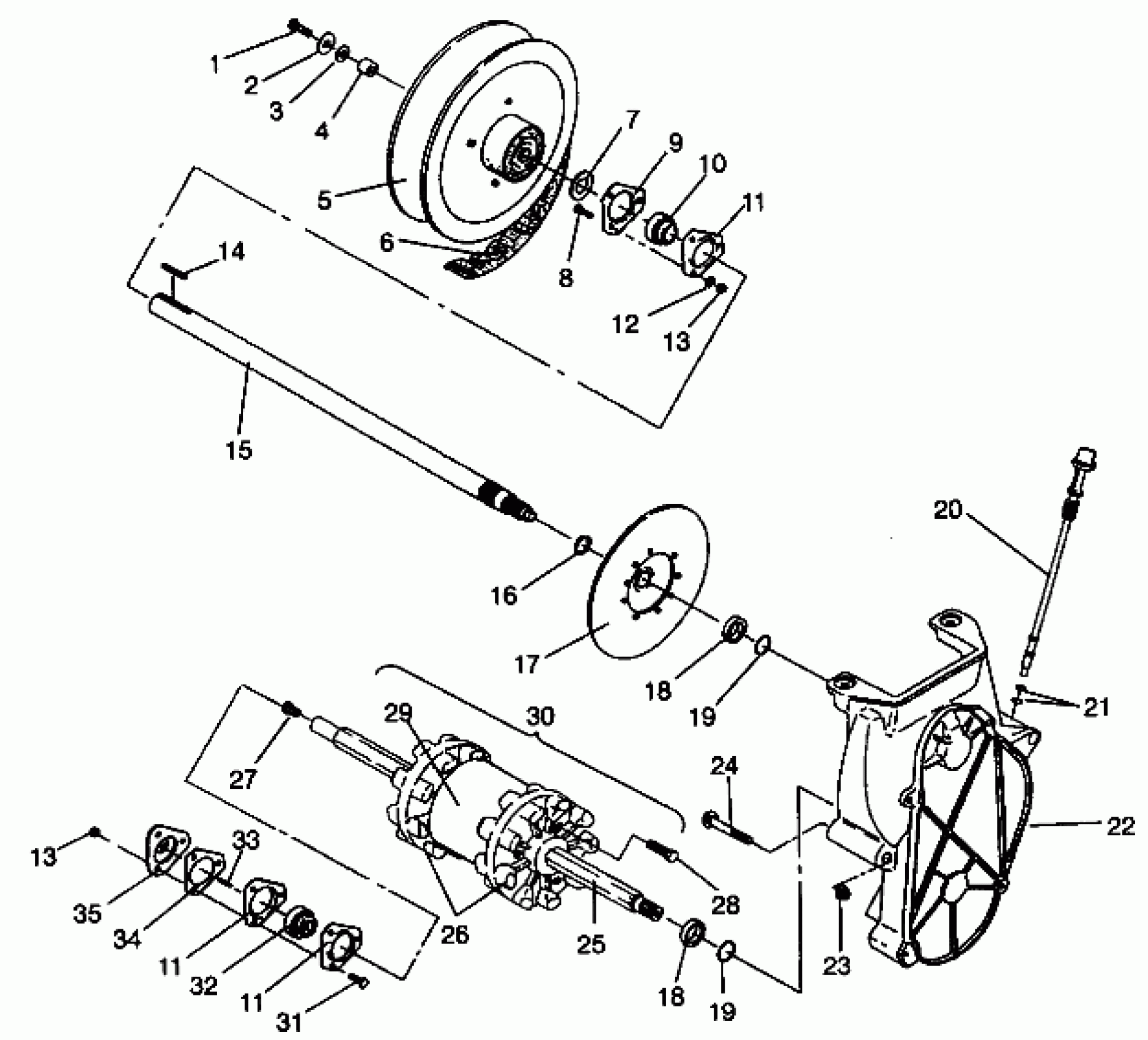

Polaris 600 XCR - 0941667 DRIVE TRAIN ASSEMBLY 600 XCR 0941667 (4927092709019A) Diagram
#
Description
Price
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
SPACER
5020291
Unavailable
5
CLUTCH,DRIVEN,ADJ,TRIPLE (See Pg. A27, Ref. 15)
1322162
$194.94
6
BELT DRIVE(5)
3211042
$109.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE
5240252
Unavailable
10
KIT,HI-PERF,BEARING (Incl. 11)
2200422
Unavailable
11
FLANGETTE
5222751
$16.44
11
FLANGETTE
5222751
$16.44
11
FLANGETTE
5222751
$16.44
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
KEY-SQUARE(10)
7721204
$3.19
15
JACKSHAFT ASM, BLK. (Incl. 16)
1332141-067
$190.46
16
RING, RETAINING(10)
7710422
$3.99
17
DISC ASM, BRAKE
1910086
Unavailable
18
SLEEVE, SEAL
5020588
$23.99
18
SLEEVE, SEAL
5020588
$23.99
19
O RING,(10)
5410613
$1.99
19
O RING,(10)
5410613
$1.99
20
DIPSTICK Substituted by 1332143
5431419
Unavailable
21
O-RING
5410675
$1.60
22
Chaincase, Top Mount Brake (See Pg. A21, Ref. 23)
-------
Unavailable
23
NUT(10)
7542423
$3.99
24
BOLT(10)
7515428
$4.79
25
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
26
SPROCKET,9T
5431703
Unavailable
27
BUSHING METAL SPEEDO
3280019
$11.99
28
BOLT(10)
7515495
Unavailable
29
HUB,DRIVE SPKT.
5131011
$91.19
30
DRIVESHAFT ASM. Substituted by 1590242 (Incl. 25-29)
1590238
Unavailable
31
BOLT(10)
7512331
$3.99
32
BEARING, (RUBBER SEAL) Substituted by 3514519
3514515
$64.99
33
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
34
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
35
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
