COOLING SYSTEM 600 XCR 0941667 (4927092709014A)

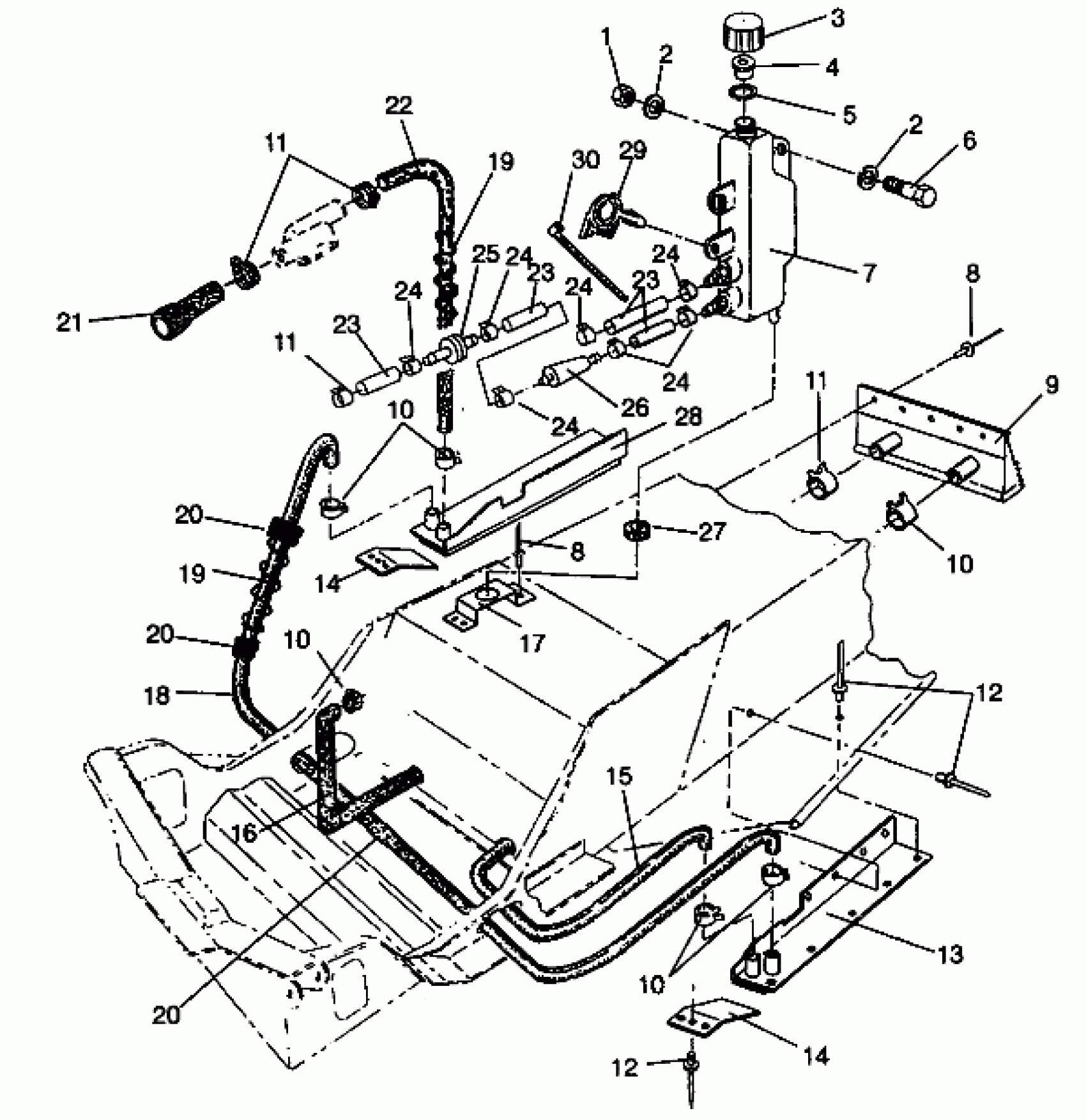

Polaris 600 XCR - 0941667 COOLING SYSTEM 600 XCR 0941667 (4927092709014A) Diagram
#
1
NUT-LOCK(10)
7542122
$1.49
2
WASHER,WROUGHT(10)
7558302
$1.59
2
WASHER,WROUGHT(10)
7558302
$1.59
3
CAP-OVER FLOW BOTTLE,DRILLED
5430743
$5.65
4
PLUG, OVERFLOW,(10)
5431096
$2.02
5
GASKET-OVERFLOW CAP
5810279
$2.41
6
BOLT(10)
7512240
$3.99
7
BOTTLE,O'FLOW,W/FITTING
5431733
$36.41
8
RIVET-3/16-.090-.290
7661637
$1.49
8
RIVET-3/16-.090-.290
7661637
$1.49
9
EXCHANGER,COOL.CTR.
2511239
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
10
CLAMP,WORM DRIVE
7080547
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
11
CLAMP, HOSE(10) Substituted by 7080564
7080498
Unavailable
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
12
RIVET,INTERLOCK,B(50)
7661638
$1.49
13
EXT.,LH COOLING Substituted by 2511257
2511228
Unavailable
14
GUARD, COOL.EXT.
5222863
$32.99
14
GUARD, COOL.EXT.
5222863
$32.99
15
HOSE-CROSSOVER (Short)
5410350
Unavailable
16
HOSE, CENTER
5410673
Unavailable
17
BRACKET
5223985
Unavailable
18
HOSE-CROSSOVER
5410324
Unavailable
19
SPRING,HOSE RETAINER
7041079
$4.95
19
SPRING,HOSE RETAINER
7041079
$4.95
20
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
20
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
20
TUBING,CONVOL,1"X2.5"
5521242
Unavailable
21
HOSE,COOLER/ENG.
5410862
Unavailable
22
HOSE,BRK.COOL.SIDE
5410705
$27.19
23
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
23
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
23
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
Unavailable
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
24
CLAMP-HOSE, (LARGE GREEN)
7080307
$1.49
25
VALVE, CHECK
7052038
$10.51
26
FILTER,WATER LINE Substituted by 2530024
2530010
Unavailable
27
GROMMET RUBBER
5410021
Unavailable
28
EXT.,RH.COOLING. Substituted by 2511258
2511229
Unavailable
29
CLIP, PLASTIC(10)
4020139
$4.79
30
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
