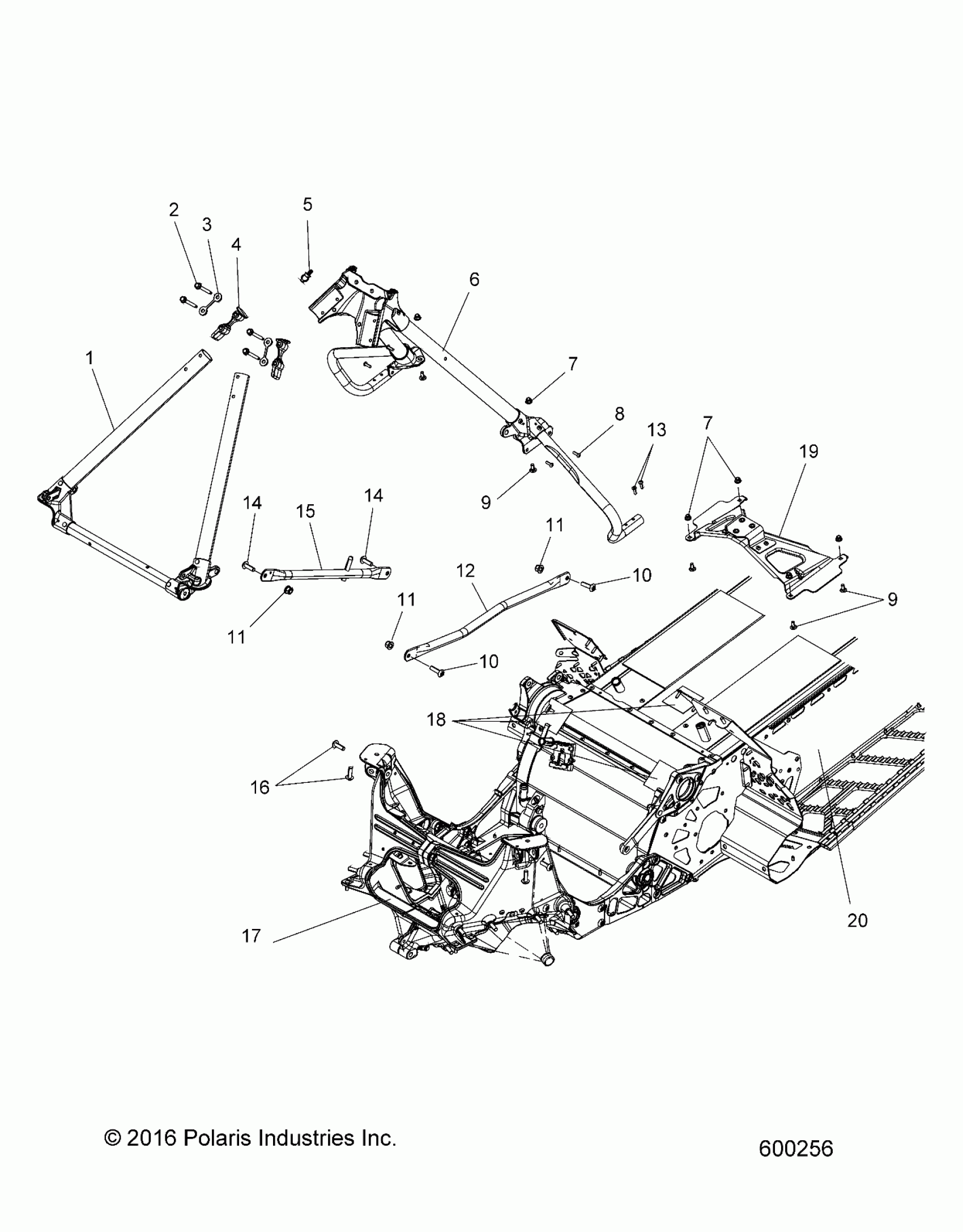

Polaris 600 SWITCHBACK SP 144 (R01) - S18EER6PSA/PSL/PEL CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S18EER6PSA/PSL/PEL (600256) Diagram

#

Description
Price

1

ASM., FRAME, TUBULAR, FRONT

1021006

Unavailable

2

SCREW

7519967

$4.99

3

SHIM-TUBE, CAST

5633083

$6.99

4

SPACER, TUBE CAST

5633122

$9.59

5

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

6

ASM., TUBE FRAME, REAR

1021007

$779.99

7

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

7

NUT-HXFL-M6X1.0 8 ZB3 NYL

7547453

$3.99

8

Rivet

7661130

Unavailable

9

SCREW-CARRIAGE

7520194

$3.99

9

SCREW-CARRIAGE

7520194

$3.99

10

SCREW-TR/TX

7518953

$1.59

10

SCREW-TR/TX

7518953

$1.59

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

11

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

12

TUBE-BRACE LH BLK

5337391-329

$34.99

13

RIVET-3/16-.090-.290

7661637

$1.49

14

SCREW-TXTR

7518906

$3.19

14

SCREW-TXTR

7518906

$3.19

15

TUBE BRACE RH BLK

1019861-329

Unavailable

16

SCREW-TXTH

7519070

$6.39

17

ASM., CHASSIS, CONV. 144 INCH, NATURAL [INCL. BULKHEAD]

1023060-309

$2,364.99

18

PAD, 2.5"X2.5"

5814187

$4.03

19

BRACKET, FUEL TANK, MBLK

1021376-458

$111.33

20

ASM., TUNNEL, CONV. 144 INCH, NATURAL [INCL. TUNNEL COOLER]

1023056-309

$1,714.99
