- 600 SWITCHBACK PRO-S ALL OPTIONS (R04) - S16DS6
SUSPENSION, RAIL ASM. - S16DS6 ALL OPTIONS (49SNOWSUSPRAIL15PRO137)

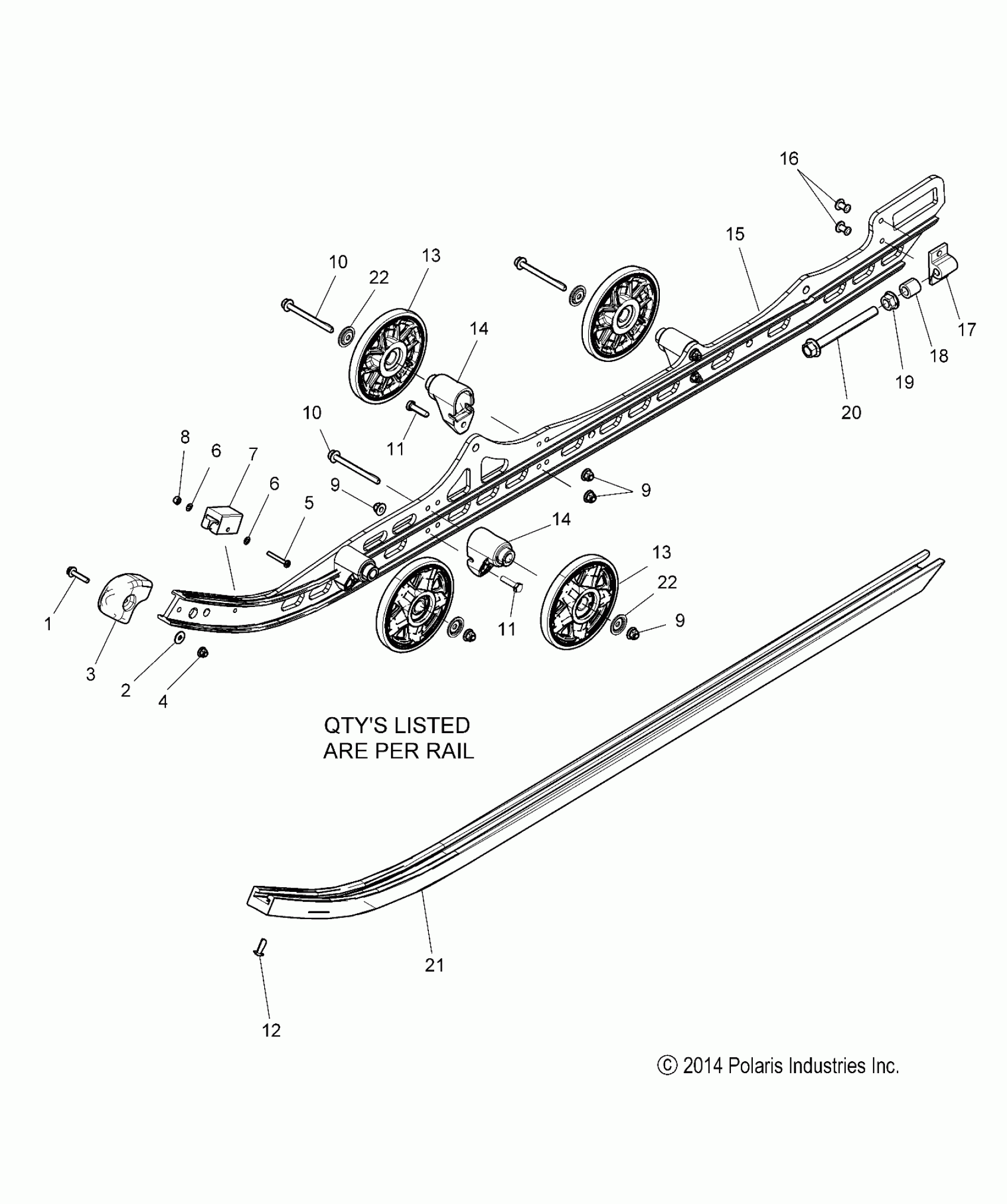

Polaris 600 SWITCHBACK PRO-S ALL OPTIONS (R04) - S16DS6 SUSPENSION, RAIL ASM. - S16DS6 ALL OPTIONS (49SNOWSUSPRAIL15PRO137) Diagram
#
Description
Price
1
SCREW
7518993
$2.39
2
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
3
CAP, RAIL TIP
5438374
$20.22
4
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
5
Screw
7510504
$6.76
6
Washer
7555783
$3.99
6
Washer
7555783
$3.99
7
BUMPER, JOUNCE, FRONT
5521499
$8.89
8
NUT
7541925
$1.49
9
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
9
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
9
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
10
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
10
SCR-HXFL- M6X1.0X70 10.9 ZOD
7519908
$4.79
11
Screw
7517510
$4.79
11
Screw
7517510
$4.79
12
SCREW
7518976
$3.19
13
ASM., WHEEL
1590511
$38.39
13
BEARING, NEEDLE
3514384
$19.84
13
RING-RETAINING
7710444
$8.79
13
ASM., WHEEL
1590511
$38.39
13
BEARING, NEEDLE
3514384
$19.84
13
RING-RETAINING
7710444
$8.79
14
BLOCK, WHEEL MOUNT
5632808
$24.27
14
BLOCK, WHEEL MOUNT
5632808
$24.27
15
ASM., RAIL, LH, BASIC 137 [Incl. 11,13]
1543578-309
$544.99
15
ASM., RAIL, RH, BASIC 137 [Incl. 11,13]
1543579-309
$544.99
15
ASM., RAIL, LH, BASIC 137, BLACK [SNOW CHECK] [Incl. 11,13]
1543578-067
$774.99
15
ASM., RAIL, RH, BASIC 137, BLACK [SNOW CHECK] [Incl. 11,13]
1543579-067
$799.99
15
ASM., RAIL, LH, BASIC 137, RED [SNOW CHECK] [Incl. 11,13]
1543578-293
$694.99
15
ASM., RAIL, RH, BASIC 137, RED [SNOW CHECK] [Incl. 11,13]
1543579-293
$729.99
15
ASM., RAIL, LH, BASIC 137, VOODOO BLUE [SNOW CHECK] [Incl. 11,13]
1543578-619
$799.99
15
ASM., RAIL, RH, BASIC 137, VOODOO BLUE [SNOW CHECK] [Incl. 11,13]
1543579-619
$799.99
15
ASM., RAIL, LH, BASIC 137, ORANGE BURST [SNOW CHECK] [Incl. 11,13]
1543578-647
$799.99
15
ASM., RAIL, RH, BASIC 137, ORANGE BURST [SNOW CHECK] [Incl. 11,13]
1543579-647
$799.99
16
RIVET
7621501
$2.39
17
BLOCK-IDLER BOLT ADJ METRIC
5136570
$34.99
18
SPACER
5137152
$3.19
19
NUT, HEX FLANGED
7547017
$5.59
20
SCREW
7519167
$11.99
21
SLIDER, SVC, BASIC
5521633
$40.46
21
HI-FAX,.45/74",SERVICE,BLK [SNOW CHECK MODELS]
5521633-070
$40.46
22
WASHER, OFFSET
7556799
$3.19
22
WASHER, OFFSET
7556799
$3.19
