- 600 SWITCHBACK ASSAULT ALL OPTIONS (R01) - S16CW6
SUSPENSION, REAR - S16CW6 ALL OPTIONS (49SNOWSUSPRR11800SB)

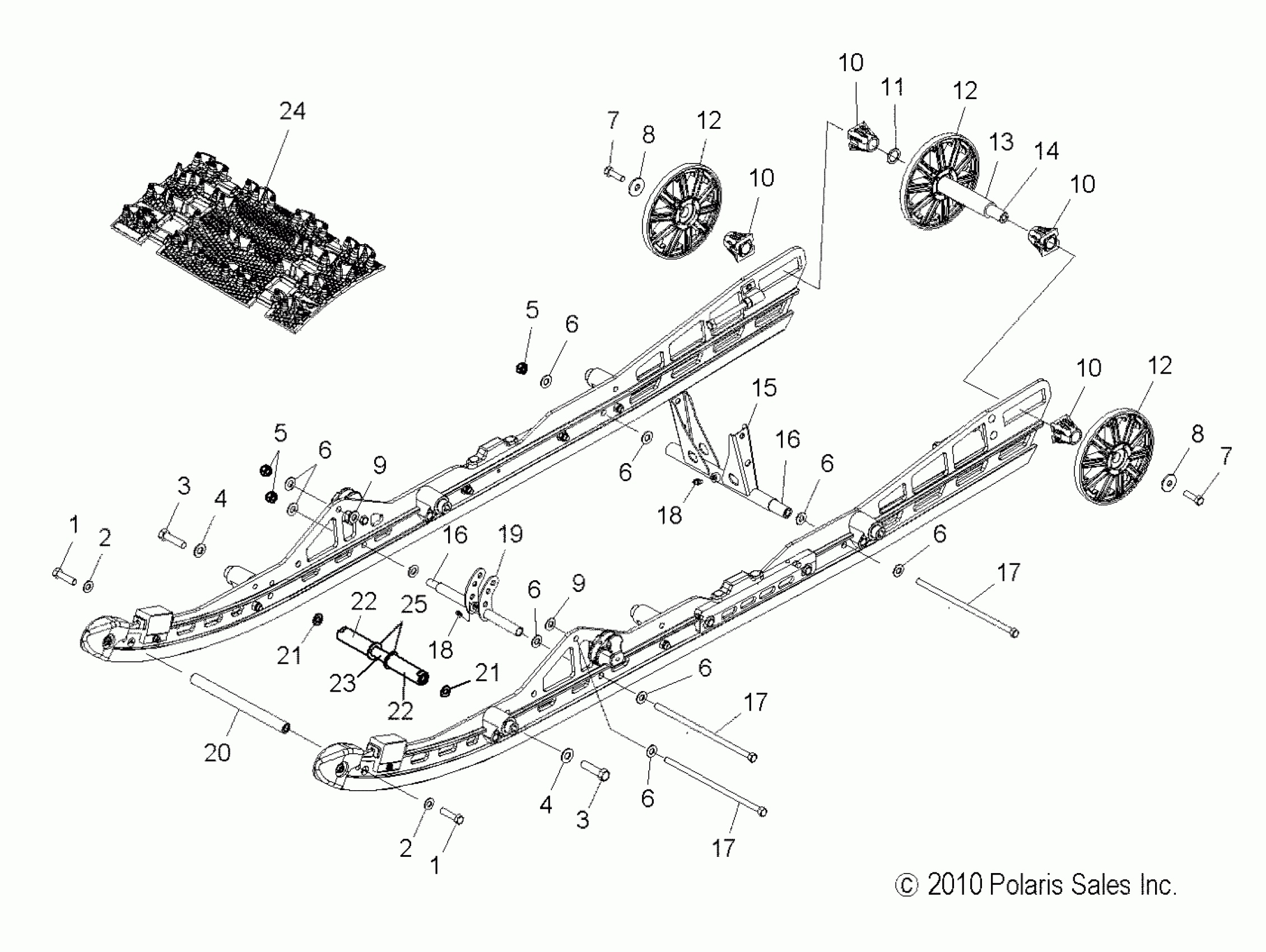

Polaris 600 SWITCHBACK ASSAULT ALL OPTIONS (R01) - S16CW6 SUSPENSION, REAR - S16CW6 ALL OPTIONS (49SNOWSUSPRR11800SB) Diagram
#
1
SCREW
7518005
$3.19
1
SCREW
7518005
$3.19
2
Washer, Flat
7555806
$1.49
2
Washer, Flat
7555806
$1.49
3
Screw
7517857
$5.59
3
Screw
7517857
$5.59
4
WASHER
7556042
Unavailable
4
WASHER
7556042
Unavailable
5
NUT
7547344
$1.49
5
NUT
7547344
$1.49
6
WASHER, FLAT
7556242
$2.39
6
WASHER, FLAT
7556242
$2.39
6
WASHER, FLAT
7556242
$2.39
6
WASHER, FLAT
7556242
$2.39
6
WASHER, FLAT
7556242
$2.39
6
WASHER, FLAT
7556242
$2.39
6
WASHER, FLAT
7556242
$2.39
6
WASHER, FLAT
7556242
$2.39
7
BOLT
7517731
$1.49
7
BOLT
7517731
$1.49
8
WASHER
7556130
$6.39
8
WASHER
7556130
$6.39
9
Washer, Flat
7555893
$1.49
9
Washer, Flat
7555893
$1.49
10
SPACER-IDLER
5432535
$11.99
10
SPACER-IDLER
5432535
$11.99
10
SPACER-IDLER
5432535
$11.99
10
SPACER-IDLER
5432535
$11.99
11
BUSHING
7555918
$1.59
12
BEARING
3514384
$19.84
12
RING-RETAINING
7710444
$8.79
12
ASM-WHEEL,SPOKE,7.25,6004
1590459
$47.99
12
BEARING
3514384
$19.84
12
RING-RETAINING
7710444
$8.79
12
ASM-WHEEL,SPOKE,7.25,6004
1590459
$47.99
12
BEARING
3514384
$19.84
12
RING-RETAINING
7710444
$8.79
12
ASM-WHEEL,SPOKE,7.25,6004
1590459
$47.99
13
SPACER-IDLER, LONG
5333285
$11.99
14
SHAFT, IDLER
5020744
$59.99
15
ARM, PIVOT, REAR, BLACK
1541832-067
$104.99
16
TUBE
5334162
$24.27
16
TUBE
5334162
$24.27
17
SCREW
7517921
$23.99
17
SCREW
7517921
$23.99
17
SCREW
7517921
$23.99
18
FITTING-LUBRICATION 1/4-28
7080424
$4.79
18
FITTING-LUBRICATION 1/4-28
7080424
$4.79
19
ARM, SHOCK, PIVOT, BLACK
1542122-067
$84.99
20
SHAFT
5134078
$38.71
21
WSHR-.813X.406X.105-Y
7555832
$2.39
21
WSHR-.813X.406X.105-Y
7555832
$2.39
22
SPACER, SHOCK, CENTERING
5334062
$11.99
22
SPACER, SHOCK, CENTERING
5334062
$11.99
23
SHAFT
5133188
$40.46
24
CLIP-TRACK,LNG GUIDE
5251274
Unavailable
24
CLIP-TRACK, FLAT
5251273
Unavailable
24
TRACK, 144 IN. X 1.352 COBRA
5414013
$927.99
24
TRACK, 144 IN. X 2
5413073
$949.99
24
TRACK, 144 IN. x 1.75 BACKCOUNTRY [INTL ONLY]
5415096
Unavailable
25
WASHER
7556210
$3.99
