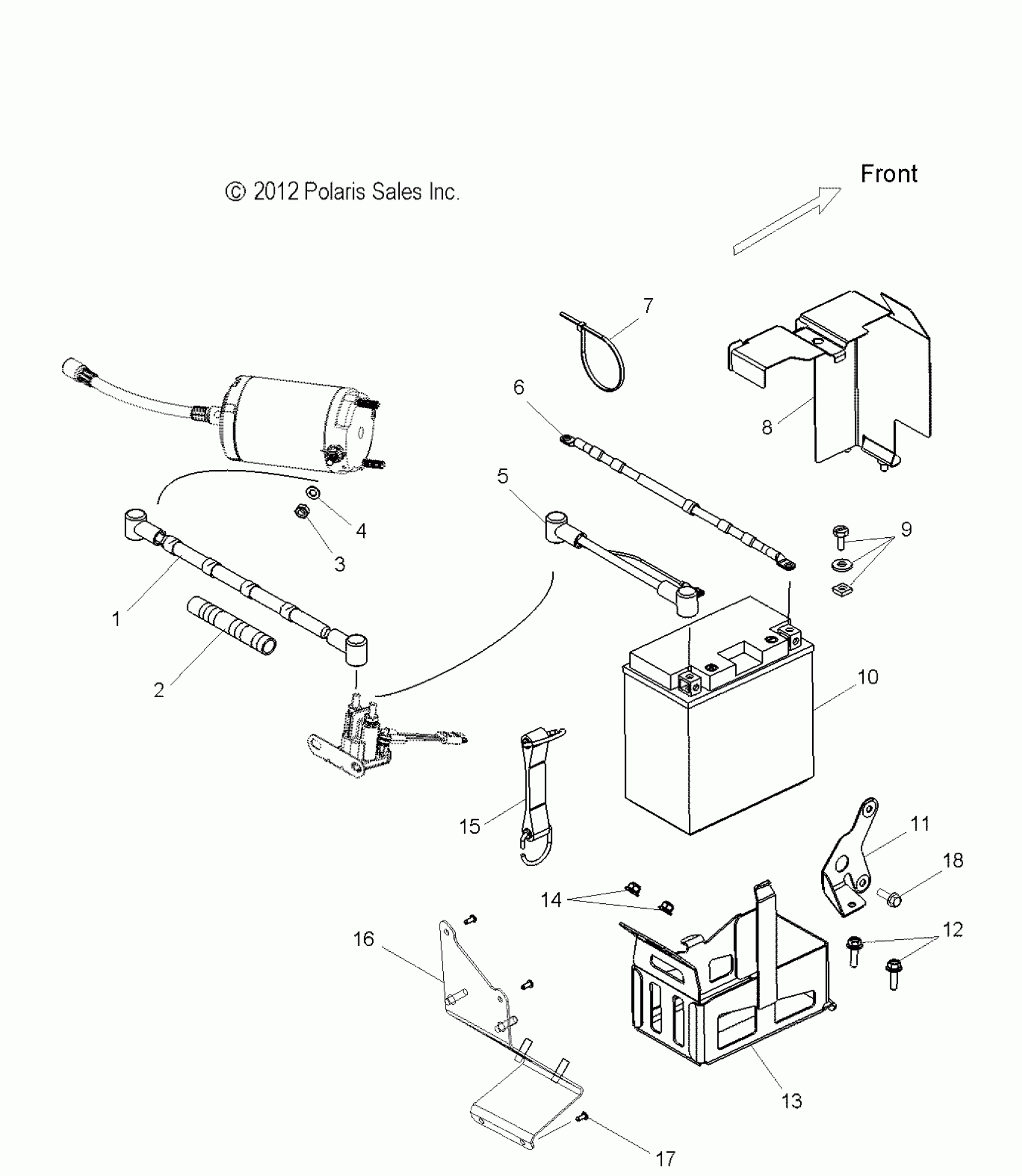

Polaris 600 SWITCHBACK ASSAULT ALL OPTIONS (R01) - S16CW6 ELECTRICAL, BATTERY and CABLES - S16CW6 ALL OPTIONS (49SNOWBATTERY13ASSLT) Diagram

Description

Price

CABLE, 6 GA., RED [INCL. INSULATOR]

4013289

$48.56

INSULATOR-CABLE

5410346

$6.39

CONDUIT, CONVOLUTED, 100CM

4010051-100

Unavailable

NUT

7542105

$3.99

WASHER, SPRING LOCK

7552801

$1.59

Asm., Cable, Battery/Solenoid

2460393

$36.41

CABLE, 6 GA., BLACK

4013290

$48.56

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

Cable Tie

7080999

Unavailable

SHIELD, HEAT, BATTERY

5253414

Unavailable

BATTERY BOLT KIT

2201357

$11.19

BATTERY [SVC]

4013045

$127.99

ASM., BRKT, BATTERY BOX FRONT

1018527

$28.32

SCREW

7518548

$1.59

BOX, BATTERY

1017182

$111.33

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

STRAP, RUBBER [DOES NOT INCL. D-HOOK]

5410608

$9.70

D-Hook

5224468

$9.59

ASM., BRKT., BATTERY BOX

1017820

$64.75

RIVET-3/16-.090-.290

7661637

$1.49

SCREW

7519243

$3.99
