- 600 SWITCHBACK ADVENTURE (R02) - S17DDE6PSL
SUSPENSION, SHOCK, REAR TRACK (1543574) - S17DDE6PSL (600180)

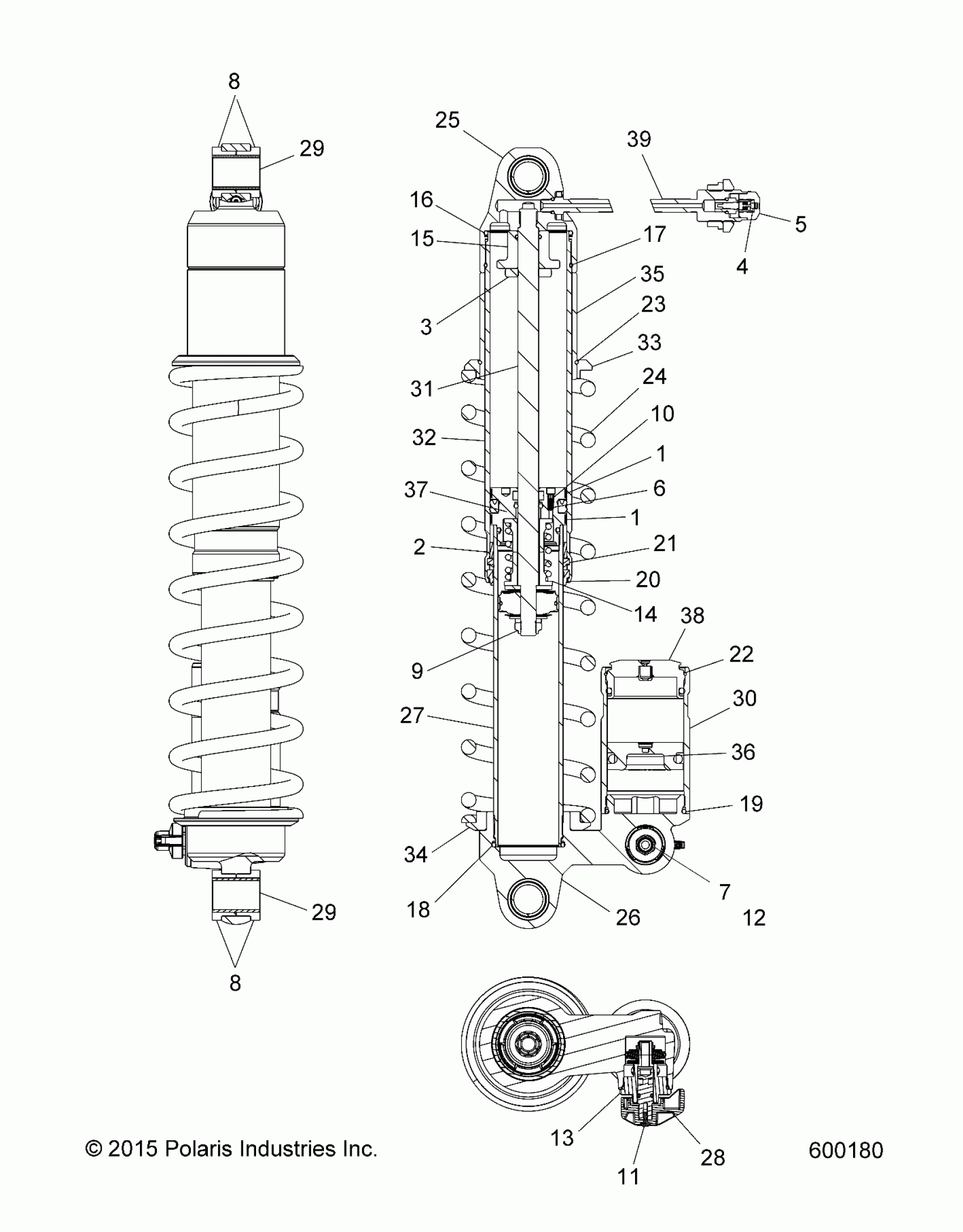

Polaris 600 SWITCHBACK ADVENTURE (R02) - S17DDE6PSL SUSPENSION, SHOCK, REAR TRACK (1543574) - S17DDE6PSL (600180) Diagram
#
-
DECAL, PERF. SERIES [NOT SHOWN]
1501012
$14.39
-
ASM., SHOCK, R/T COILOVER [INCL. ALL]
1543574
$919.99
-
DECAL, RESERVOIR, PERF. SERIES [NOT SHOWN]
1501104
$28.32
-
DECAL, BASE VALVE, 3 POSITION [NOT SHOWN]
1501105
$36.41
-
KIT, REBUILD, FLOAT 3
1501191
$104.99
1
BEARING, EXT.
1500982
$15.99
1
BEARING, EXT.
1500982
$15.99
2
BEARING, INT., 1.66 SHAFT
1501123
$28.32
3
BUMPER, T/O
1501124
$8.89
4
CAP SEAL, RED
1501125
$12.13
5
CAP VALVE, BLK
1501126
$10.51
6
BALL-.125 DIA.
1500071
$6.76
7
BALL, AIR VALVE
1501127
$8.89
8
BUSHING-.35x.82x.58
1500103
$8.08
8
BUSHING-.35x.82x.58
1500103
$8.08
9
NUT, LOCK, 3/8-24
1500016
$12.79
10
SCREW, SOCSET,#8x.25
1500070
$6.39
11
SCREW, #4 SS PAN
1501011
$13.59
12
PLUG
1501128
$20.22
13
ASM., DAMP. ADJUST.
1501116
Unavailable
14
GUIDE, NEG. SPRING
1501144
$48.87
15
SPACER, AIR ASSIST
1501146
$95.22
16
O-RING
1501129
$5.65
17
O-Ring
1500537
$7.03
18
O-RING-.103x1055ID
1500108
$10.99
19
O-RING,.103W-1.737ID
1500623
$6.39
20
WIPER, SAMURAI
1501130
$24.27
21
WIPER, A/N
1501131
$24.27
22
RING-RETAINING, WIRE 2.050
1501015
$9.59
23
RET. RING, WIRE
1501132
$4.79
24
SPRING, 12INx125LB, BLK
1501133
$199.99
25
BODY CAP, FLOAT GEN II
1501134
$119.99
26
BODY CAP, PIGGYBACK
1501135
$217.84
27
BODY, 7.70TLG, ALUM
1501136
$179.99
28
KNOB, DAMP. ADJ.
1501108
$20.22
29
SLEEVE
1500852
$49.99
29
SLEEVE
1500852
$49.99
30
RESERVOIR
1501109
$111.33
31
SHAFT, .498x10.20TLG
1501137
$72.84
32
SLEEVE
1501138
$194.99
33
SPRING RETAINER, LOWER
1501139
$32.37
34
SPRING RETAINER
1501140
$39.98
35
SLEEVE, LOWER
1501141
$48.87
36
PISTON, FLOATING
1501112
$56.65
37
ASM., BEARING
1501142
$85.70
38
ASM., END CAP, RES.
1501027
$101.19
39
ASM., HOSE, 12TLG
1501145
$204.99
