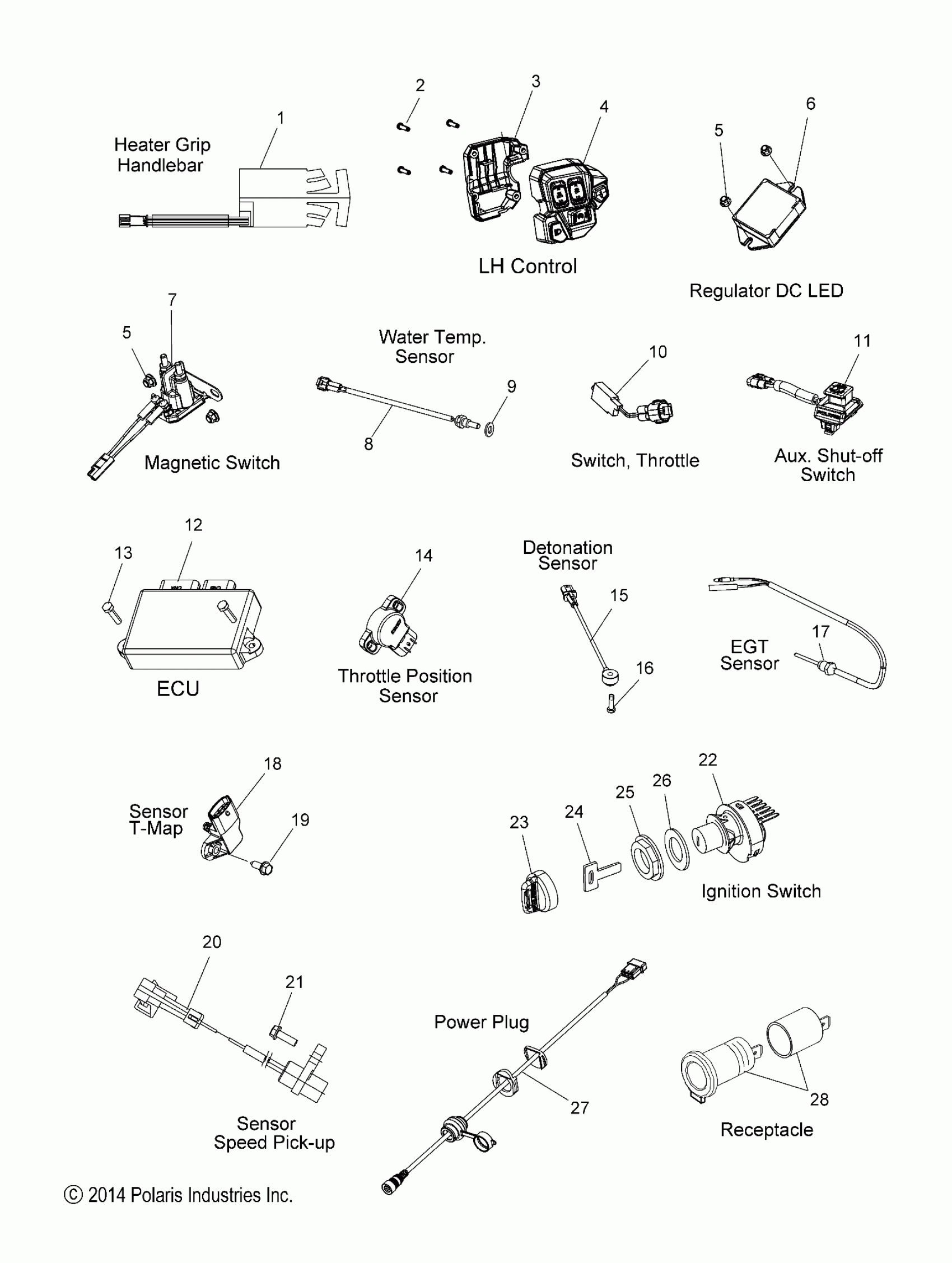

Polaris 600 SWITCHBACK ADVENTURE (R02) - S17DDE6PSL ELECTRICAL, SWITCHES, SENSORS and COMPONENTS - S17DDE6PSL (49SNOWELECT15SBADV6) Diagram

GRIP, HEATER, LO/MED/HI, LH

2413075

$59.99

GRIP, HEATER, LO/MED/HI, RH

2413076

$59.99

SCREW

7518227

$3.99

COVER, CONTROL, LH

5450542

$13.75

ASM., LH CONTROL

2010409

$199.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

REGULATOR, DC LED

4015642

$329.99

SWITCH, MAGNETIC

4015817

$52.60

SENSOR, WATER TEMP

4012115

$64.99

WASHER, COPPER

7556357

$3.99

SWITCH, THROTTLE

4015245

$99.99

SWITCH., AUX. SHUTOFF

4015321

$94.99

ECU, DC/SDI AS, 32MHZ2T

4014920

$834.99

Screw

7516823

$3.19

SENSOR, THROTTLE POSITION

3131751

$259.03

SENSOR, DETONATION

2410369

$76.89

SCREW

7517262

$5.59

SENSOR, EGT

4013133

$264.99

Sensor, T-Map

2410422

Unavailable

Screw

7512098

$1.59

SENSOR, SPEED PICKUP LG

2412968

$116.17

Screw

7518280

$1.49

SWITCH, KEY, 3 POSITION [INCL. 23-25]

4012165

$104.24

KEY SWITCH KEY COVER

5433534

$12.35

BLANK, KEY, SERIES 2000, 2100, 6700, 6800 [NOTE:YOUR KEY CAN BE DUPLICATED ONLY BY OBTAINING A KEY BLANK FROM POLARIS AND HAVING IT CUT BY MATING IT WITH YOUR EXISTING KEY]

4010278

Unavailable

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

WASHER, NYLON

7556327

$3.19

ASM., RCA PWR PLUG, W/COVER, AC

2411708

$40.46

RECEPTACLE

4010638

$24.27
