- 600 RMK 144/155 ALL OPTIONS (R02) - S16CK6/CM6
SUSPENSION, TORQUE ARM, REAR (144 Inch) - S16CK6 ALL OPTIONS (49SNOWTORQUEREAR14600RMK)

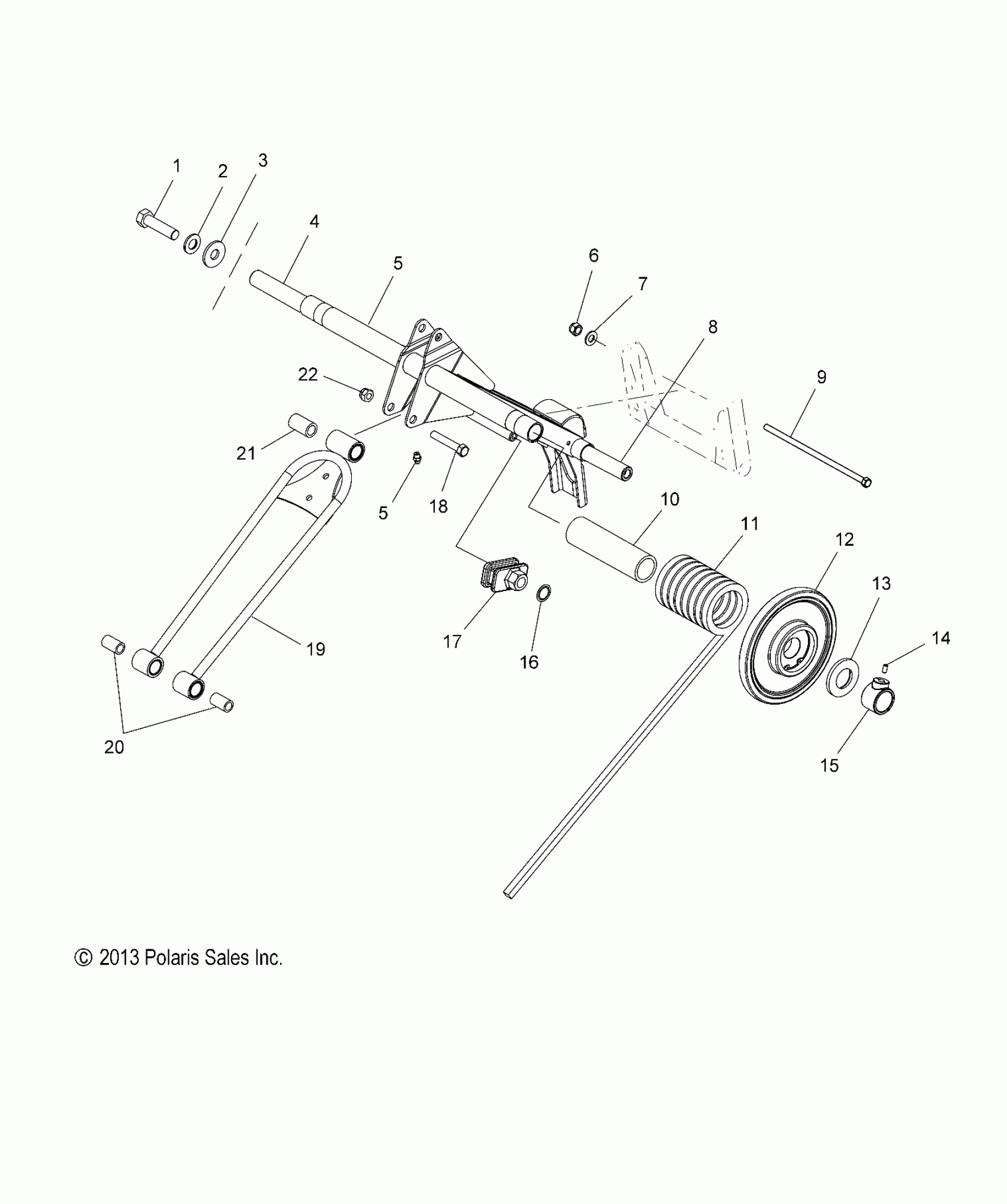

Polaris 600 RMK 144/155 ALL OPTIONS (R02) - S16CK6/CM6 SUSPENSION, TORQUE ARM, REAR (144 Inch) - S16CK6 ALL OPTIONS (49SNOWTORQUEREAR14600RMK) Diagram
#
Description
Price
1
SCREW
7518005
$3.19
2
Washer, Spring Lock
7552603
$1.49
3
Washer, Flat
7555893
$1.49
4
SHAFT
5133987
$69.99
5
FITTING-LUBRICATION 1/4-28
7080424
$4.79
5
ARM, REAR TORQUE, BLACK
1542960-329
$319.99
5
FITTING-LUBRICATION 1/4-28
7080424
$4.79
5
ARM, REAR TORQUE, BLACK
1542960-329
$319.99
6
Nut, Nylok
7547217
$3.99
7
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
8
SHAFT
5333997
$94.99
9
SCREW
7517908
$10.39
10
SLEEVE-TORSION SPRING RMK
5434337
$7.99
11
SPRING, TORSION, .359/77, BLACK, LH [OPT]
7041629-067
Unavailable
11
SPRING, TORSION, .359/77, BLACK, RH [OPT]
7041630-067
Unavailable
11
SPRING-TORSION,.347SQ/77�LHBLK [OPT]
7041627-067
$135.54
11
SPRING-TORSION,.347/77�,RH,BLK [OPT]
7041628-067
$135.54
11
SPRING, TORSION, .375/77, BLK, LH [STD]
7041942-067
Unavailable
11
SPRING, TORSION, .375/77, BLK, RH [STD]
7041943-067
Unavailable
12
RET.RING-TRUARC
7718407
$4.79
12
BEARING
3514303
$11.99
12
ASM., WHEEL, BOGIE
1590328
$48.56
13
WASHER, SPRING
7571605
$6.39
14
SCREW, SOCKET SET
7518262
$3.99
15
SPACER
5135424
$19.99
16
CLIP-PUSH ON
7080394
$2.39
17
ROLLER-SPRING,ADJ,SQUARE,X10
5432983
$9.70
18
Screw
7515415
$1.49
19
ASM., ROD, SHOCK [INCL. BUSHINGS]
1542170
$106.65
19
BUSHING
5435722
$5.59
19
BUSHING
5435723
$5.59
20
BUSHING
5135043
$6.39
21
BUSHING
5134601
$15.99
22
NUT-3/8-24 FLG LOC
7547263
$3.19
