- 600 RMK 144/155 ALL OPTIONS (R02) - S16CK6/CM6
SUSPENSION, RAIL MOUNTING (155 Inch) - S16CM6 ALL OPTIONS (49SNOWSUSPRAIL13155RMK)

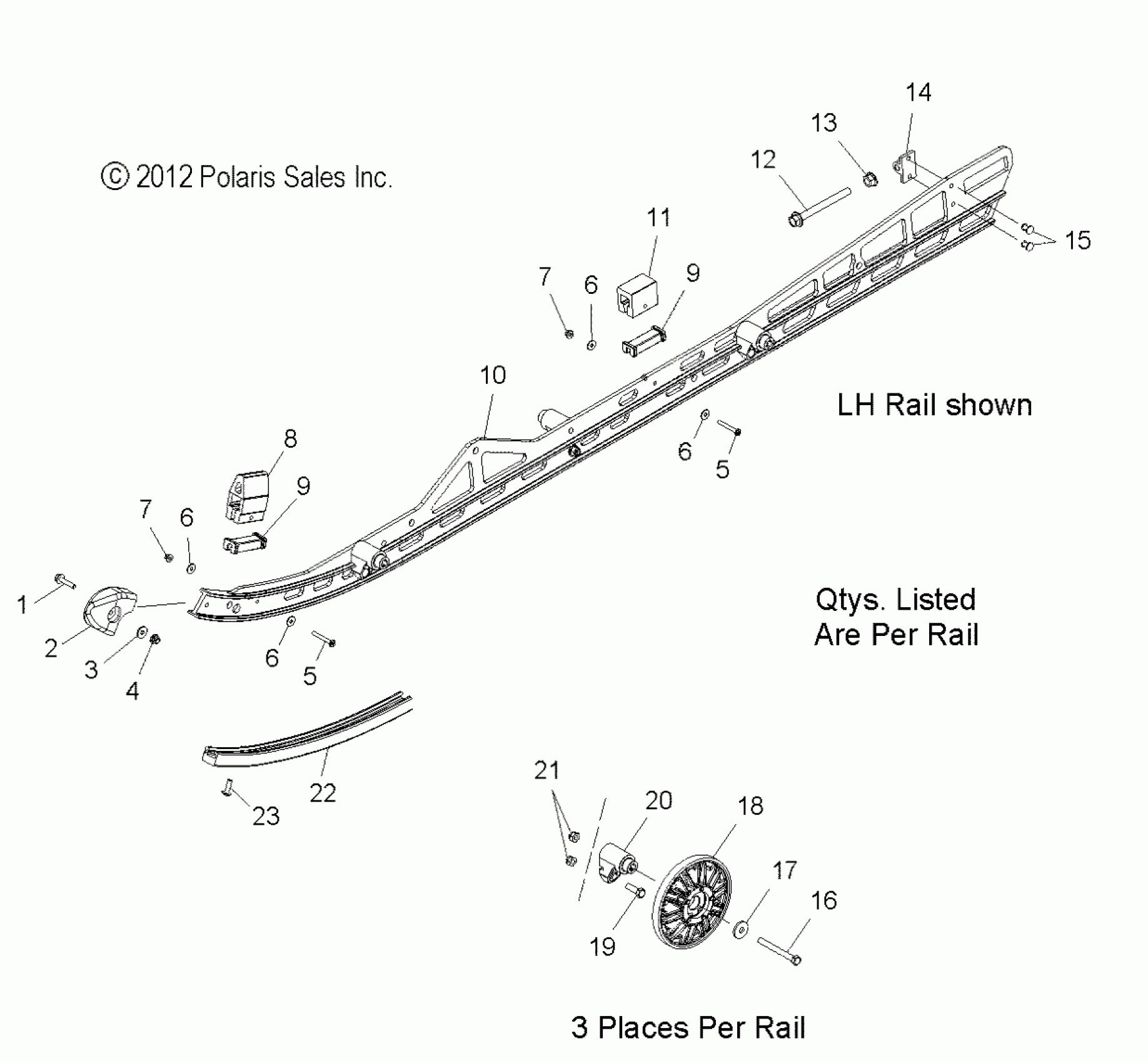

Polaris 600 RMK 144/155 ALL OPTIONS (R02) - S16CK6/CM6 SUSPENSION, RAIL MOUNTING (155 Inch) - S16CM6 ALL OPTIONS (49SNOWSUSPRAIL13155RMK) Diagram
#
Description
Price
1
SCREW
7518993
$2.39
2
CAP, RAIL TIP
5438374
$20.22
3
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
5
SCREW
7518951
$3.19
5
SCREW
7518951
$3.19
6
WASHER
7556470
$2.39
6
WASHER
7556470
$2.39
6
WASHER
7556470
$2.39
6
WASHER
7556470
$2.39
7
NUT, FLANGE, NYLOK
7547427
$3.19
7
NUT, FLANGE, NYLOK
7547427
$3.19
8
BUMPER, HOLLOW, TALL
5414323
$12.94
9
LINER-BUMPER
5432946
$9.70
9
LINER-BUMPER
5432946
$9.70
10
ASM., RAIL, BASIC, COIL OVER, 155, RH [INCL. 14,15]
1543302-309
$594.99
10
ASM., RAIL, BASIC, COIL OVER, 155, LH [INCL. 14,15]
1543301-309
$594.99
11
BUMPER, JOUNCE, REAR, COIL-OVER
5521812
$7.99
12
SCREW
7519167
$11.99
13
NUT
7547017
$5.59
14
BLOCK-IDLER BOLT ADJ METRIC
5136570
$34.99
15
RIVET
7621501
$2.39
16
SCREW
7519217
$1.59
17
WASHER, SPRING
7556489
$1.59
18
BEARING [1 PER WHEEL]
3514384
$19.84
18
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
18
ASM., WHEEL, WEB, BLACK
1590434-070
$67.76
19
SCREW
7518952
$3.19
20
BLOCK, WHEEL MOUNT
5631446
$24.27
21
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
22
SLIDER
5521633
$40.46
23
SCREW
7518976
$3.19
