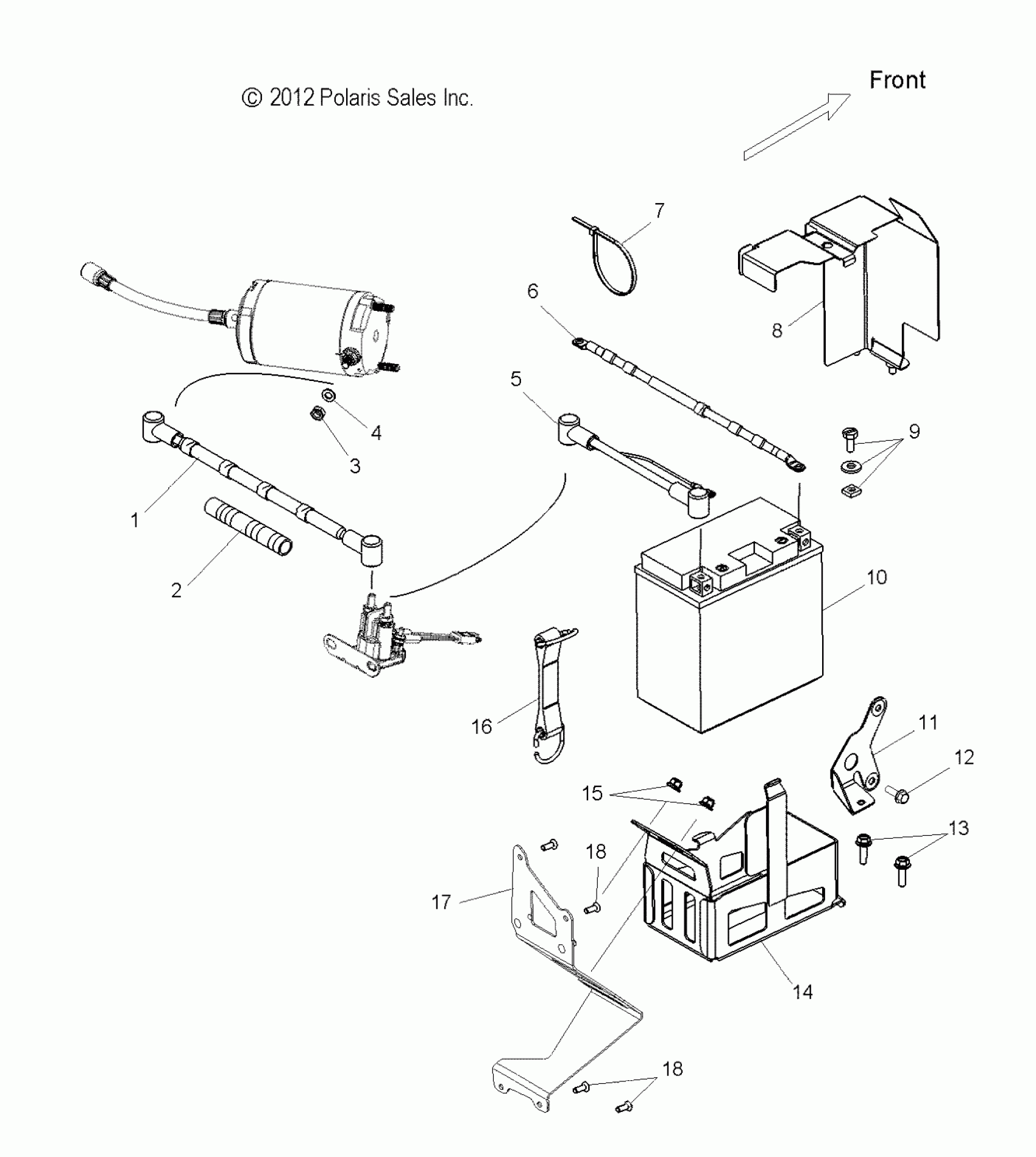

Polaris 600 RMK 144/155 ALL OPTIONS (R02) - S16CK6/CM6 ELECTRICAL, BATTERY and CABLES - S16CK6/CM6 ALL OPTIONS (49SNOWBATTERY13RMK) Diagram

#

Description
Price

1

CABLE, 6 GA., RED [INCL. 2]

4013289

$48.56

1

INSULATOR-CABLE

5410346

$6.39

2

CONDUIT, CONVOLUTED, 100CM

4010051-100

Unavailable

3

NUT

7542105

$3.99

4

WASHER, SPRING LOCK

7552801

$1.59

5

Asm., Cable, Battery/Solenoid

2460393

$36.41

6

CABLE, 6 GA., BLACK

4013290

$48.56

7

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

7

Cable Tie

7080999

$9.59

8

SHIELD, HEAT, BATTERY

5253414

Unavailable

9

BATTERY BOLT KIT

2201357

$11.19

10

BATTERY [SVC]

4013045

$127.99

11

ASM., BRKT., BATTERY BOX, FRONT

1018527

$28.32

12

SCREW

7519243

$3.99

13

SCREW

7518548

$1.59

14

BOX, BATTERY

1017182

$111.33

15

NUT- M8X1.25, FLG, NYLOC-OLIVE D

7547332

$3.99

16

STRAP, RUBBER [DOES NOT INCL. 9]

5410608

$9.70

16

D-Hook

5224468

$9.59

17

ASM., BATTERY BOX BRACKET [155]

1017775

$56.65

17

ASM., BATTERY BOX BRACKET [144]

1017820

$64.75

18

SCREW

7519113

$1.59

18

SCREW

7519113

$1.59
