- 600 INDY/SP ALL OPTIONS (R01) - S17CBA6/CBB6
SUSPENSION, SHOCKS IFS, FT, RT (INDY) - S17CBA6GSA/GSL (49SNOWSHOCKFRONT13600LE)

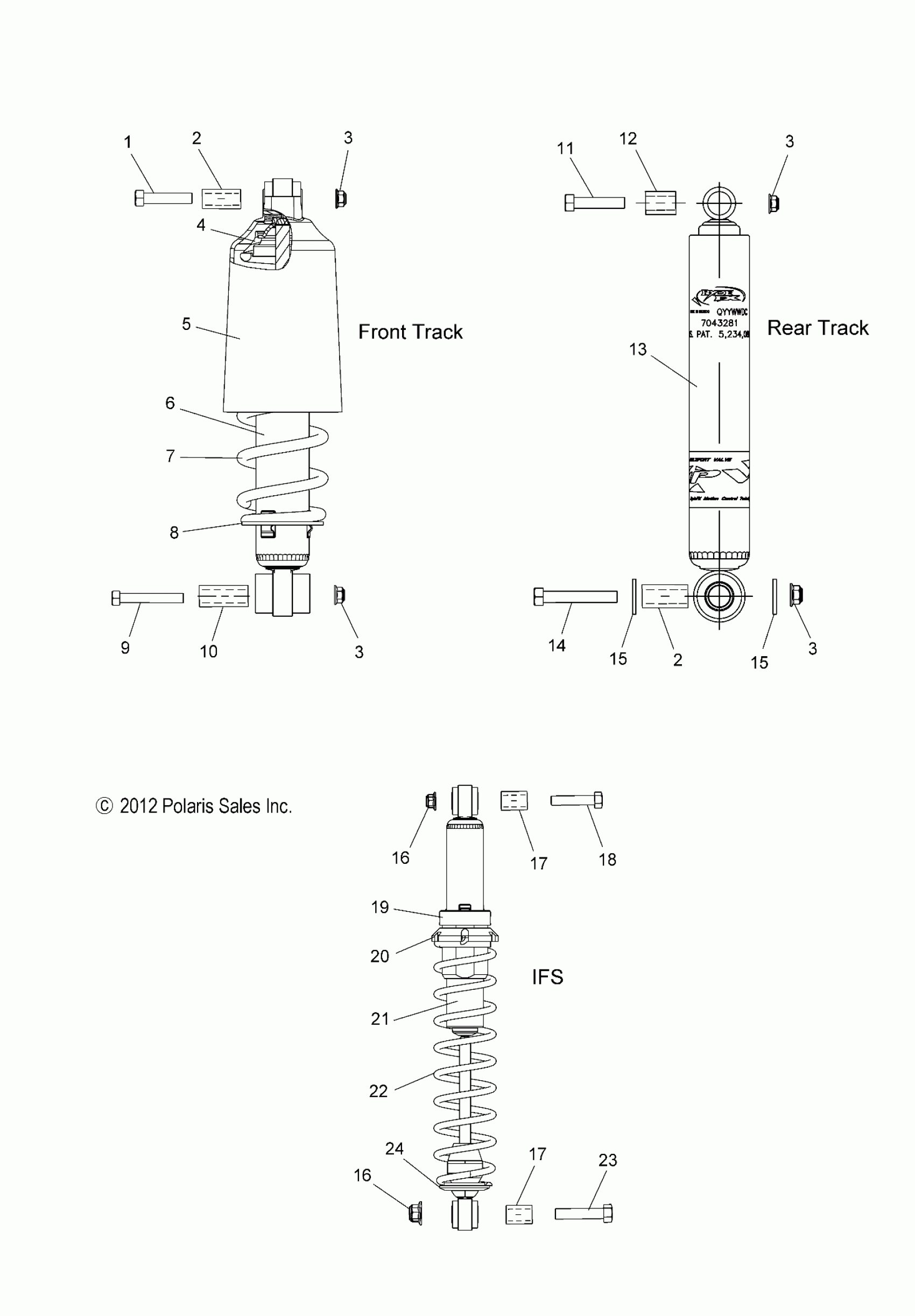

Polaris 600 INDY/SP ALL OPTIONS (R01) - S17CBA6/CBB6 SUSPENSION, SHOCKS IFS, FT, RT (INDY) - S17CBA6GSA/GSL (49SNOWSHOCKFRONT13600LE) Diagram
#
Description
Price
1
Screw
7515433
$1.59
2
SLEEVE
5333905
$15.99
2
SLEEVE
5333905
$15.99
3
NUT-3/8-24 FLG LOC
7547263
$3.19
3
NUT-3/8-24 FLG LOC
7547263
$3.19
3
NUT-3/8-24 FLG LOC
7547263
$3.19
3
NUT-3/8-24 FLG LOC
7547263
$3.19
4
RETAINER, SPRING
5632166
$13.75
5
SHIELD, SPRING
5437525
Unavailable
6
SHOCK, FT, ARVIN MPV
7043825
$329.99
7
SPRING, COMP. BLACK
7043147-067
$64.75
8
RETAINER, SPRING, GABRIEL
5245067
$23.99
9
SCREW
7515417
$4.79
10
SLEEVE
5333906
$15.99
11
BOLT
7512410
Unavailable
12
BUSHING
5010422
$11.99
13
SHOCK, RT, ARVIN MPV
7043281
$171.99
14
BOLT
7518263
$3.99
15
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
15
WASHER-.390X.750X.020-WAVE-Y
7555795
$1.49
16
NUT
7547423
$3.99
16
NUT
7547423
$3.99
17
BUSHING
5137360
$3.99
17
BUSHING
5137360
$3.99
18
SCREW
7518941
$3.99
19
RETAINER, SPRING, BODY, THD.
1500063
$44.51
20
RING, SPRING, PRELOAD ADJ.
5431734
$52.60
21
SHOCK, IFS, MPV
7043767
$214.99
22
SPRING, COMP., IFS, WHT.
7041552-133
$101.65
23
SCREW
7518971
$6.39
24
RETAINER, SPRING, SLOTTED, CAST
5630580
Unavailable
