- 600 INDY 129 XCR SC SELECT (R03) - S20EKL6PS
CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S20EKL6PS (601350)

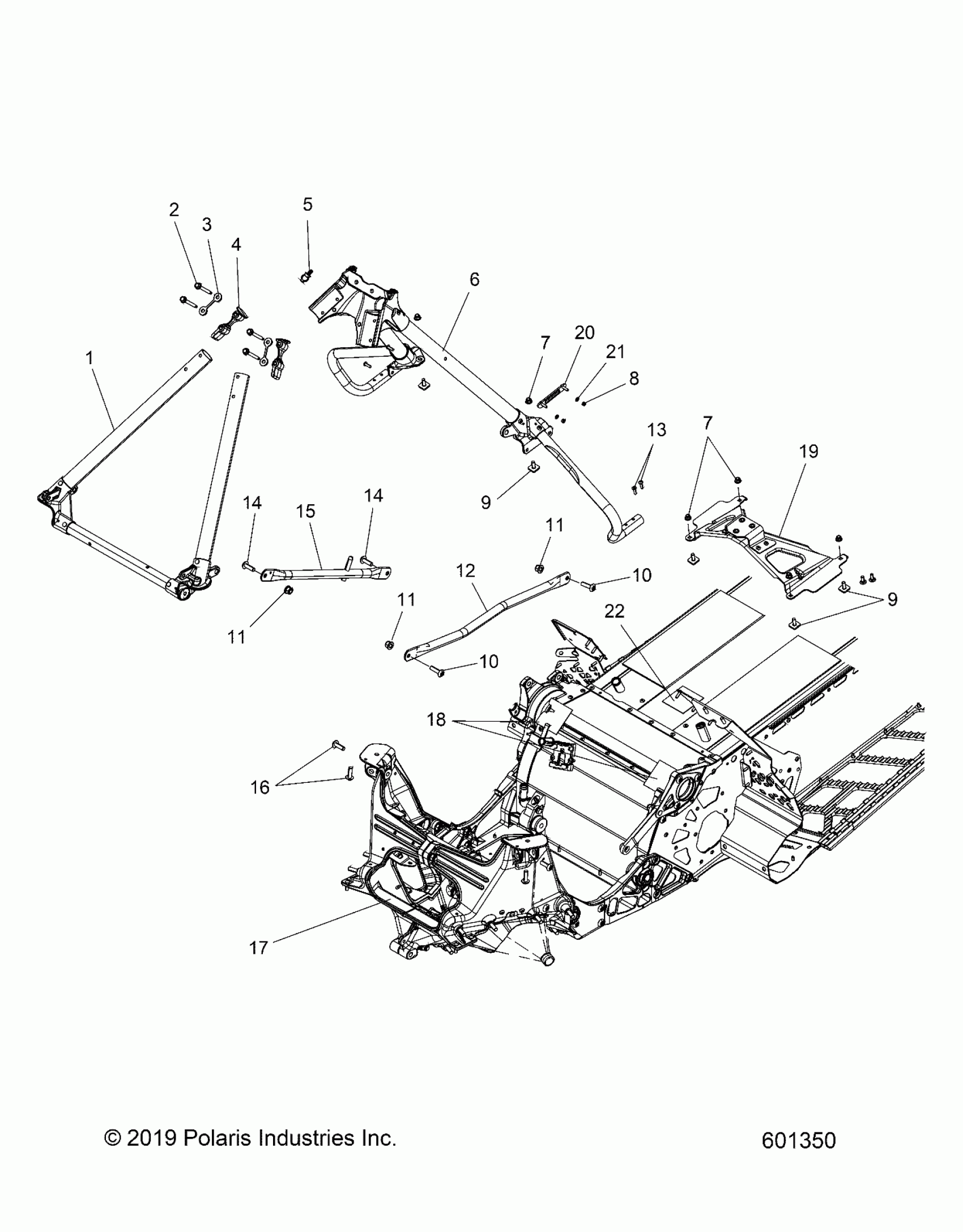

Polaris 600 INDY 129 XCR SC SELECT (R03) - S20EKL6PS CHASSIS, CHASSIS ASM. and OVER STRUCTURE - S20EKL6PS (601350) Diagram
#
Description
Price
1
ASM-FRAME, TUBULAR FRONT ALUM
1024052
$149.99
2
SCR-HXFL-M6X1X50 10.9 ZODP30DP
7519967
$4.99
3
SHIM-TUBE, CAST
5633083
$6.99
4
SPACER, TUBE CAST
5633122
$9.59
5
CLIP FIR-TREE,DIA6-33MM
7081496
$4.79
6
ASM., TUBE FRAME, REAR
1021007
$779.99
7
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
7
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
$3.99
8
NUT-M5X.8,HX NYL-Y
7546601
$1.49
9
SCR-SPCL M6X1.0X16 8.8 ZC
7520514
$3.99
9
SCR-SPCL M6X1.0X16 8.8 ZC
7520514
$3.99
10
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
10
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
11
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
11
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
11
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
12
TUBE-BRACE LH BLK
5337391-329
$34.99
13
RIVET-3/16-.090-.290
7661637
$1.49
14
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
14
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
15
TUBE BRACE RH BLK
1019861-329
Unavailable
16
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
17
ASM-CHASSIS, 600/800 129 BLK [INCL. BULKHEAD]
1024853-067
Unavailable
17
ASM-TUNNEL 129 BLK [INCL. TUNNEL COOLER]
1024852-067
$1,534.99
17
ASM-CHASSIS, 600/800 129 RED [INCL. BULKHEAD]
1024853-293
$2,809.99
17
ASM-TUNNEL 129 RED [INCL. TUNNEL COOLER]
1024852-293
Unavailable
17
ASM-CHASSIS, 600/800 129 GHOST GRAY [INCL. BULKHEAD]
1024853-728
Unavailable
17
ASM-TUNNEL 129 GHOST GRAY [INCL. TUNNEL COOLER]
1024852-728
Unavailable
18
PAD, 2.5"X2.5"
5814187
$4.03
19
BRACKET, FUEL TANK, MBLK
1021376-458
$111.33
20
ASM-STUD PLATE 5MM
1023672
$12.79
21
WSHR-5.3X10X1 ZB
7556071
$4.79
22
PAD-40X63.5
5814353
$9.70
