- 600 AXYS PRO RMK 155 ALL OPTIONS (R01) - S17EFK6
SUSPENSION, SHOCK, REAR TRACK, W/RES. - S17EFK6 (600055)

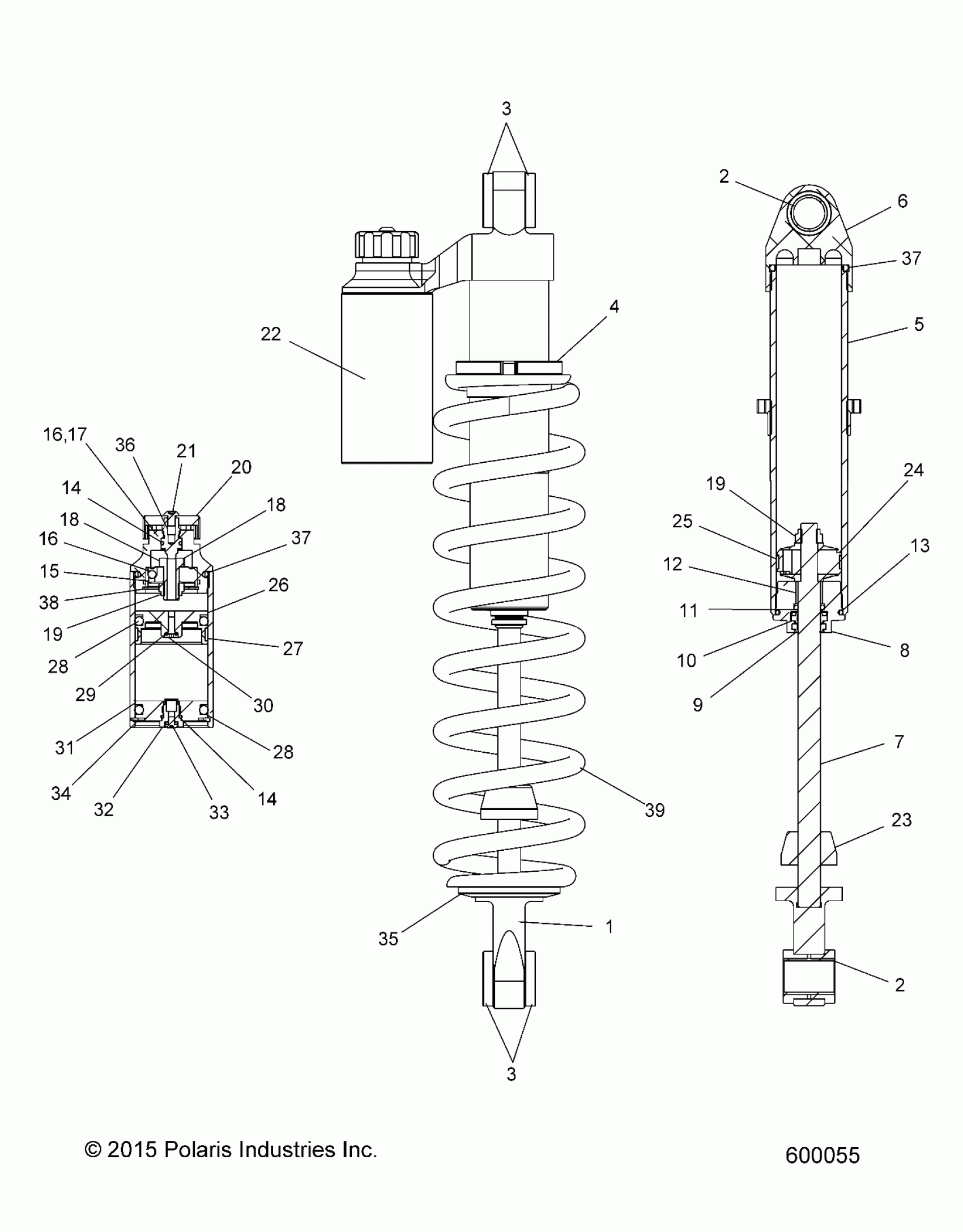

Polaris 600 AXYS PRO RMK 155 ALL OPTIONS (R01) - S17EFK6 SUSPENSION, SHOCK, REAR TRACK, W/RES. - S17EFK6 (600055) Diagram
#
-
SHOCK, RT
7044301
$709.79
1
LOOP, SHAFT
1800726
$137.60
2
SLEEVE
1800405
$28.32
2
SLEEVE
1800405
$28.32
3
BUSHING
1800406
$5.65
3
BUSHING
1800406
$5.65
4
NUT, SPRING RETAINER
1800046
$36.41
5
BODY, RT, BLACK
1800729
$144.99
6
PIGGYBACK, 90DEGREE
1800413
$129.99
7
SHAFT
1800730
$154.99
8
SEAL HEAD
1800403
$140.38
9
SEAL, WIPER
1800295
$12.94
10
SEAL, U-CUP
1800294
$24.27
11
O-RING
1800095
$1.49
12
BUSHING, SHAFT
1800292
$11.99
13
O-RING, BODY
1800027
$2.02
13
O-RING, BODY
1800027
$2.02
14
O-Ring, Stud
1800215
$7.68
14
O-Ring, Stud
1800215
$7.68
15
PISTON, CLICKER
1800353
$109.99
16
BALL, D-TENT
1800127
$6.39
17
SPRING-COMP .025X.3, 40.5#
1800128
$10.39
18
BOLT, CLICKER
1800354
$15.99
18
BOLT, CLICKER
1800354
$15.99
19
NUT, CRIMP
1800031
$3.99
19
NUT, CRIMP
1800031
$3.99
20
KNOB, CLICKER, BLK
1800418
$89.03
21
SCREW, BUTTON HEAD
1800357
$3.19
22
BODY, RESERVOIR
1800419
$93.08
23
BUMPER, JOUNCE
1800462
$32.37
24
PISTON, CONVEX, .063 BLEED
1800001
$125.46
25
BAND, WEAR
1800297
$34.99
26
PISTON, RESERVOIR
1800355
$75.99
27
BAND, PISTON
1800185
$39.99
28
O-RING
1800184
$5.65
28
O-RING
1800184
$5.65
29
O-RING, BLEED SCREW
1800210
$1.59
30
SCREW, BLEED
1800043
$5.59
31
CAP, END, RESERVOIR, CLEAR
1800420
$36.41
32
VALVE, NEEDLE
1800329
$39.99
33
SCREW, BUTTON HEAD
1800109
$3.19
34
RING, SNAP
1800159
$5.59
35
RETAINER, SPRING
1800116
$60.70
36
STUD, CLICKER
1800352
$31.99
37
O-RING BODY LOOP
1800030
$2.02
37
O-RING BODY LOOP
1800030
$2.02
38
RING, SNAP, CLICKER
1800359
$3.86
39
SPRING, COMPRESSION, 210# BLACK
7043714-458
$99.99
