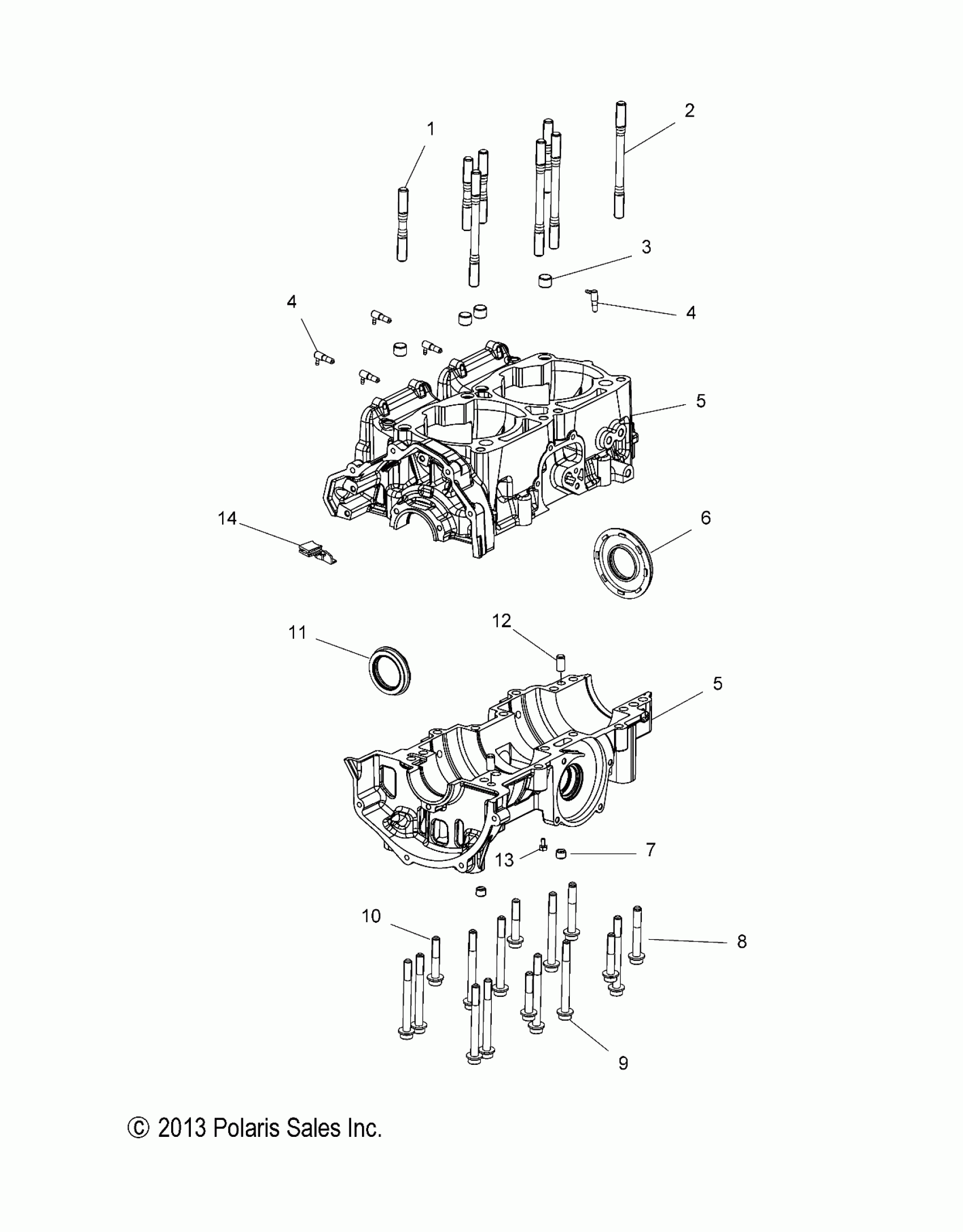

Polaris 600 AXYS PRO RMK 155 ALL OPTIONS (R01) - S17EFK6 ENGINE, CRANKCASE - S17EFK6 ALL OPTIONS (49SNOWCRANKCASE136LE) Diagram

Description

Price

STUD, CYLINDER, 81MM

5140059

$19.99

STUD, CYLINDER, 130MM

5140058

$12.79

DOWEL, HOLLOW

7663008

$5.27

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

KIT, CRANKCASE [INCL. 1,2,4,7-10,12-14]

2205650

$1,284.99

KIT, CRANKCASE [INCL. 1,2,4,7-10,12-14]

2205650

$1,284.99

SEAL, FLANGE

5415026

$29.99

PLUG

7052337

$3.22

SCREW, TXFH M8x55

7517785

$9.59

SCREW, SHFL M8x80

7517784

$8.79

SCREW, SHFL M8x45

7517786

$6.39

SEAL, FLANGED, MAG

5414096

$40.46

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

SCREW

7517577

$3.99

RETAINER, WIRE

5437349

$9.70
