- 550 WIDETRAK LX ALL OPTIONS (R03) - S16SU5BEB/BEL/BSL
DRIVE TRAIN, SHIFT LINKAGE - S16SU5BEB/BEL/BSL (600289)

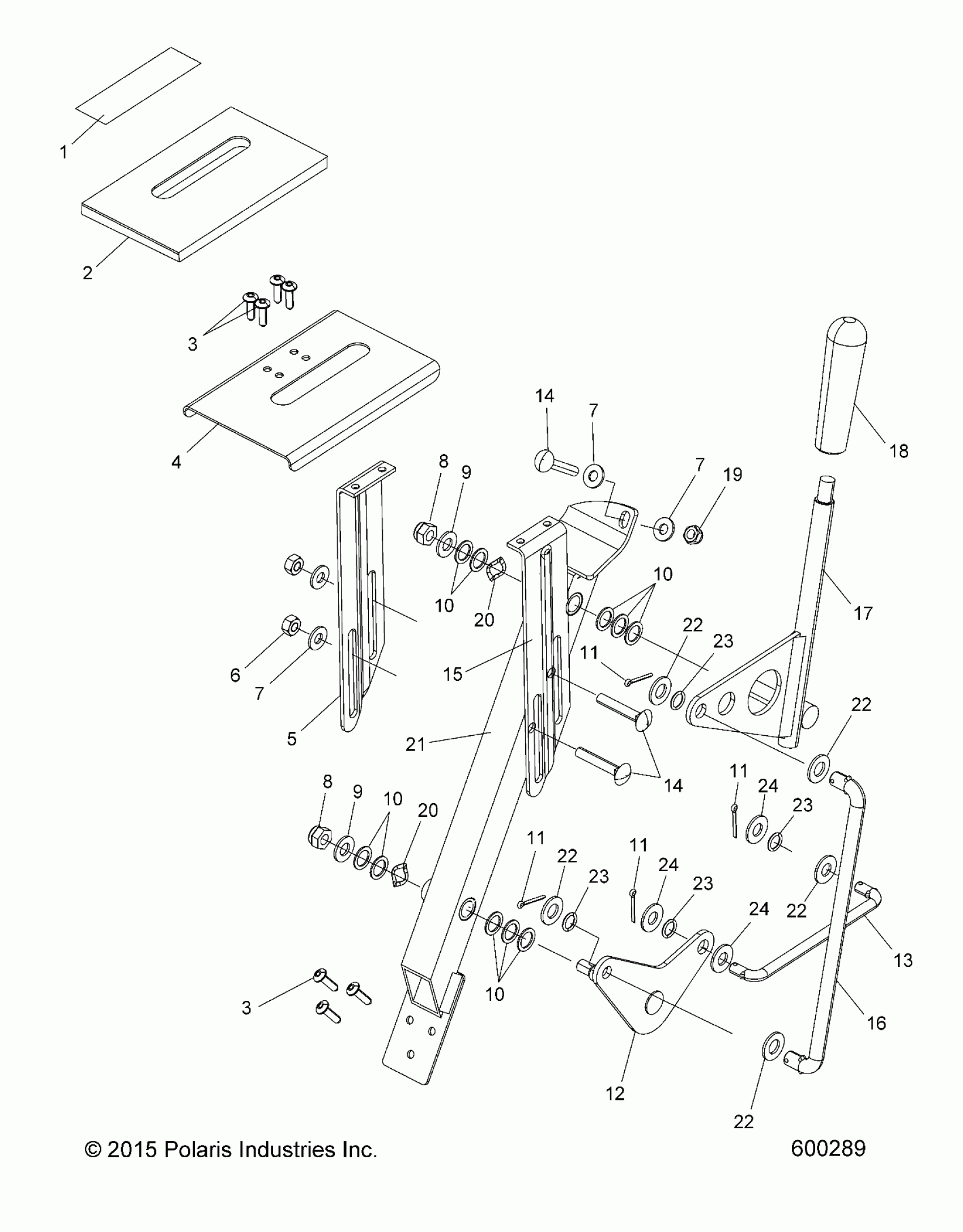

Polaris 550 WIDETRAK LX ALL OPTIONS (R03) - S16SU5BEB/BEL/BSL DRIVE TRAIN, SHIFT LINKAGE - S16SU5BEB/BEL/BSL (600289) Diagram
#
Description
Price
1
DECAL, SHIFT PATTERN, PERC
7182355
$9.99
2
FOAM, INDICATOR PLATE
5813233
$9.70
3
RIVET-3/16-.090-.290
7661637
$1.49
3
RIVET-3/16-.090-.290
7661637
$1.49
4
PLATE, INDICATOR
5243204
$28.32
5
SUPPORT, INDICATOR PLATE, RH
5241897
$24.27
6
Nut
7542101
$3.99
7
Washer, Flat
7558301
$1.49
7
Washer, Flat
7558301
$1.49
7
Washer, Flat
7558301
$1.49
8
NUT-5/16-18 NYLOK-Y
7542324
$1.49
8
NUT-5/16-18 NYLOK-Y
7542324
$1.49
9
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
9
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
10
WASHER, FLAT
7555820
$3.99
10
WASHER, FLAT
7555820
$3.99
10
WASHER, FLAT
7555820
$3.99
10
WASHER, FLAT
7555820
$3.99
11
PIN, COTTER
7661900
$3.19
11
PIN, COTTER
7661900
$3.19
11
PIN, COTTER
7661900
$3.19
11
PIN, COTTER
7661900
$3.19
12
PLATE, PIVOT, LOWER
1012558
$44.51
13
ROD, LINKAGE, LOWER
5224770
$24.27
14
BOLT, CARRIAGE
7517931
$2.39
14
BOLT, CARRIAGE
7517931
$2.39
15
SUPPORT, INDICATOR PLATE, LH
5241896
$24.27
16
ROD, LINKAGE, UPPER
5224769
$32.37
17
ROD, SHIFT LEVER
1341250
$64.75
18
HANDLE, SHIFT
5132004
Unavailable
19
Nut, Nylok
7542122
$1.49
20
Washer, Wave
7571619
$7.19
20
Washer, Wave
7571619
$7.19
21
SUPPORT, SHIFT LEVER ROD
1012559
$84.98
22
WASHER, FLAT
7556188
$3.19
22
WASHER, FLAT
7556188
$3.19
22
WASHER, FLAT
7556188
$3.19
22
WASHER, FLAT
7556188
$3.19
22
WASHER, FLAT
7556188
$3.19
23
O RING-.364X.504X.07
5410542
Unavailable
23
O RING-.364X.504X.07
5410542
Unavailable
23
O RING-.364X.504X.07
5410542
Unavailable
23
O RING-.364X.504X.07
5410542
Unavailable
24
WASHER
7555954
$4.79
24
WASHER
7555954
$4.79
24
WASHER
7555954
$4.79
