- 550 WIDETRAK LX ALL OPTIONS (R03) - S16SU5BEB/BEL/BSL
DRIVE TRAIN, GEARCASE - S16SU5BEB/BEL/BSL (6000122)

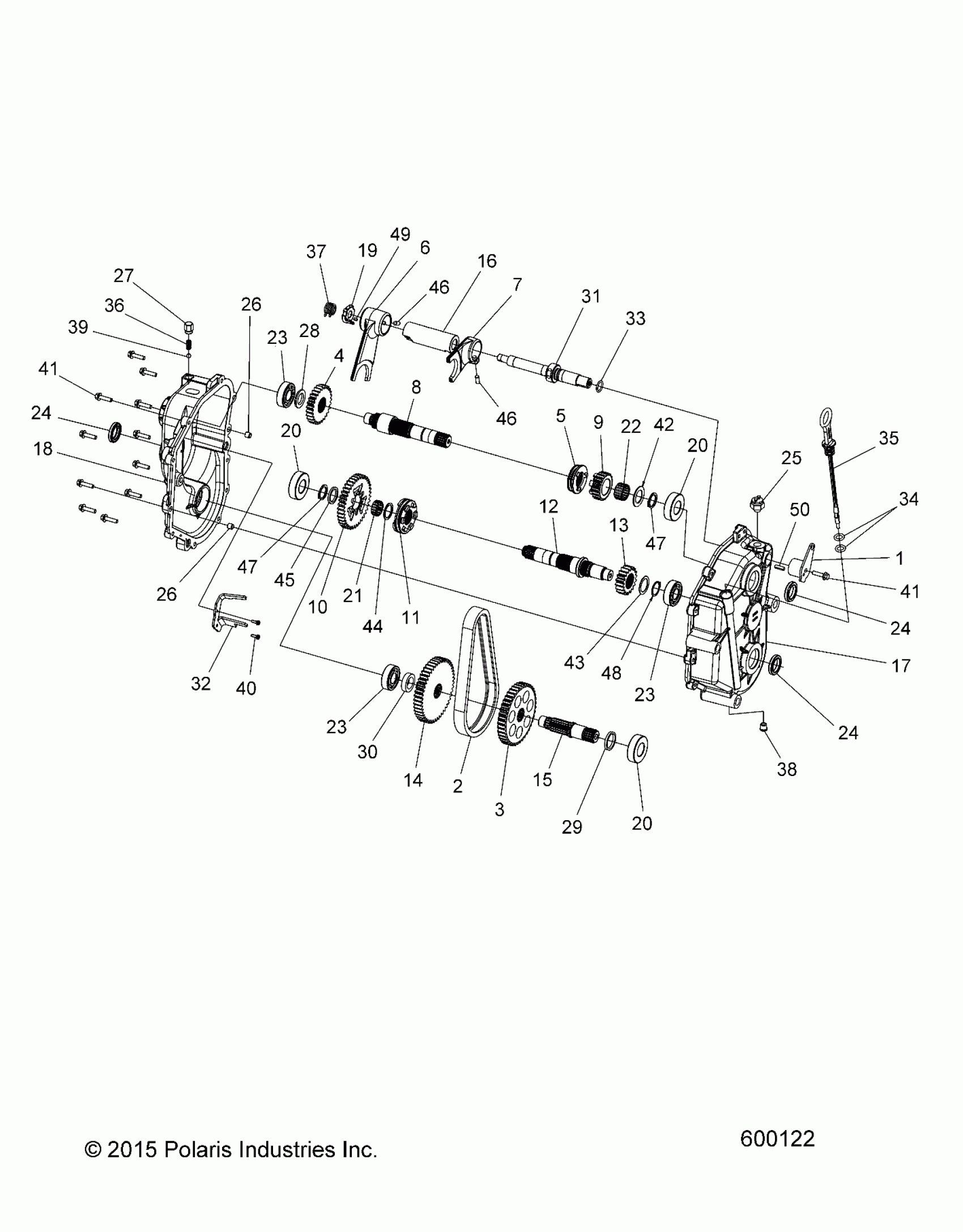

Polaris 550 WIDETRAK LX ALL OPTIONS (R03) - S16SU5BEB/BEL/BSL DRIVE TRAIN, GEARCASE - S16SU5BEB/BEL/BSL (6000122) Diagram
#
-
ASM., GEARCASE, BASIC [INCL. 1-50]
1333414
$2,574.99
1
INDEX, SHIFT
1016010
$43.56
2
CHAIN [.75x66P]
3221113
$124.99
3
SPROCKET, 41T
3222101
$40.46
4
GEAR, 27T
3233419
$119.99
5
DOG, ENGAGEMENT [NOTE: MUST ORDER WITH REF. 9]
3233470
$91.99
6
FORK, SHIFT
3233503
$113.32
7
FORK, SHIFT, HIGH
3233505
Unavailable
8
SHAFT, INPUT
3233506
$227.52
9
SPROCKET, 19T [NOTE: MUST ORDER WITH REF. 5]
3233509
$149.99
10
GEAR, 39T
3233511
$134.99
11
DOG, ENGAGEMENT, L/R
3233512
$109.99
12
SHAFT, REVERSE
3233514
$149.99
13
GEAR, 18T
3233515
Unavailable
14
GEAR, 47T
3233518
$159.99
15
SHAFT, OUTPUT
3233521
$179.99
16
SHIFT DRUM, WIDETRAK
3234120
$175.99
17
GEARCASE, LH
3234174
$364.99
18
GEARCASE, RH
3234474
$294.99
19
INDEX, SHIFT
3235732
$79.99
20
BEARING, W/O SEAL
3514304
$15.99
20
BEARING, W/O SEAL
3514304
$15.99
20
BEARING, W/O SEAL
3514304
$15.99
21
BEARING-NEEDLE, CAGE
3514589
$6.39
22
BEARING-NEEDLE, CAGE
3514591
$19.99
23
BEARING, BALL
3514594
$6.39
23
BEARING, BALL
3514594
$6.39
23
BEARING, BALL
3514594
$6.39
24
SEAL, DUAL LIP
3610134
$49.99
24
SEAL, DUAL LIP
3610134
$49.99
24
SEAL, DUAL LIP
3610134
$49.99
25
SWITCH, INDICATOR
4110062
$32.37
26
KNOCK, PIPE
5135952
$6.46
26
KNOCK, PIPE
5135952
$6.46
27
SPACER
5135971
$6.39
28
SPACER
5135971
$6.39
29
SPACER
5135972
$7.99
30
SPACER
5135973
$7.99
31
SHAFT, SHIFT, LOW MAP
5136984
$84.98
32
DEFLECTOR, OIL
5251122
$15.48
33
O-RING
5410440
$4.84
34
O-RING
5410675
$1.60
35
STICK, OIL LEVEL INDICATOR
5438124
$44.99
36
SPRING, DETENT SHIFTER
7041483
$40.46
37
SPRING, TORSION, W/T
7043326
$29.99
38
PLUG
7052472
Unavailable
39
BALL DETENT
7080310
$5.99
40
SCREW
7518784
$2.39
41
SCREW
7518785
$2.39
41
SCREW
7518785
$2.39
42
WASHER, THRUST
7556431
Unavailable
43
WASHER
7556432
$4.79
44
WASHER, THRUST
7556433
Unavailable
45
WASHER, THRUST
7556434
$10.39
46
PIN, DOWEL
7661957
$2.39
46
PIN, DOWEL
7661957
$2.39
47
RING, RETAINING
7710602
$3.19
47
RING, RETAINING
7710602
$3.19
48
RING, RETAINING
7710603
$2.39
49
KEY
7710608
$3.19
50
KEY
7710609
$3.19
