- 550 WIDETRAK/LX ALL OPTIONS (R02) - S17SJA5B
ENGINE, PISTON and CRANKSHAFT - S17SJA5B ALL OPTIONS (4997239723C12)

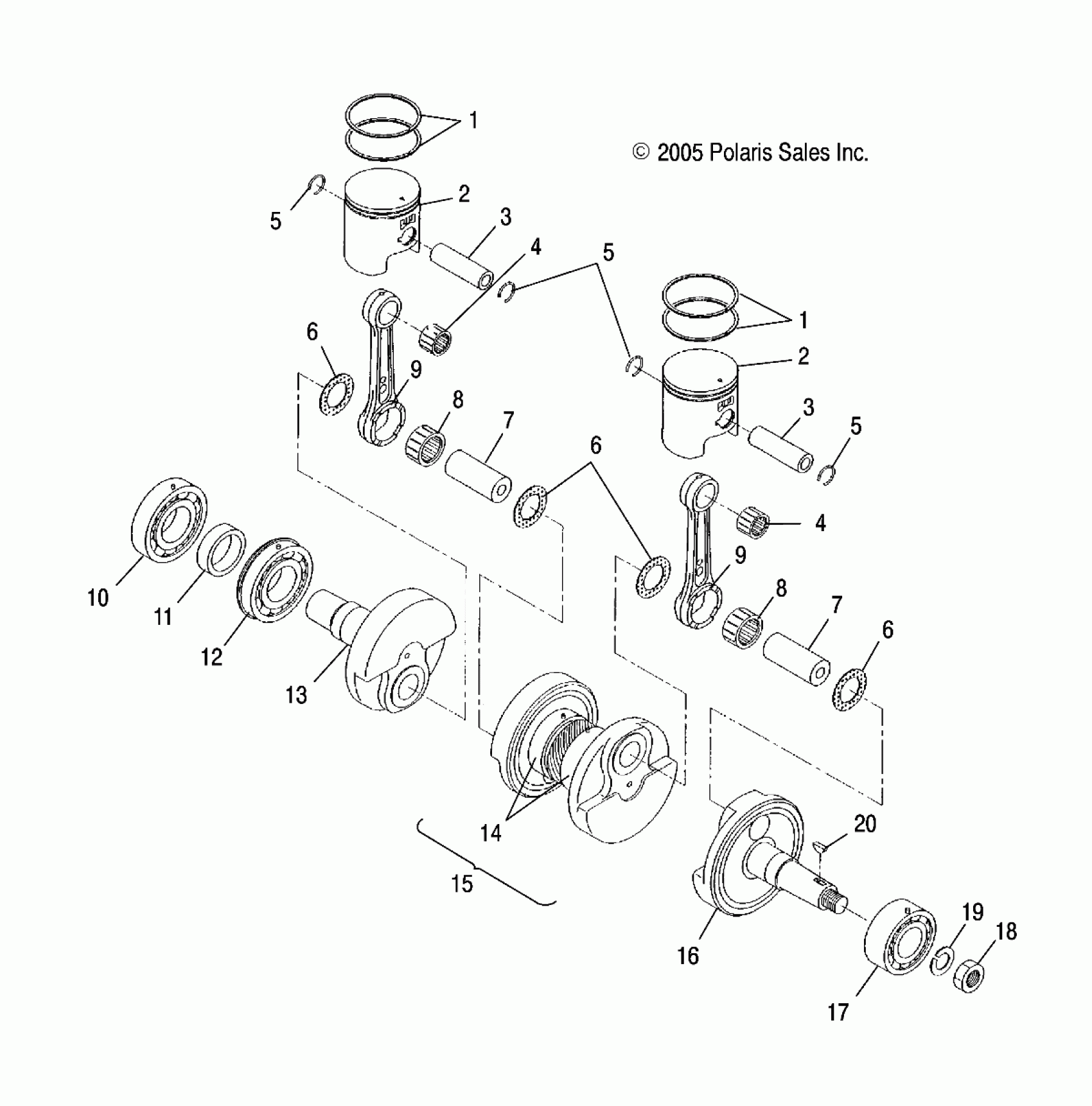

Polaris 550 WIDETRAK/LX ALL OPTIONS (R02) - S17SJA5B ENGINE, PISTON and CRANKSHAFT - S17SJA5B ALL OPTIONS (4997239723C12) Diagram
#
Description
Price
1
RING, PISTON
3090276
Unavailable
1
RING, PISTON
3090276
Unavailable
2
PISTON, SET [INCL. 1,5]
3090407
$152.37
2
PISTON, SET [INCL. 1,5]
3090407
$152.37
3
Pin, Piston
3083838
$27.99
3
Pin, Piston
3083838
$27.99
4
BEARING, END, SMALL
3083216
$16.57
4
BEARING, END, SMALL
3083216
$16.57
5
Clip, Piston Pin
3084167
$6.39
5
Clip, Piston Pin
3084167
$6.39
5
Clip, Piston Pin
3084167
$6.39
6
SPACER, CRANK PIN
3083277
$15.99
6
SPACER, CRANK PIN
3083277
$15.99
6
SPACER, CRANK PIN
3083277
$15.99
7
CRANK PIN 2
3083456
Unavailable
7
CRANK PIN 2
3083456
Unavailable
8
BEARING, END, LARGE
3086390
$1,634.99
8
BEARING, END, LARGE
3086390
$1,634.99
9
ROD, CONNECTING
3240083
$1,634.99
9
ROD, CONNECTING
3240083
$1,634.99
10
BEARING, BALL
3085754
$64.99
11
SPACER
3085677
$11.99
12
BEARING, BALL
3085753
$64.99
13
CRANKSHAFT 3, PTO SIDE
3089484
$409.99
14
BEARING, BALL
3084586
$44.99
15
CRANKSHAFT 2, CENTER [INCL. 7]
3085674
$694.99
16
ASM., CRANKSHAFT [INCL. 6-17]
3090385
Unavailable
16
CRANKSHAFT 1, MAG SIDE
3087177
$529.99
17
BEARING, BALL
3084681
Unavailable
18
NUT
3083093
$19.99
19
WASHER, SPRING
3083094
$3.17
20
KEY, WOODRUFF
3081543
$12.94
