- 550 WIDETRAK/LX ALL OPTIONS (R02) - S17SJA5B
CHASSIS, TUNNEL - S17SJA5B ALL OPTIONS (600288)

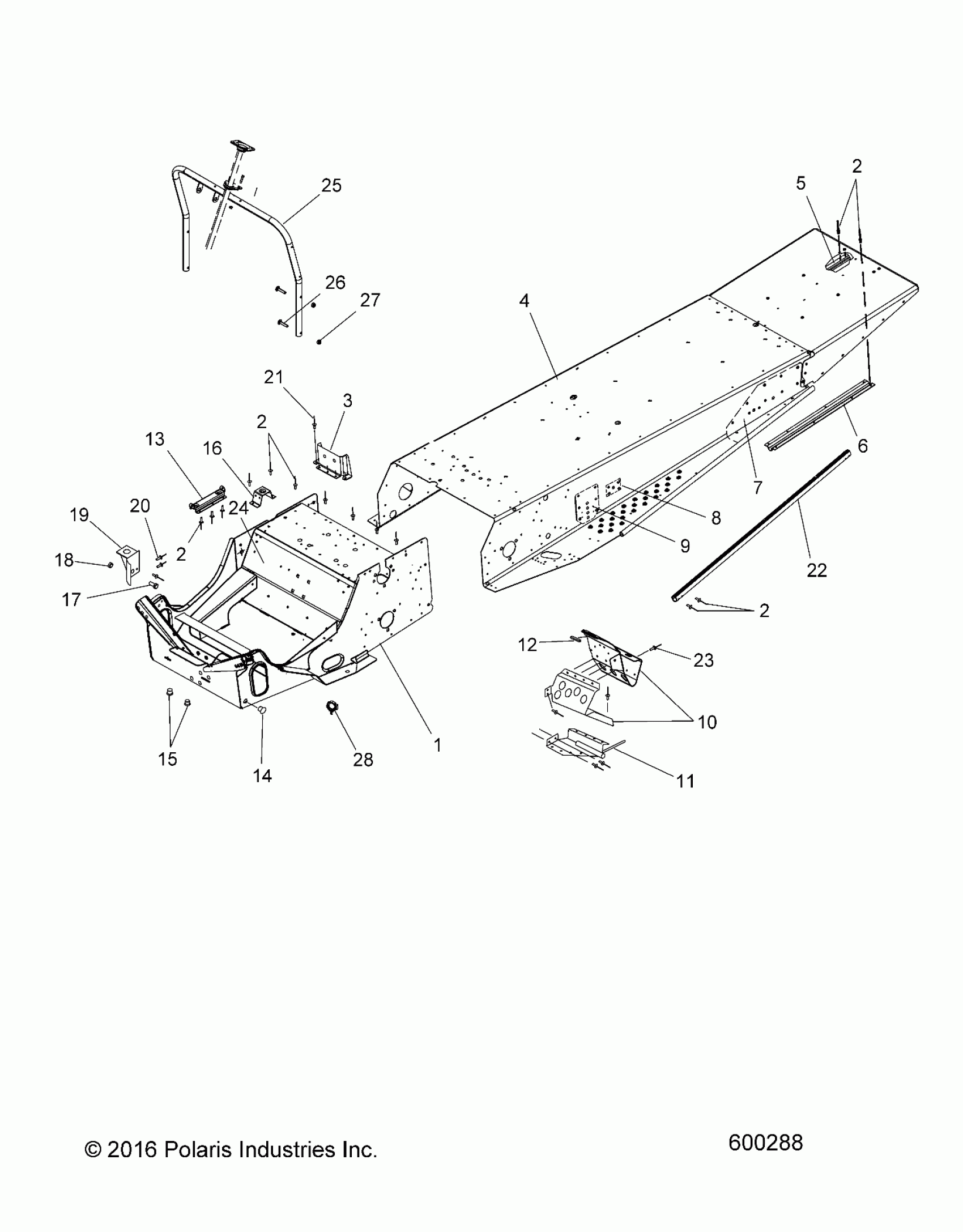

Polaris 550 WIDETRAK/LX ALL OPTIONS (R02) - S17SJA5B CHASSIS, TUNNEL - S17SJA5B ALL OPTIONS (600288) Diagram
#
Description
Price
1
BULKHEAD, WIDETRAK, VENTED
1022508
$1,514.99
2
RIVET-3/16-.090-.290
7661637
Unavailable
2
RIVET-3/16-.090-.290
7661637
Unavailable
2
RIVET-3/16-.090-.290
7661637
Unavailable
2
RIVET-3/16-.090-.290
7661637
Unavailable
3
BRACKET, GAS TANK, BLACK
5221932-067
Unavailable
4
ASM., TUNNEL, WIDETRAK, FC
1021323
Unavailable
5
STRIP, WEAR
5135872
$68.79
6
BRACKET, HARNESS PROTECTOR
5222323
$24.27
7
PAD, SUSPENSION, HEAVY DUTY, LH, BLACK
1015771-067
$96.81
7
PAD, SUSPENSION, HEAVY DUTY, RH, BLACK
1015772-067
$82.29
8
PLATE, TUNNEL, CARRIER, BLACK
5250651-067
$23.99
9
PAD, SUSPENSION, FRONT, BLACK
5251431-067
$28.32
10
ASM., FOOTREST, LX, RH
1021364
$169.99
10
ASM., FOOTREST, LX, LH
1021363
$169.99
11
SUPPORT, TRAILING ARM, LH, BLACK
1021361-329
$99.99
11
SUPPORT, TRAILING ARM, RH, BLACK
1021362-329
$99.99
12
EXTRUSION, CLUTCH GUARD
5521238
$6.46
13
MOUNT-RESONATOR,PLATED
5261147
$54.99
14
PLUG, HOLE
7080416
$5.65
15
PLUG-HOLE
7080398
$4.84
16
BRKT., STANDOFF
5252830
$13.75
17
Screw
7512307
$3.99
18
Nut, Flange
7542321
$1.49
19
SUPPORT, MUFFLER, BLACK
1012079-067
$28.32
20
Rivet
7661130
$1.49
21
RIVET
7621330
$1.49
22
GRIP-TUNNEL ROLL
5243112
Unavailable
23
RIVET, BLK
7661846
$1.99
24
Clip, Dart
7670067
$3.99
25
HOOP, STEERING, BLK
1012729-067
$109.27
26
BOLT, CARRIAGE
7517931
$2.39
27
NUT
7542122
$1.49
28
Clip, Rosebud
4020149
$6.39
