- 550 VOYAGEUR 144 (R01) - S17CEF5BSL
SUSPENSION, RAIL MOUNTING - S17CEF5BSL (49SNOWSUSPRAIL14550144)

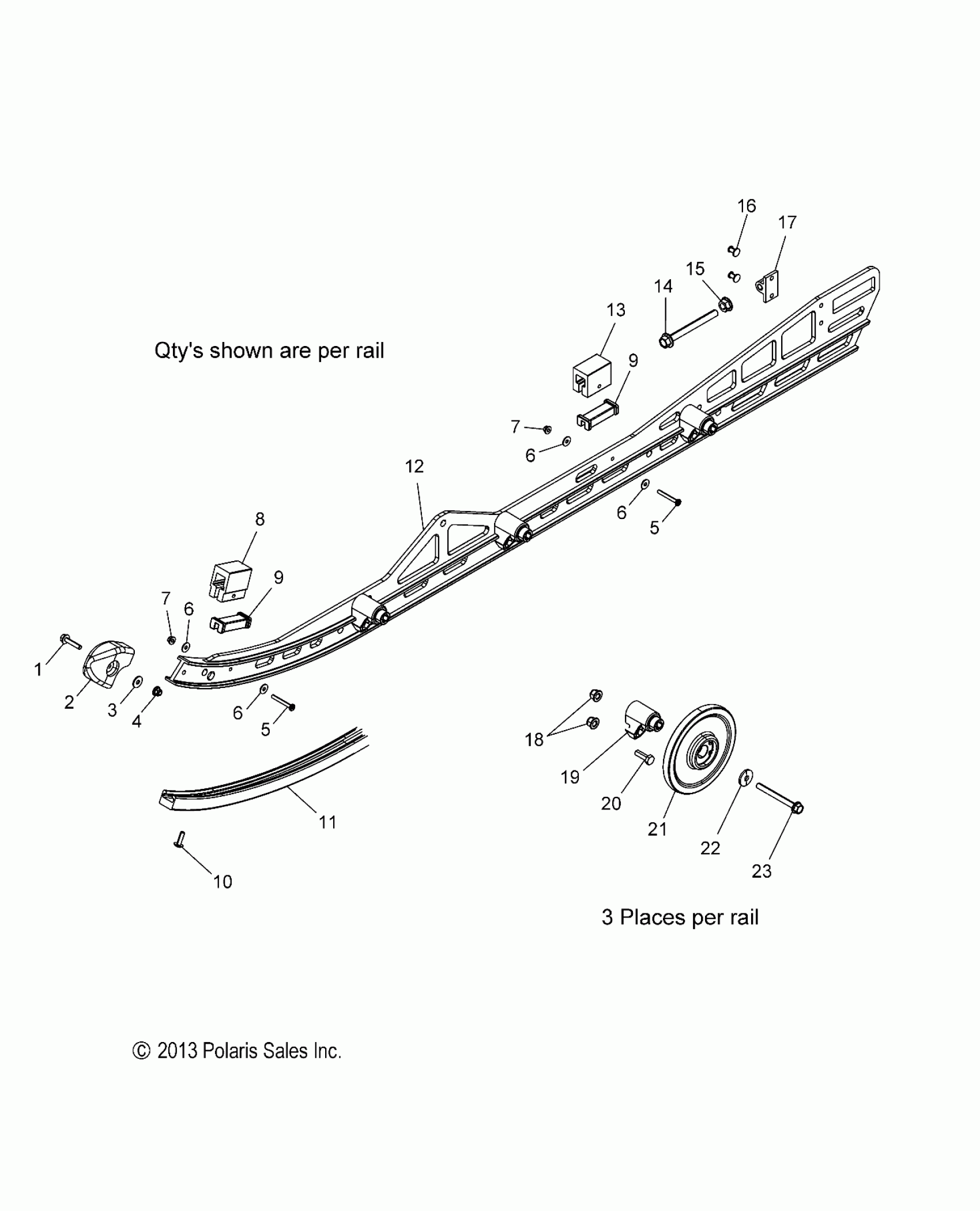

Polaris 550 VOYAGEUR 144 (R01) - S17CEF5BSL SUSPENSION, RAIL MOUNTING - S17CEF5BSL (49SNOWSUSPRAIL14550144) Diagram
#
Description
Price
1
SCREW
7518993
$2.39
2
CAP, RAIL TIP
5438374
$20.22
3
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
5
SCREW
7518951
$3.19
5
SCREW
7518951
$3.19
6
WASHER, FLAT
7556470
$2.39
6
WASHER, FLAT
7556470
$2.39
6
WASHER, FLAT
7556470
$2.39
6
WASHER, FLAT
7556470
$2.39
7
NUT, NYLOK
7547427
$3.19
7
NUT, NYLOK
7547427
$3.19
8
BUMPER, JOUNCE, REAR
5521498
$8.89
9
LINER-BUMPER
5432946
$9.70
9
LINER-BUMPER
5432946
$9.70
10
SCREW
7518976
$3.19
11
HI-FAX
5521633
$40.46
12
ASM., RAIL, BSC COIL OVER, 144, LH [INCL. 1-9,13,16,17]
1542951
$579.99
12
ASM., RAIL, BSC COIL OVER, 144, RH [INCL. 1-9,13,16,17]
1542952
$579.99
13
BUMPER
5521812
$7.99
14
SCREW
7519167
$11.99
15
NUT
7547017
$5.59
16
RIVET
7621501
$2.39
17
BLOCK-IDLER BOLT ADJ METRIC
5136570
$34.99
18
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
19
BLOCK, WHEEL MOUNT
5631446
$24.27
20
SCREW
7518952
$3.19
21
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
21
ASM., WHEEL
1590419-070
$67.76
21
BEARING [1 PER WHEEL]
3514012
Unavailable
22
WASHER
7556489
$1.59
23
SCREW
7519217
$1.59
