- 550 VOYAGEUR 144 (R01) - S17CEF5BSL
SUSPENSION, CONTROL ARMS and SPINDLE - S17CEF5BSL (49SNOWSUSPFRT11800PRMK)

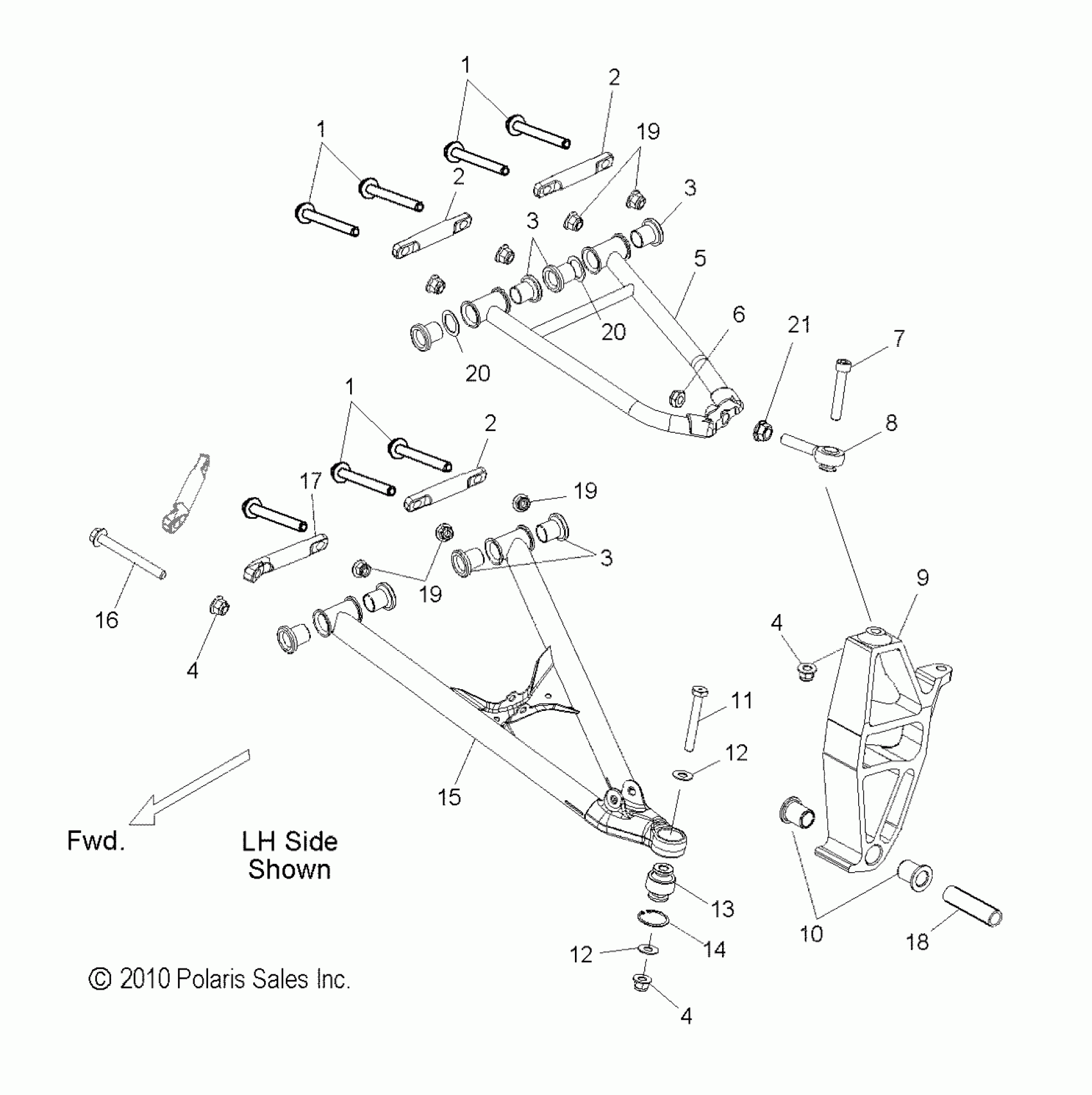

Polaris 550 VOYAGEUR 144 (R01) - S17CEF5BSL SUSPENSION, CONTROL ARMS and SPINDLE - S17CEF5BSL (49SNOWSUSPFRT11800PRMK) Diagram
#
Description
Price
1
STUD, WHEEL
7519204
$19.99
1
STUD, WHEEL
7519204
$19.99
1
STUD, WHEEL
7519204
$19.99
2
SHAFT, PIVOT
5137700
$36.41
2
SHAFT, PIVOT
5137700
$36.41
2
SHAFT, PIVOT
5137700
$36.41
3
BUSHING, PIVOT
5437539
$2.39
3
BUSHING, PIVOT
5437539
$2.39
3
BUSHING, PIVOT
5437539
$2.39
4
NUT, NYLOK
7547423
$3.99
4
NUT, NYLOK
7547423
$3.99
4
NUT, NYLOK
7547423
$3.99
5
KIT, UPPER CONTROL ARM, LH, BLACK [INCL. 2-4,6,8,21]
2204930-067
Unavailable
5
KIT, UPPER CONTROL ARM, RH, BLACK [INCL. 2-4,6,8,21]
2204931-067
Unavailable
6
NUT, HEX NYL
7547464
$3.19
7
SCREW
7519246
$3.99
8
ROD END
7061178
$48.56
9
ASM-SPINDLE,LH [INCL. 10]
1823908
$244.99
9
ASM-SPINDLE,RH [INCL. 10]
1823909
$244.99
10
BUSHING-SKI PIVOT
5133983
$14.99
11
SCREW
7519015
$5.59
12
Washer
7555806
$1.49
12
Washer
7555806
$1.49
13
KIT-BEARING SPHERICAL LWR 10MM
2204229
$31.99
14
RING, RETAINING
7710539
$2.39
15
KIT, LOWER CONTROL ARM, LH, BLACK [INCL. 2-4,13,14,17]
2204422-067
$299.99
15
KIT, LOWER CONTROL ARM, RH, BLACK [INCL. 2-4,13,14,17]
2204423-067
$299.99
16
SCREW
7518917
$4.79
17
SHAFT, PIVOT, LOWER CONTROL ARM, FRONT
5137701
$48.40
18
BUSHING
5136910
$7.99
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
20
WASHER, SPRING
7571605
$6.39
20
WASHER, SPRING
7571605
$6.39
21
NUT
7547490
$3.99
