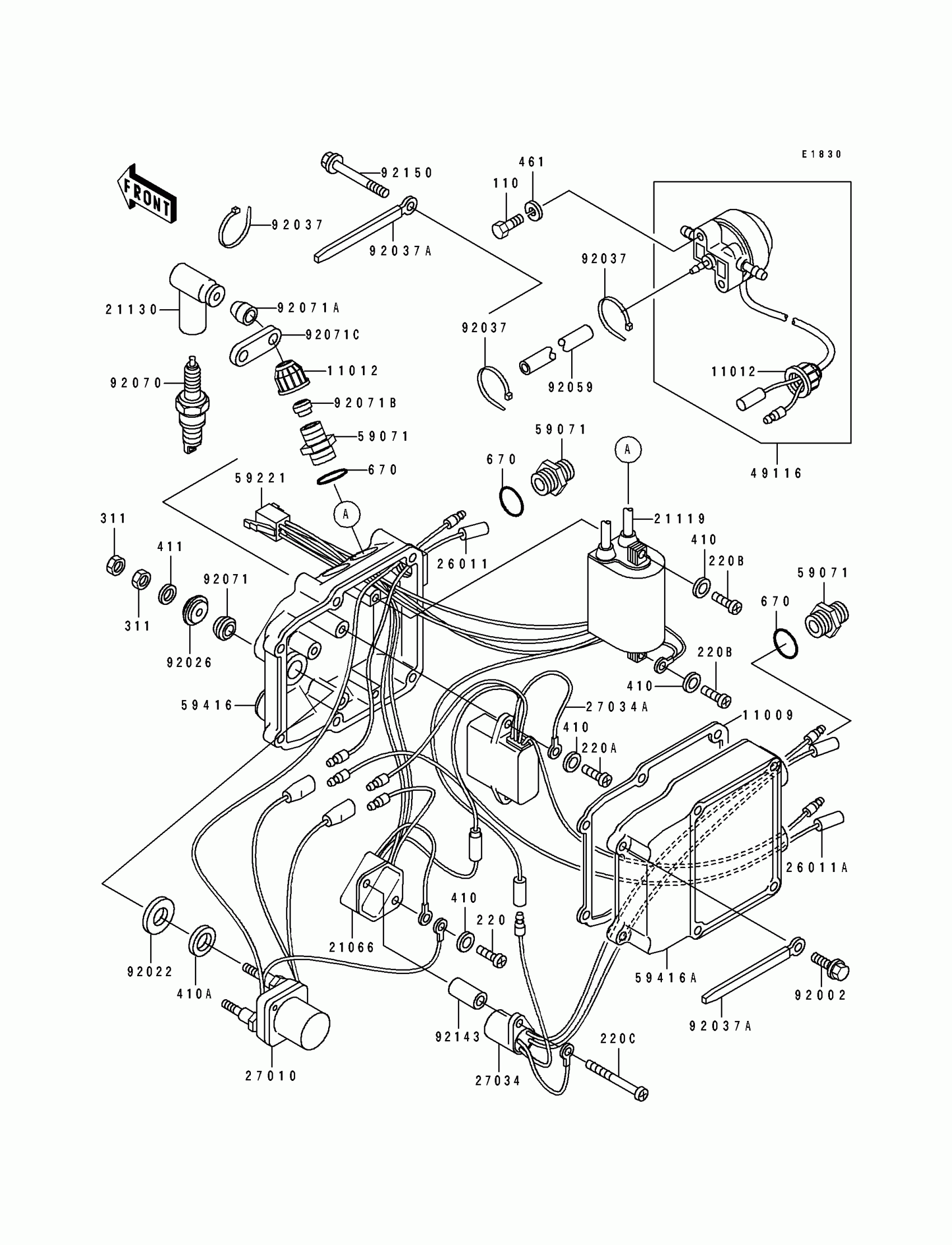

Kawasaki 550 SX Ignition Coil Diagram

#

Description
Price

11009

GASKET,ELECTRIC CASE

11009-3045

Unavailable

11012

CAP

11012-3005

$5.54

21066

REGULATOR-VOLTAGE

21066-3003

Unavailable

21119

IGNITER,CDI

21119-3016

Unavailable

21130

CAP-SPARK PLUG

21130-1062

$29.85

26011

WIRE-LEAD,ORANGE

26011-3003

Unavailable

26011A

WIRE-LEAD,RED/WHITE

26011-3008

$5.03

27010

SWITCH,MAGNETIC

27010-3007

Unavailable

27034

RELAY,STOP SWITCH

27034-3002

Unavailable

27034A

RELAY,RPM LIMITER

27034-3004

Unavailable

49116

VALVE-ASSY,RPM LIMITER

49116-3001

$410.31

59071

JOINT

59071-3001

$6.29

59221

CONNECTOR-CORD

59221-505

Unavailable

59416

CASE-ELECTRIC,FR

59416-3004-YR

Unavailable

59416A

CASE-ELECTRIC,RR

59416-3005-YR

$88.10

92002

BOLT,6X25

92002-3714

$5.00

92022

WASHER

92022-3035

$3.52

92026

SPACER

92026-3703

$4.69

92037

CLAMP

92037-1173

$3.49

92037A

CLAMP,L=100

92037-3736

$5.52

92059

TUBE,FUEL,2.5X185

92059-3038

Unavailable

92070

PLUG-SPARK,BR8ES(NGK),SOLID

92070-2078

$3.62

92071

GROMMET

92071-3004

$3.99

92071A

GROMMET

92071-517

$0.69

92071B

GROMMET

92071-527

$6.68

92071C

GROMMET

92071-529

Unavailable

92143

COLLAR

92027-3013

$6.54

92150

BOLT,6X80

92150-3761

$9.18

110

BOLT,6X14

110R0614

$3.40

220

SCREW PAN HEAD 6X12

220B0612

Unavailable

220A

SCREW-PAN-CROS,6X16

220B0616

$2.84

220B

SCREW-PAN-CROS,6X20,WHITE

220B0620

$5.82

220C

SCREW PAN HEAD 6X45

220B0645

$1.71

311

NUT-HEX,6MM

311R0600

$0.70

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.31

410A

WASHER PLAIN 10MM

410B1000

$0.58

411

WASHER-PLAIN,6MM

411S0600

$2.06

461

WASHER-SPRING,6MM

461S0600

$1.07

670

O RING,16MM

670B2016

$1.36
