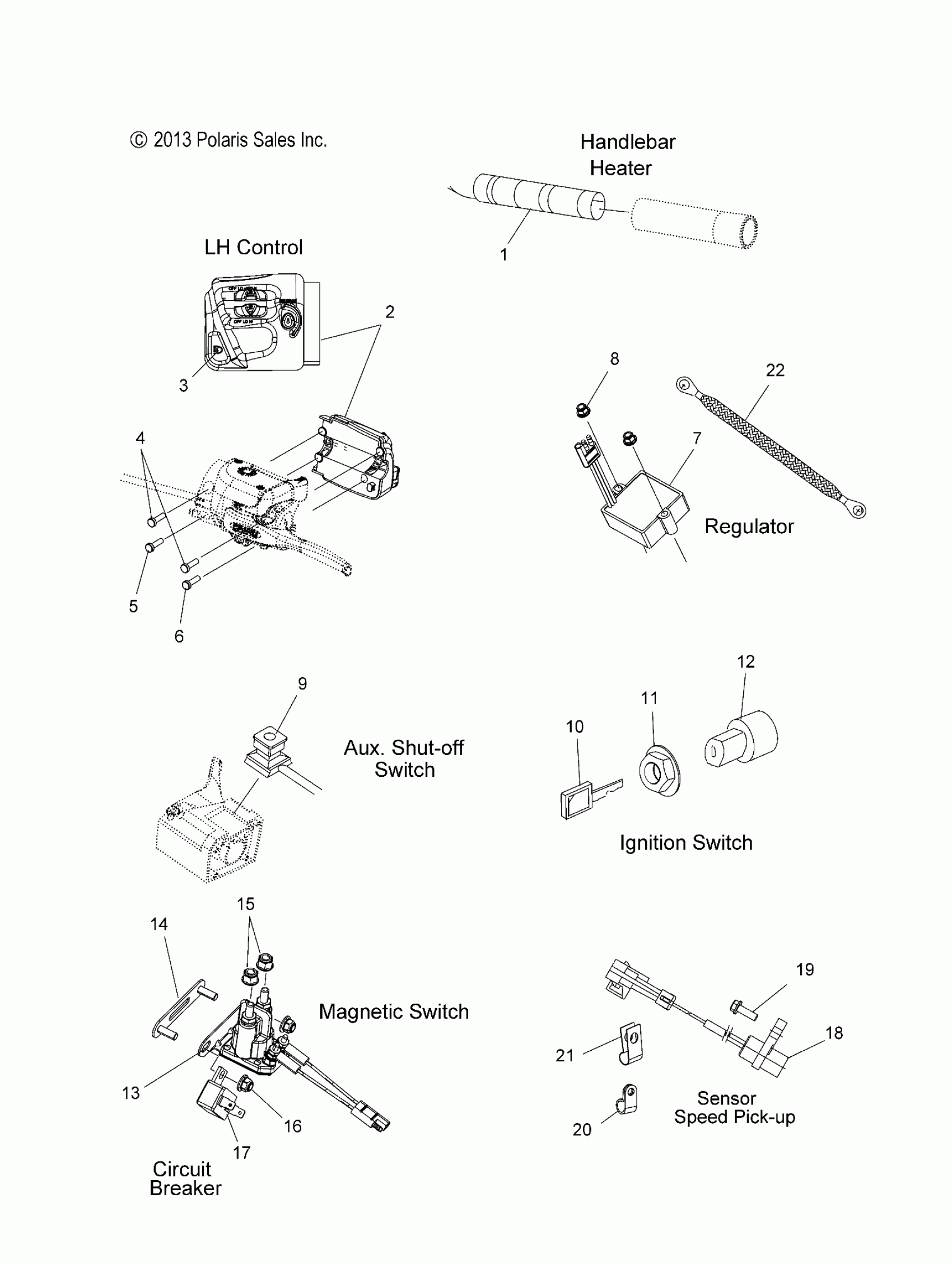

Polaris 550 INDY LXT ALL OPTIONS (R01) - S17CED5 ELECTRICAL, SWITCHES and COMPONENTS - S17CED5 ALL OPTIONS (49SNOWELECT14550) Diagram

HEATER, GRIP, LO/MED/HI

2413079

$58.08

ASM., LH CONTROL, REV. [INCL. 3]

2010371

$76.89

BUTTON, SWITCH, HI/LO, LH CONTROL

5438874

$34.99

SCREW, .75

7517441

$2.39

SCREW, 1.12

7512078

$1.49

SCREW, 1.50

7517566

$3.99

REGULATOR

4013459

$238.79

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

SWITCH, AUXILLARY SHUT-OFF

4015322

$134.99

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

Nut, Ignition

7547035

$8.79

KIT, IGNITION SWITCH, ES, COMPLT. [INCL. 11]

2205055

$76.89

SWITCH, MAGNETIC

4012358

$52.60

ASM., STUD PLATE

1017255

$13.75

Nut

7542153

$1.59

NUT-M6X1.0, FLG-NYLOC-OLIVE D

7547339

$1.49

BREAKER, CIRCUIT, 12 AMP.

2411592

$28.32

SENSOR, SPEED PICKUP, LG

2412968

$116.17

Screw

7518280

$1.49

CLAMP, CABLE, 5/16

7080960

$4.79

CLAMP-CABLE

7080367

$2.39

STRAP, GROUNDING

2412988

$49.99
