- 550 INDY LXT ALL OPTIONS (R01) - S17CED5
CHASSIS, BULKHEAD ASM. - S17CED5 ALL OPTIONS (600781)

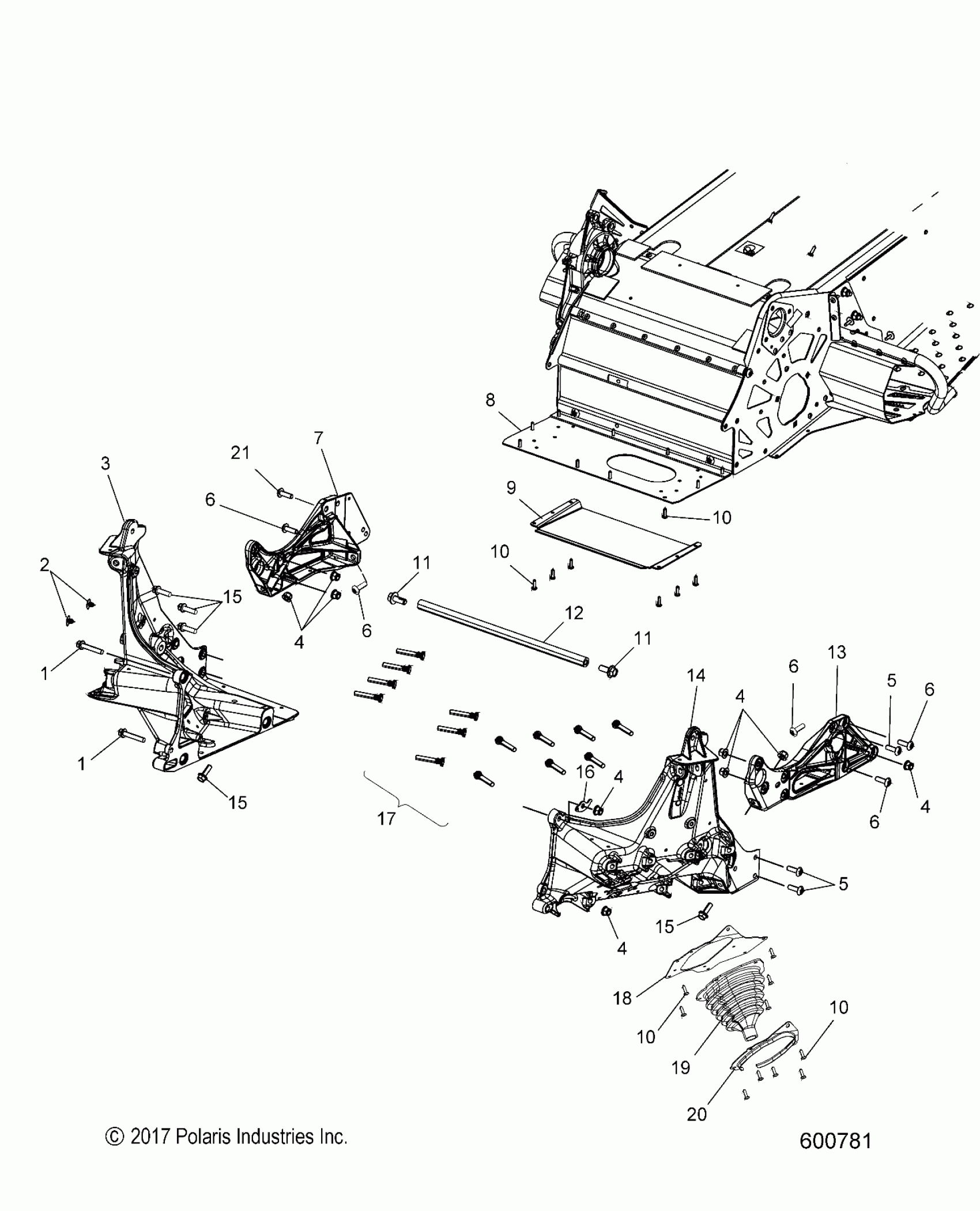

Polaris 550 INDY LXT ALL OPTIONS (R01) - S17CED5 CHASSIS, BULKHEAD ASM. - S17CED5 ALL OPTIONS (600781) Diagram
#
Description
Price
-
KIT, LORD, 406 REPAIR KIT, 50 ML [ADHESIVE]
2204171
$294.99
-
KIT, LORD, 406, 50 ML CARTRIDGE [ADHESIVE]
2204400
$74.99
-
KIT, LORD, MIX NOZZLES, 12 PIECE
2204172
$4.99
1
SCREW
7516732
$1.59
1
SCREW
7516732
$1.59
2
Clip, Dart, Nylon
7670067
$3.99
3
ASM., CLIP, F/C, RH [INCL. 17][REQUIRES ADHESIVE]
1018222
$439.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
5
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
5
SCR-TXTH-M8X1.25X25 8.8 ZODP30
7519070
$6.39
6
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
6
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
6
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
6
SCR-M8X1.25X25 8.8TXTR ZOD P80
7518906
$3.19
7
BRACE, LOWER, RH [REQUIRES ADHESIVE]
5138693
$109.99
8
FLOOR, BULKHEAD, VENTED
5256779
$29.03
9
VENT, FLOOR
5256780
$40.46
10
RIVET-3/16-.090-.290
7661637
$1.49
10
RIVET-3/16-.090-.290
7661637
$1.49
10
RIVET-3/16-.090-.290
7661637
$1.49
10
RIVET-3/16-.090-.290
7661637
$1.49
11
SCR-M10X1.5X25-8.8 HFS ZOD
7518934
$3.99
11
SCR-M10X1.5X25-8.8 HFS ZOD
7518934
$3.99
12
TUBE, CROSS
5137910
$58.08
13
ASM., BRACE, LOWER, LH [REQUIRES ADHESIVE][INCL. SLEEVE]
1017942
$84.99
14
ASM., CLIP, F/C, LH [INCL. 17][REQUIRES ADHESIVE]
1018221
$439.99
15
SCREW
7519243
$3.99
15
SCREW
7519243
$3.99
15
SCREW
7519243
$3.99
16
BRKT., PIPE/CHASSIS
5252680
$5.65
17
STUD
7519204
$19.99
18
REINFORCEMENT, CLIP, PLATED, LH
5255215
$28.32
18
REINFORCEMENT, CLIP, PLATED, RH
5255216
$23.99
19
BOOT, TIE ROD
5414360
$43.56
20
PLATE, BOOT SEAL, LH, BLK
5255478-067
$24.27
20
PLATE, BOOT SEAL, RH, BLK
5255479-067
$24.27
21
SCR-M8X1.25X30 8.8 TR/TX ZOD
7518953
$1.59
