- 550 INDY ALL OPTIONS (R02) - S17CBA5
SUSPENSION, REAR and TRACK - S17CBA5 ALL OPTIONS (49SNOWSUSPRR14550121)

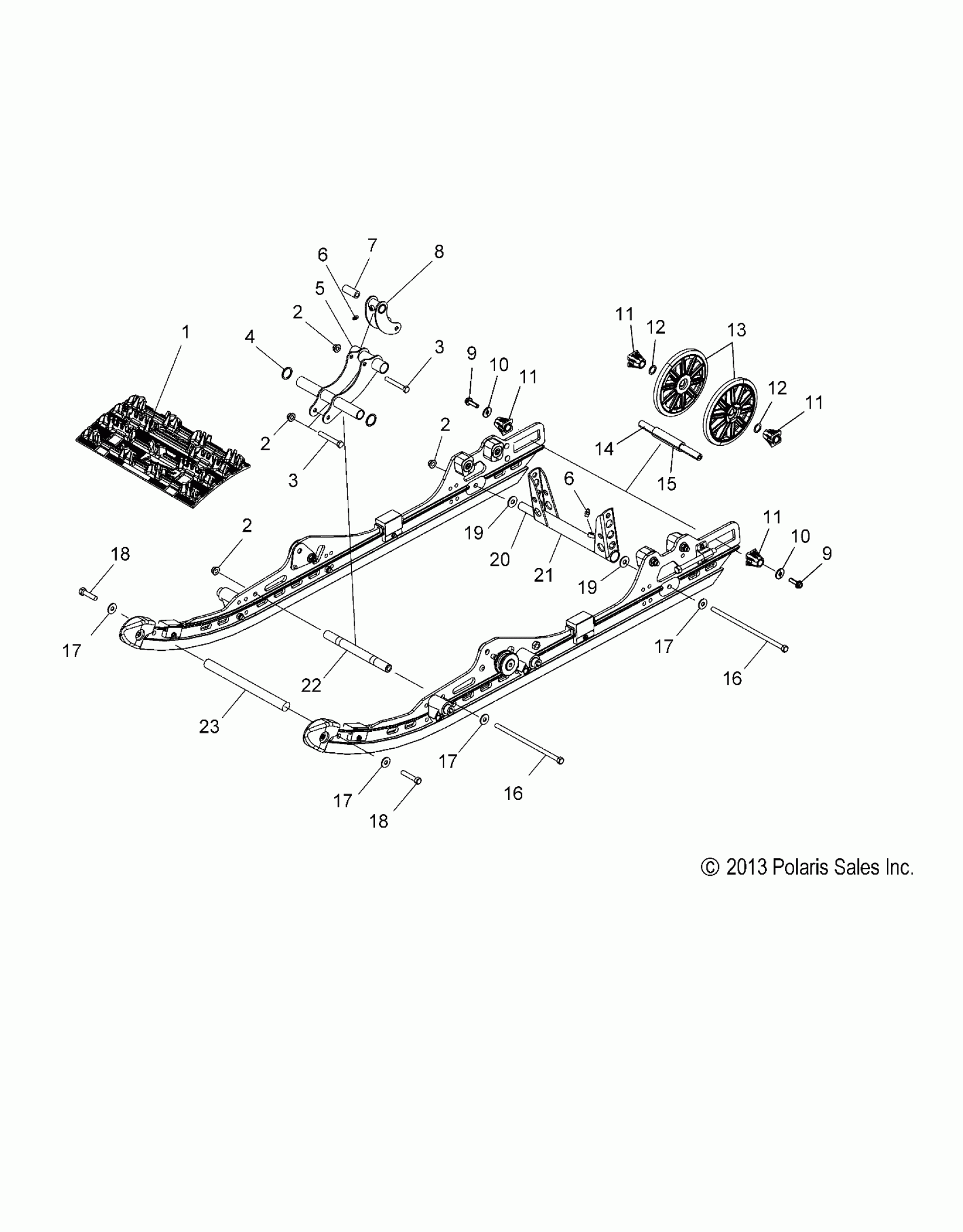

Polaris 550 INDY ALL OPTIONS (R02) - S17CBA5 SUSPENSION, REAR and TRACK - S17CBA5 ALL OPTIONS (49SNOWSUSPRR14550121) Diagram
#
Description
Price
1
CLIP, GUIDE
5222840
Unavailable
1
TRACK, .91 INCH SHOCKWAVE
5412281
$583.99
1
KIT, TRACK, 1.352 INCH COBRA [INTL]
2877377
Unavailable
2
NUT-3/8-24 FLG LOC
7547263
$3.19
2
NUT-3/8-24 FLG LOC
7547263
$3.19
2
NUT-3/8-24 FLG LOC
7547263
$3.19
2
NUT-3/8-24 FLG LOC
7547263
$3.19
3
SCREW
7515417
$4.79
3
SCREW
7515417
$4.79
4
Bushing
7556509
$1.59
5
BRACKET, H, BLACK
1543124-329
$89.03
6
FITTING-LUBRICATION 1/4-28
7080424
$4.79
6
FITTING-LUBRICATION 1/4-28
7080424
$4.79
7
SLEEVE, SHOCK PIVOT
5337829
$129.99
8
PIVOT, SHOCK
1543125-329
$53.24
9
BOLT
7517731
$1.49
9
BOLT
7517731
$1.49
10
WASHER
7556130
$6.39
10
WASHER
7556130
$6.39
11
SPACER-IDLER
5432535
$11.99
11
SPACER-IDLER
5432535
$11.99
11
SPACER-IDLER
5432535
$11.99
11
SPACER-IDLER
5432535
$11.99
12
BUSHING
7555918
$1.59
12
BUSHING
7555918
$1.59
13
BEARING
3514384
$19.84
13
RING-RETAINING
7710444
$8.79
13
ASM-WHEEL,SPOKE,7.25,6004
1590459
$47.99
14
SHAFT, IDLER
5335232
$44.51
15
SPACER-IDLER, CENTER
5333283
$19.99
16
SCREW
7517921
$23.99
16
SCREW
7517921
$23.99
17
WASHER, FLAT
7556188
$3.19
17
WASHER, FLAT
7556188
$3.19
17
WASHER, FLAT
7556188
$3.19
17
WASHER, FLAT
7556188
$3.19
18
SCREW
7518005
$3.19
18
SCREW
7518005
$3.19
19
Washer, Flat
7555893
$1.49
19
Washer, Flat
7555893
$1.49
20
SHAFT
5333404
$24.27
21
ARM, PIVOT, REAR, BLACK
1541928-067
$48.87
22
SHAFT
5134517
$28.32
23
SHAFT
5134078
$38.71
