SUSPENSION, RAIL MOUNTING - S17CBA5 ALL OPTIONS (600618C)

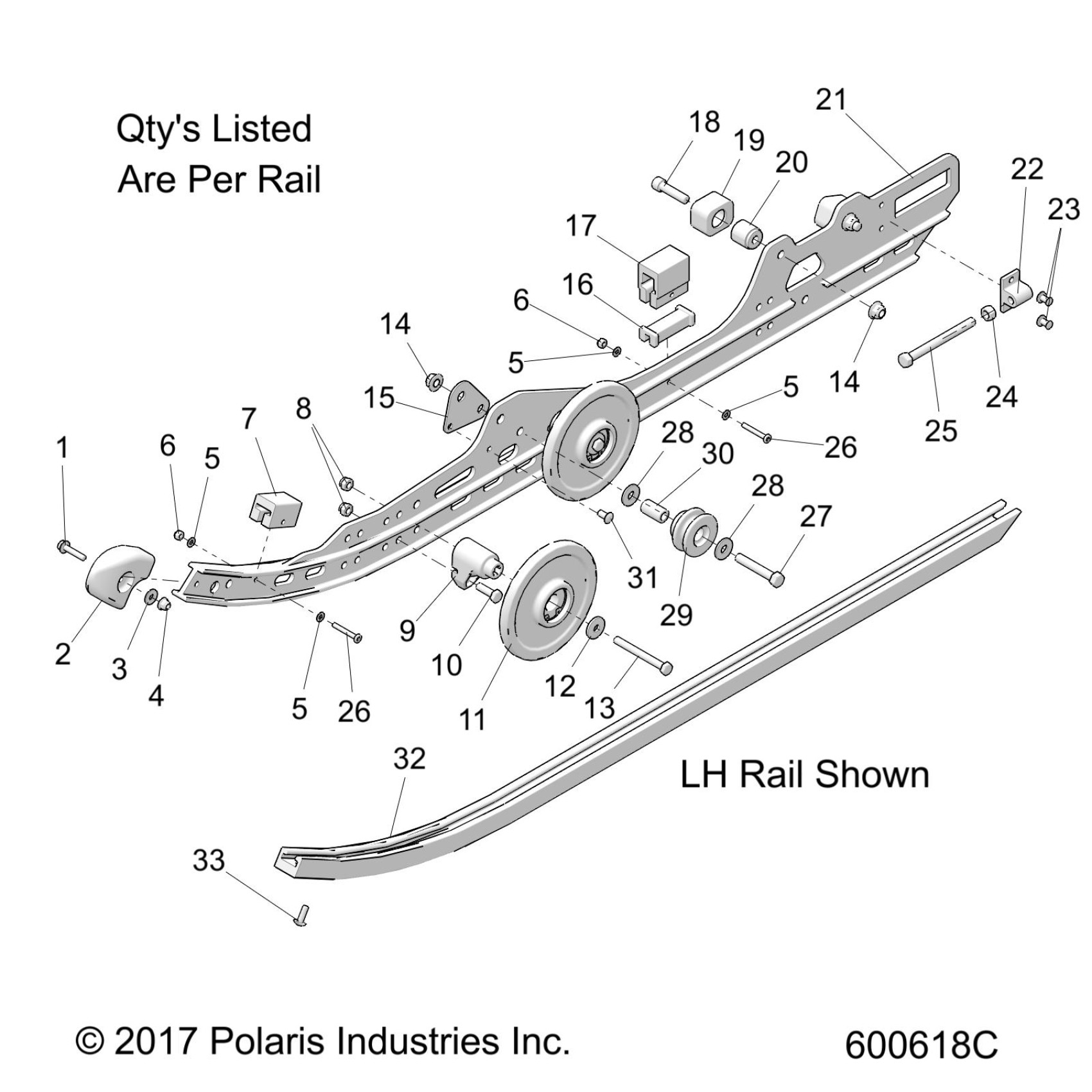

Polaris 550 INDY ALL OPTIONS (R02) - S17CBA5 SUSPENSION, RAIL MOUNTING - S17CBA5 ALL OPTIONS (600618C) Diagram
#
Description
Price
1
SCREW
7518993
$2.39
2
CAP, RAIL TIP
5438374
$20.22
3
WSHR-6.4X18.0X1.6 ZPB
7556064
$5.22
4
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
5
Washer, Flat
7555783
$3.99
5
Washer, Flat
7555783
$3.99
5
Washer, Flat
7555783
$3.99
5
Washer, Flat
7555783
$3.99
6
Nut, Nylok
7541925
$1.49
6
Nut, Nylok
7541925
$1.49
7
BUMPER, JOUNCE, FRONT
5521499
$8.89
8
NUT-5/16-18 NYLOK-Y
7542324
$1.49
9
BLOCK, MOUNT, WHEEL
5631446
$24.27
10
BOLT
7515317
$4.79
11
BEARING [1 PER WHEEL]
3514384
$19.84
11
RING-RETAINING [1 PER WHEEL]
7710444
$8.79
11
ASM., WHEEL, BLACK
1590419-070
$67.76
12
WASHER, SPRING
7556387
$1.59
13
Screw
7515346
$5.59
14
NUT-3/8-24 FLG LOC
7547263
$3.19
14
NUT-3/8-24 FLG LOC
7547263
$3.19
15
BRACKET, RAIL REINFORCEMENT
5248414
$36.41
16
LINER-BUMPER
5432946
$9.70
17
BUMPER, JOUNCE, REAR
5521498
$8.89
18
BOLT
7515537
$10.99
19
BUMPER, PIVOT ARM
5410925
$12.94
20
MOUNT, BUMPER
5131113
$28.32
21
ASM., RAIL, RH [INCL. 1-7,16,17,22,23,26]
1542791
$554.99
21
ASM., RAIL, LH [INCL. 1-7,16,17,22,23,26]
1542790
$609.99
22
BLOCK, IDLER BOLT ADJUSTING
5130530
$32.37
23
RIVET
7621501
$2.39
24
NUT
7542404
$1.59
25
SCREW
7517227
$7.19
26
Screw
7510504
$6.76
26
Screw
7510504
$6.76
27
Screw
7515415
$1.49
28
WASHER
7555983
Unavailable
28
WASHER
7555983
Unavailable
29
ROLLER, SPRING
5432982
$9.70
30
BUSHING
5135933
$3.99
31
RIVET
7661845
$1.49
32
SLIDER
5521632
$39.98
33
Screw
7515199
$1.49
