- 550 INDY ADVENTURE 144 (R01) - S17CEE5BSL
STEERING, H-BAR, STEERING POST, TIE ROD - S17CEE5BSL (49SNOWHANDLEBAR14550)

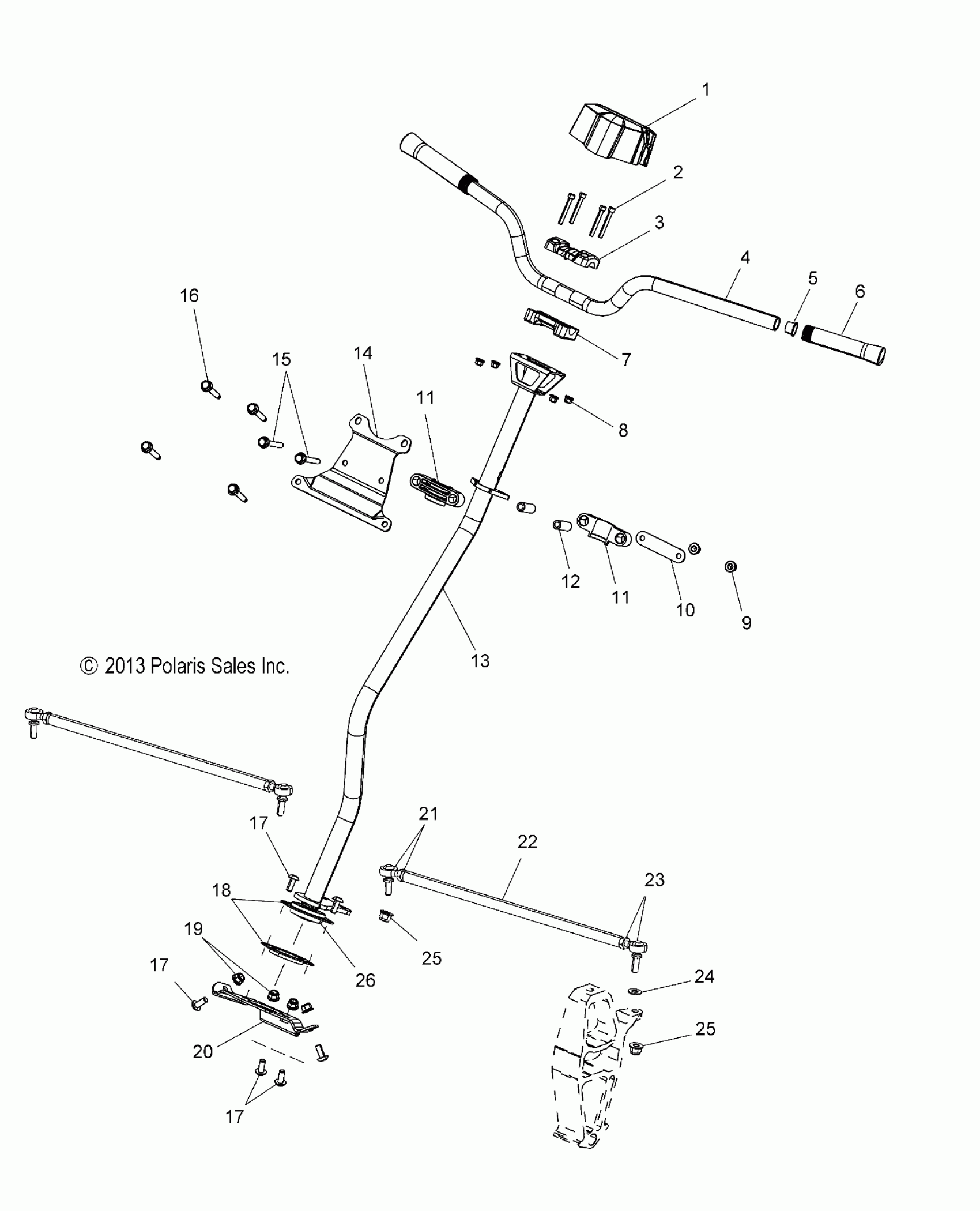

Polaris 550 INDY ADVENTURE 144 (R01) - S17CEE5BSL STEERING, H-BAR, STEERING POST, TIE ROD - S17CEE5BSL (49SNOWHANDLEBAR14550) Diagram
#
Description
Price
1
COVER, HANDLEBAR
5438523
$20.22
2
SCREW
7518931
$2.39
3
BLOCK, HANDLEBAR MOUNT
5631729
$31.99
4
HANDLEBAR, BLACK
5255234-067
$61.89
5
Plug
5431096
$2.02
6
GRIP, HANDLEBAR, BLACK
5452127-070
$20.22
7
Block, Handlebar
5631892
$27.99
8
NUT-M6X1.0, FLG-NYLOC-OLIVE D
7547339
$1.49
9
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
STRAP
5254513
$4.84
11
BUSHING, STEERING POST
5438492
$6.39
11
BUSHING, STEERING POST
5438492
$6.39
12
SPACER, BUSHING
5137796
$3.99
13
ASM., STEERING POST, 550 [INCL. BRNG. and FLANGETTE]
1823895
$193.63
14
MOUNT, STEERING, UPPER
5255066
$32.37
15
SCREW
7519298
$3.99
16
SCREW
7519245
$3.99
17
SCREW
7519260
$6.39
17
SCREW
7519260
$6.39
17
SCREW
7519260
$6.39
18
FLANGETTE, 2 BOLT
5222393
Unavailable
19
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
20
ASM., MOUNT, STEERING, LOWER
1018400
$44.51
21
ROD END-M10X23 75DEG LH
7061165
$52.60
21
NUT, LH
7547431
$3.19
22
TIE ROD
5336789
$36.41
23
ROD END-M10X26.5 75DEG RH
7061166
$52.60
23
NUT-M10X1.5 ZOD
7547430
$3.17
24
Washer
7555806
$1.49
25
NUT
7547423
$3.99
25
NUT
7547423
$3.99
26
BEARING
-------
Unavailable
