- 550 INDY ADVENTURE 144 (R01) - S17CEE5BSL
BODY, PASSENGER SEAT and ARM REST ASM. - S17CEE5BSL (49SNOWSEAT14550PASS)

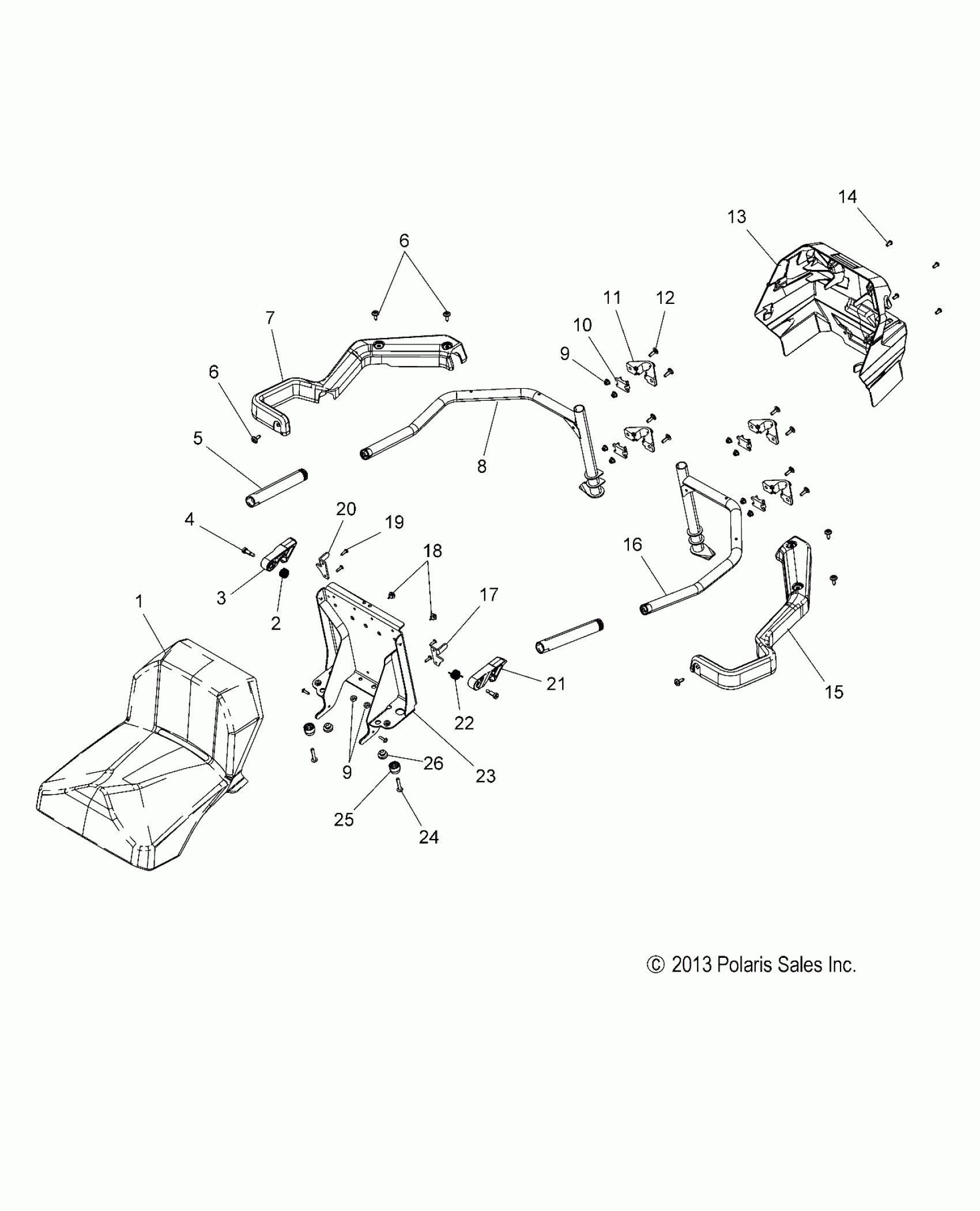

Polaris 550 INDY ADVENTURE 144 (R01) - S17CEE5BSL BODY, PASSENGER SEAT and ARM REST ASM. - S17CEE5BSL (49SNOWSEAT14550PASS) Diagram
#
Description
Price
1
ASM., SEAT, BLK [NON INTL COMPLIANT]
2685648
$445.38
1
COVER, SEAT, PASSENGER [NON INTL COMPLIANT]
2685643
$145.22
1
ASM., SEAT, BLK [INTL COMPLIANT][INTL ONLY]
2688116
$445.38
1
ASM-COVER, PASS, CUT AND SEW [INTL COMPLIANT][INTL ONLY]
2688117
$164.59
2
SPRING, LATCH, RH
7043990
$9.70
3
LEVER, LATCH, RH
5452251
$24.27
4
BOLT, SHOULDER
7518786
$2.39
5
GRIP, HANDLEBAR, LONG, BLK
5414695-070
$28.32
6
SCREW
7519112
$3.19
6
SCREW
7519112
$3.19
7
COVER, ARM REST, RH
5450272
$58.08
8
HAND GRIP, LH, MATTE BLK
1021449-458
$199.99
9
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
$3.99
10
INSERT, PIVOT BUSHING
5450269
$9.70
11
BUSHING, PIVOT, W/FITTING
5450268
$15.99
12
BOLT, CARRIAGE
7518994
$3.22
13
BASE, SEAT, REAR, BLK
5450273-070
$80.94
14
SCREW
7519063
$3.99
15
COVER, ARM REST, LH
5450271
$58.08
16
HAND GRIP, RH, MATTE BLACK
1021450-458
$199.99
17
SUPPORT, TUBE/LATCH, LH
5257238
$10.51
18
BUMPER, RUBBER
5414655
$8.79
19
RIVET-3/16-.090-.290
7661637
$1.49
20
SUPPORT, TUBE/LATCH, RH
5257271
$13.75
21
LEVER, LATCH, LH
5452250
$24.27
22
SPRING, LATCH, LH
7043989
$13.75
23
STRUCTURE, BASE, BLK
1020067-458
$279.99
24
SCREW
7518843
$3.19
25
PLUG, RACK
5450876
$12.79
26
BUMPER-RUBBER
5412067
$3.99
