TUNNEL ASSEMBLY 500 SPX (4922552255001A)

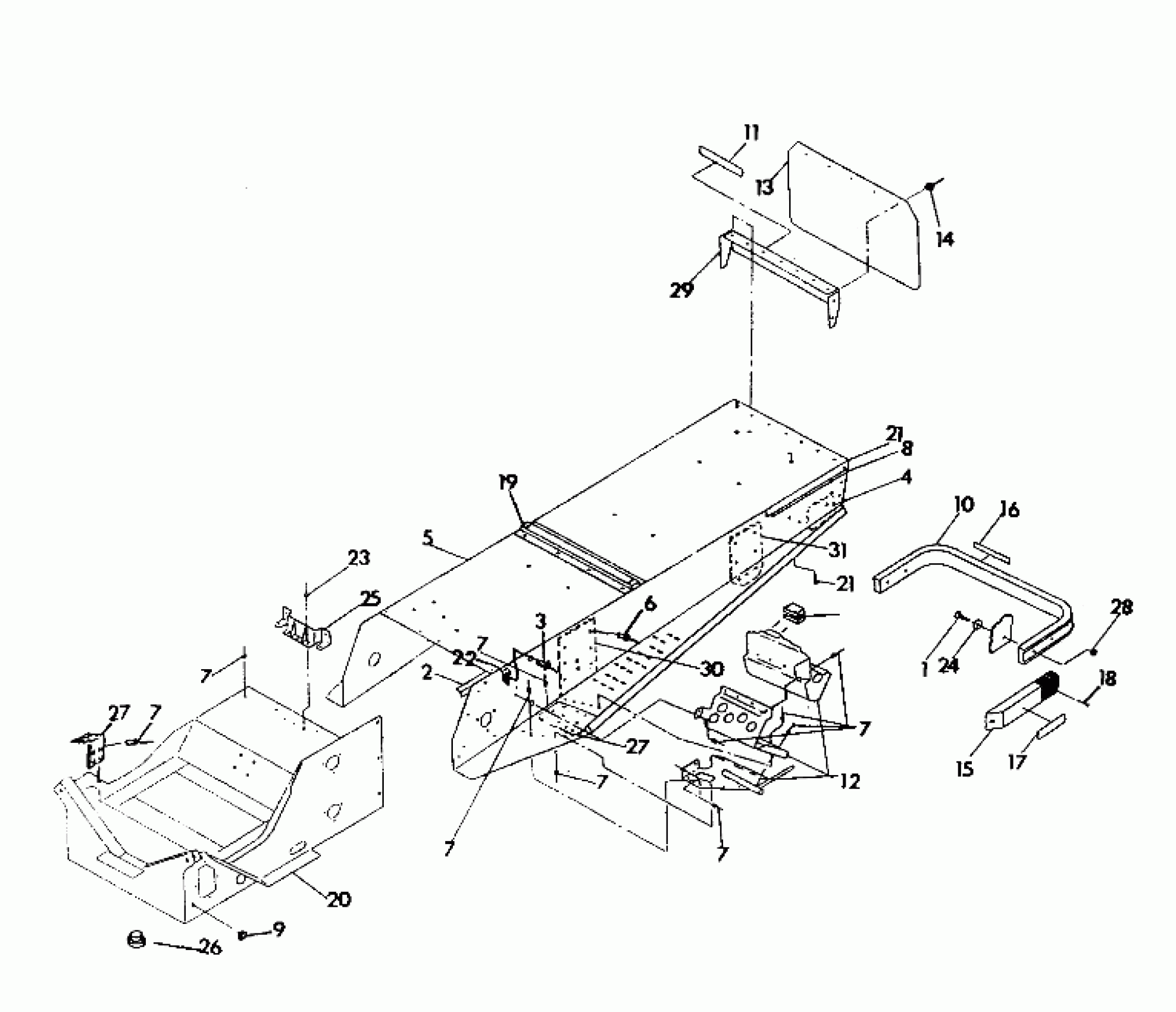

Polaris 500 SPX - 0920674N TUNNEL ASSEMBLY 500 SPX (4922552255001A) Diagram
#
1
BOLT(10)
7512240
$3.99
2
BRACE,TUNNEL REINF.
5222412
Unavailable
3
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
4
WEARPLATE,TUNNEL
5222061
Unavailable
5
TUNNEL ASM,STRT.LIQ.BLK.
1011920
Unavailable
6
RIVET,(50)
7661825
$1.49
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
DECAL,LH TUNNEL STRIPE [No Longer Available]
7073344
Unavailable
8
DECAL,RH TUNNEL STRIPE [No Longer Available]
7073345
Unavailable
9
PLUG-HOLE
7080398
$4.84
10
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
11
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
12
FOOTREST ASM, LH
1011861
Unavailable
12
FOOTREST ASM, RH
1011862
Unavailable
13
SNOWFLAP, SILVER Substituted by 5410394
5410689-092
$121.02
14
POP RIVET(50)
7621418
$1.49
15
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
16
DECAL,R.BUMPER'500S/P' [No Longer Available]
7073342
Unavailable
17
REFLECTOR RED
2670070
$9.91
18
SCREW(10)
7511863
$1.99
19
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
20
BULKHEAD, (500 SPX) Substituted by 1011851-067
1011851
Unavailable
21
BOLT(10)
7512103
$3.19
21
BOLT(10)
7512103
$3.19
22
SNAP-MALE(10)
7080227
Unavailable
23
RIVET(50)
7621301
$3.99
24
WASHER(10)
7558301
$1.49
25
BRKT,GASTANK,WELD.
1011733-067
$19.73
26
PLUG, HOLE(10)
7080416
$5.65
27
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
27
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
28
NUT-LOCK(10)
7542122
$1.49
29
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
30
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
31
BRKT,RH,R.SUSP.
1011858-067
Unavailable
31
BRKT,LH,R.SUSP
1011857-067
Unavailable
