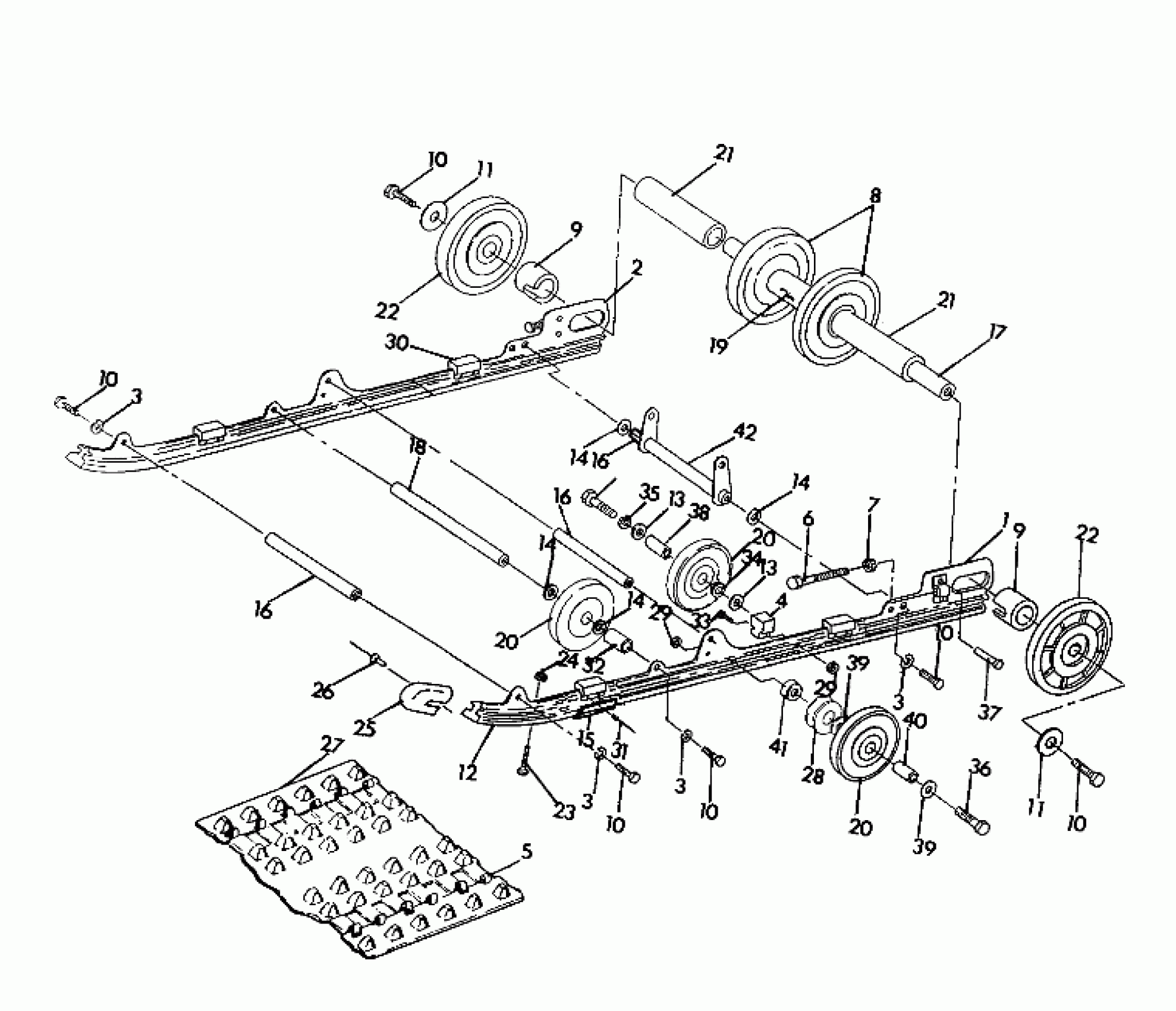

Polaris 500 SPX - 0920674N SUSPENSION 500 SPX (4922552255023A) Diagram
#
2
RAIL ASM, RH
1540725
$292.99
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
3
WASHER(10)
7552603
$1.49
4
BRACKET,BOGIE WHEEL
5130570
$48.56
5
CLIP,METAL(YOKOHAMA),(10)
5222109
Unavailable
6
BOLT, ADJUSTER(10)
7515455
$29.99
7
NUT(10)
7542440
Unavailable
8
DESC NOT_AVAILABLE
1594044-067
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
9
SPACER-IDLER-OUTER
5332641
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
10
BOLT(10) Substituted by 7512492
7515458
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
11
WASHER FLAT(10)
7555732
Unavailable
12
SLIDE,RED,(HIFAX) Substituted by 5521321
5521104
$40.46
13
WASHER(10)
7555804
$3.99
13
WASHER(10)
7555804
$3.99
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
14
MACHINERY BUSHING(10)
7556301
$3.19
15
REINF., BUMPER
5222629
$13.75
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
16
SHAFT-PIVOT ARM Substituted by 5020723
5020392
$29.99
17
SHAFT,REAR IDLER Substituted by 5020722
5020395
Unavailable
18
SHAFT-PIVOT ARM Substituted by 5020724
5020415
$29.99
19
SPACER CTR IDLER
5010168
Unavailable
20
DESC NOT_AVAILABLE
1594045
Unavailable
20
DESC NOT_AVAILABLE
1594045
Unavailable
20
DESC NOT_AVAILABLE
1594045
Unavailable
21
SPACER INNER IDLER
5010169
Unavailable
21
SPACER INNER IDLER
5010169
Unavailable
22
DESC NOT_AVAILABLE
1594044-067
Unavailable
22
DESC NOT_AVAILABLE
1594044-067
Unavailable
23
SCREW(10)
7512227
$3.19
24
NUT-LOCK(10)
7542122
$1.49
25
COVER, RAIL TIP Substituted by 5433005
5431421
Unavailable
26
RIVET(50)
7621435
$1.49
27
TRACK, (650)
5410498
Unavailable
28
ROLLER, SPRING
5431366
$10.51
29
NUT-LOCK(10)
7542439
$1.49
29
NUT-LOCK(10)
7542439
$1.49
30
BUMPER, RAIL
5810554
$7.27
31
RIVET-3/16 (.626-.750) Q-AL-ST
7621476
$1.49
32
SPACER, OUTER
5332784
Unavailable
33
BOLT(10)
7512404
$3.99
34
INSERT-WHEEL Substituted by 5431531
5430789
$9.70
35
LOCK WASHER(10)
7553201
$3.99
36
BOLT(10)
7512659
$7.99
37
RIVET,(50)
7621501
$2.39
38
SPACER
5332786
$7.99
39
WASHER, FLAT(10)
7555852
$2.39
39
WASHER, FLAT(10)
7555852
$2.39
40
SPACER, WHEEL
5333116
$7.99
41
SPACER
5630399
$11.99
42
ARM, REAR PIVOT Substituted by 1540721-067
1540721
Unavailable
