Description

Price

1

SCREW(10)

7512016

Unavailable

2

COVER,MASTER CYL.

5630338

Unavailable

3

GASKET,MASTER CYL.

5410527

$8.99

4

HSG, MASTER CYL. Substituted by 5130912

5130790

Unavailable

5

BUSHING,BRAKE LEVER

5332931

Unavailable

6

LEVER, BRAKE

5630409

Unavailable

7

SPRING,PK.BRAKE

7041229

$32.37

8

NUT(10)

7542124

Unavailable

9

LEVER,PARK.BRAKE

5222669

Unavailable

10

SCREW(10)

7511866

$4.79

11

BUSHING,PK.BRAKE LEVER

5020545

Unavailable

12

WASHER(10)

7555708

$3.99

13

SPRING,COMPRESSION,(10)

7041203

$33.87

14

U PACKING SEAL

5410164

Unavailable

15

PISTON, MASTER CYL.

5020520

Unavailable

15

PISTON, MASTER CYL.

5020520

Unavailable

17

BOLT,SOCKET HEAD(10)

7512290

$4.79

18

CLAMP, MASTER CYL.

5630342

Unavailable

19

BOLT,BRAKE LEVER(10)

7512287

Unavailable

20

MASTER CYL.ASM,(SNOW)

2050056

Unavailable

21

BAFFLE,MASTER CYL.

1930673

Unavailable

22

WASHER, BAFFLE(10)

1930662

Unavailable

23

STRAP,PARK.BRAKE TAG

7080447

Unavailable

24

TAG,PARK.BRAKE

5431389

Unavailable

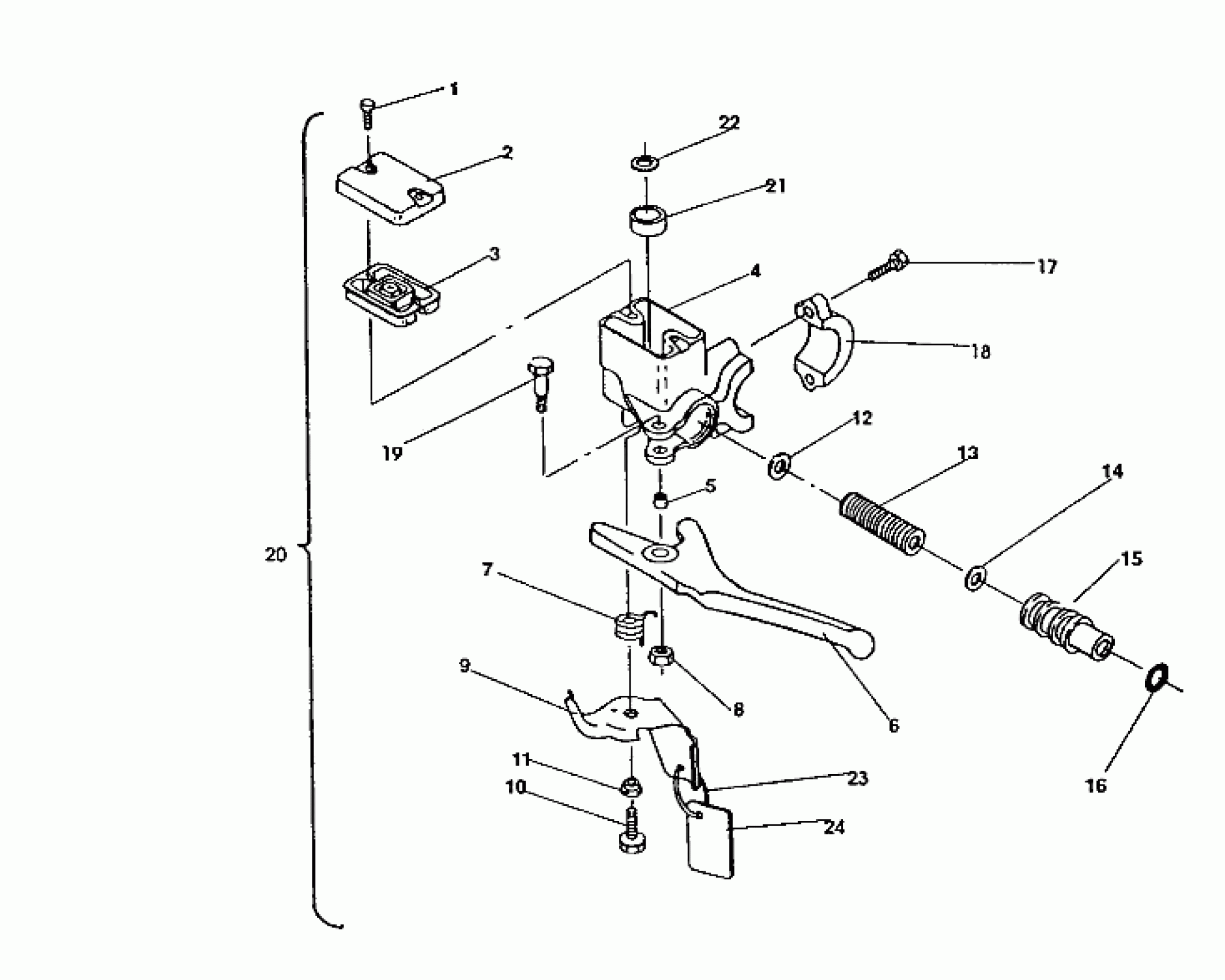

Polaris 500 SPX - 0920674N MASTER CYLINDER ASSEMBLY 500 SPX (4922552255015A) Diagram

SCREW(10)

COVER,MASTER CYL.

GASKET,MASTER CYL.

HSG, MASTER CYL. Substituted by 5130912

BUSHING,BRAKE LEVER

LEVER, BRAKE

SPRING,PK.BRAKE

NUT(10)

LEVER,PARK.BRAKE

SCREW(10)

BUSHING,PK.BRAKE LEVER

WASHER(10)

SPRING,COMPRESSION,(10)

U PACKING SEAL

PISTON, MASTER CYL.

PISTON, MASTER CYL.

BOLT,SOCKET HEAD(10)

CLAMP, MASTER CYL.

BOLT,BRAKE LEVER(10)

MASTER CYL.ASM,(SNOW)

BAFFLE,MASTER CYL.

WASHER, BAFFLE(10)

STRAP,PARK.BRAKE TAG

TAG,PARK.BRAKE
