FRONT SUSPENSION and SKI 500 SPX (4922552255013A)

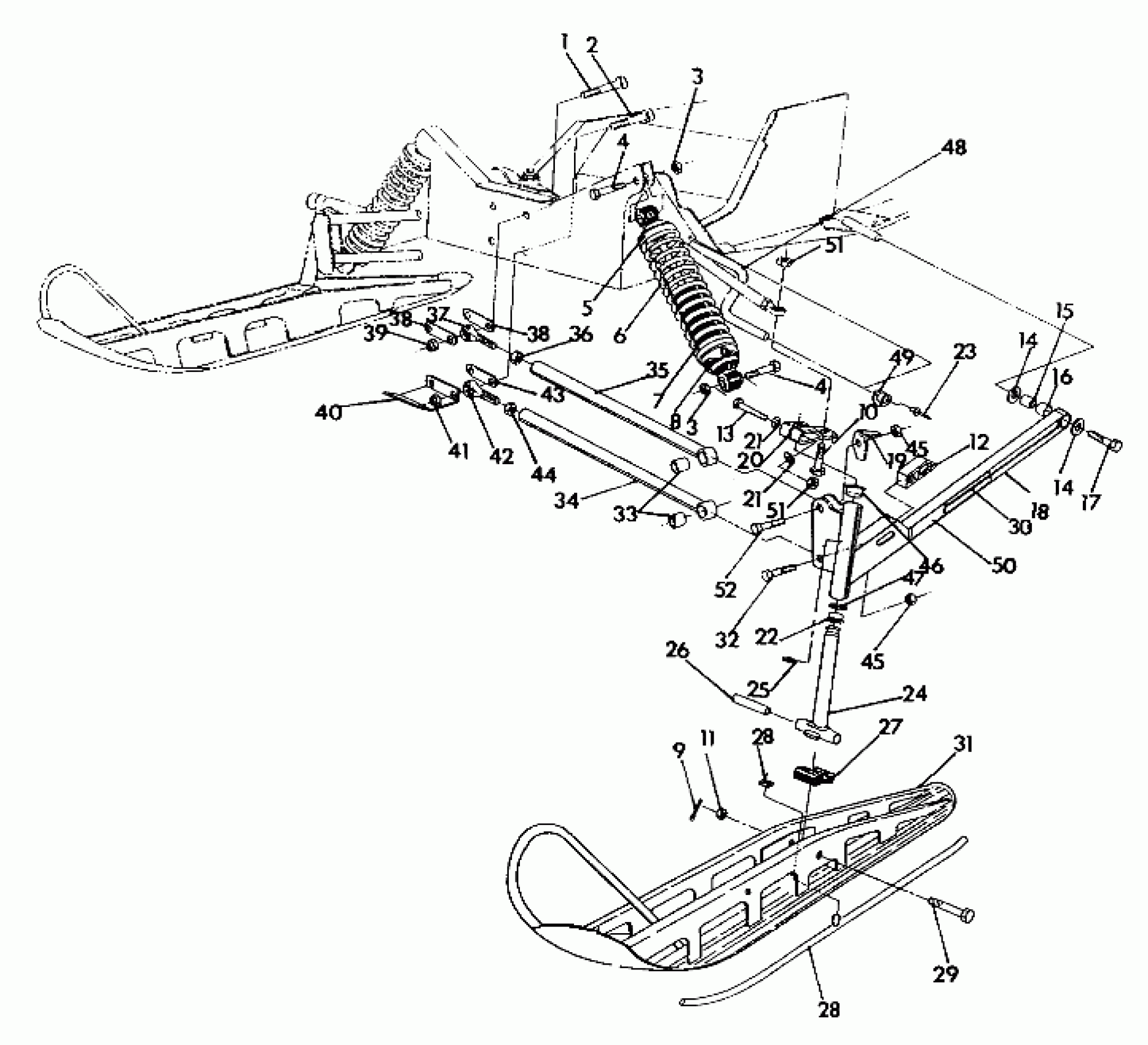

Polaris 500 SPX - 0920674N FRONT SUSPENSION and SKI 500 SPX (4922552255013A) Diagram
#
1
BOLT(10)
7512551
Unavailable
2
BOLT(10)
7512656
$6.23
3
NUT, NYLOC(10)
7542453
Unavailable
3
NUT, NYLOC(10)
7542453
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
4
BOLT(10) Substituted by 7515415
7515515
Unavailable
5
RETAINER-TOP
5220225
$10.39
6
SPRING,COMP.,BLK.
7041261-067
$164.99
7
SPACER,SHOCK RETAINER(10)
5210953
$6.39
8
SHOCK,FR.SUSPENSION
7041243
Unavailable
9
PIN COTTER(10)
7661203
$1.49
10
BOLT Substituted by 7512404
7515490
Unavailable
11
NUT, CASTLE(10) Substituted by 7542438
7542457
Unavailable
12
SLIDE-SWAYBAR
5410384
Unavailable
13
BOLT(10) Substituted by 7517583
7515491
Unavailable
14
WASHER(10)
7555721
$1.49
14
WASHER(10)
7555721
$1.49
15
TUBE,TRAILING ARM
5010187
Unavailable
16
PIVOT-TRAILING ARM
5410382
Unavailable
17
BOLT(10)
7512557
$7.60
18
ARM,TRLG,LH,BLK. Substituted by 1822427
1822053-067
Unavailable
18
ARM,TRLG,RH,BLK. Substituted by 1822428
1822052-067
Unavailable
19
STOP,STRNG,LH,BLK.
5220237-067
Unavailable
19
STOP,STRNG,RH,BLK.
5220238-067
Unavailable
20
Arm, Steering
5220326-067
Unavailable
21
WSHR-.813X.406X.105-Y
7555832
$2.39
21
WSHR-.813X.406X.105-Y
7555832
$2.39
22
BUSHING,SPINDLE HSG,(10)
3574208
$3.19
23
RIVET(50)
7621433
$1.49
24
SPINDLE,BLK. Substituted by 5130919-067
6230055-067
Unavailable
25
ZERK,FITTING,THREADED(10)
7080433
$1.49
26
BUSHING,PIVOT,(10)
5010158
$19.99
27
STOP-RUBBER
5521094
Unavailable
28
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
28
SKAG,PR.,CARBIDE (Pair)
2870693
$69.99
29
BOLT(10)
7515462
$8.79
30
DECAL,STRIPE,(SP) [No Longer Available]
7073346
Unavailable
31
SKI Substituted by 1820332-067
1820332
Unavailable
33
BUSHING-RADIUS ROD,(10)
5010127
$7.99
34
ROD,RADIUS,(BLK.)LOW
1822055-067
Unavailable
35
ROD, RADIUS,(BLK.)
1822054-067
Unavailable
36
NUT JAM(10)
7542520
$2.39
37
ROD END, RH Substituted by 7061010
7060155
Unavailable
38
STRAP,SPACER TOP
5211344
$7.27
38
STRAP,SPACER TOP
5211344
$7.27
39
NUT, LOCK,(10)
7542503
$10.39
40
BRACE,LOW.PAN,BLK.
5222746-067
Unavailable
41
NUT FLEX,(10)
7542703
Unavailable
42
ROD END,RH Substituted by 7061011
7060156
Unavailable
43
STRAP,SPACER BOTTOM
5211345
$12.99
44
NUT-JAM(10)
7542711
$2.39
45
NUT LOCK(10)
7542411
$3.19
45
NUT LOCK(10)
7542411
$3.19
46
BUSHING-FLANGE
3573909
$2.39
47
WASHER SPECIAL(10)
7556509
$1.59
48
BAR,SWAY,9/16,BLK.
5224476-067
Unavailable
49
BUSHING-SWAYBAR
5410383
Unavailable
50
DECAL, IFS [No Longer Available]
7073182
Unavailable
51
NUT LOCK(10)
7542403
$3.99
51
NUT LOCK(10)
7542403
$3.99
52
BOLT(10) Substituted by 7515540
7515492
$4.62
