CHAINCASE ASSEMBLY 500 SPX (4922552255021A)

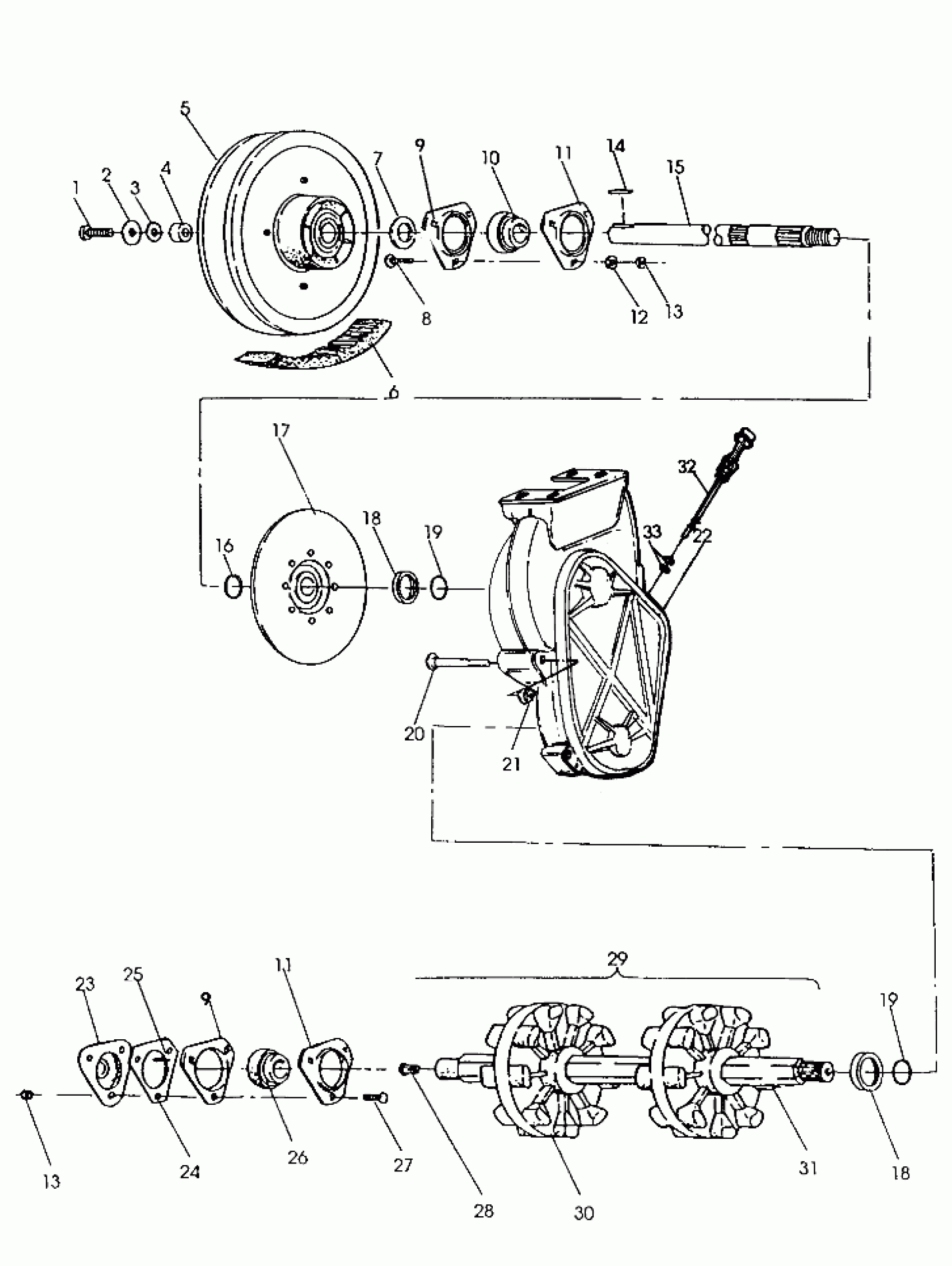

Polaris 500 SPX - 0920674N CHAINCASE ASSEMBLY 500 SPX (4922552255021A) Diagram
#
Description
Price
1
BOLT(10)
7515301
Unavailable
2
WASHER FLAT(10)
7555701
$3.99
3
WASHER(10)
7555734
Unavailable
4
DESC NOT_AVAILABLE
4020291
Unavailable
5
CLUTCH ASM,(36 DEG.) Substituted by 1322105
1322132
Unavailable
6
BELT DRIVE(5)
3211042
$109.99
7
WASHER SPECIAL(10)
7556509
Unavailable
8
BOLT(10) Substituted by 7512377
7512394
Unavailable
9
FLANGETTE,W/GREASE HOLE (Greasable)
5222752
$7.43
9
FLANGETTE,W/GREASE HOLE (Greasable)
5222752
$7.43
10
BEARING, (RUBBER SEAL) Substituted by 3514519 (Skwezlok - Felt)
3514515
$64.99
11
FLANGETTE
5222751
$16.44
11
FLANGETTE
5222751
$16.44
12
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
13
NUT-5/16-18 NYLOK-Y
7542324
$1.49
14
KEY-SQUARE(10)
7721204
$3.19
15
JACKSHAFT ASM, BLK. (Incl. 16)
1332141-067
$190.46
16
RING, RETAINING(10)
7710422
$3.99
17
DISC ASM, BRAKE
1910086
Unavailable
18
SLEEVE, SEAL
5020588
$23.99
18
SLEEVE, SEAL
5020588
$23.99
19
O RING,(10)
5410613
$1.99
19
O RING,(10)
5410613
$1.99
20
BOLT(10)
7515428
$4.79
21
NUT(10)
7542423
$3.99
22
Chaincase (See Page 20)
-------
Unavailable
23
ADAPTER,DRIVE,W/ZERK
3280116
$101.17
24
GASKET,DRIVE ADAPTOR,(10)
5830012
$2.41
25
SQ. KEY SPEEDOMETER,(10)
3280017
$13.75
26
BEARING, (RUBBER SEAL) Substituted by 3514519 (Skwezlok - Contact)
3514515
$64.99
27
BOLT(10)
7512331
$3.99
28
BUSHING METAL SPEEDO
3280019
$11.99
29
DRIVESHAFT ASM. Substituted by 1590246 (Incl. 28,30,31)
1590230
$285.70
30
SPROCKET, 9T
5430571
Unavailable
31
DRIVE SHAFT Substituted by 6230083
6230067
Unavailable
32
DIPSTICK Substituted by 1332143
5431419
Unavailable
33
O-RING
5410675
$1.60
