BRAKE and CHAINCASE 500 SPX (4922552255019A)

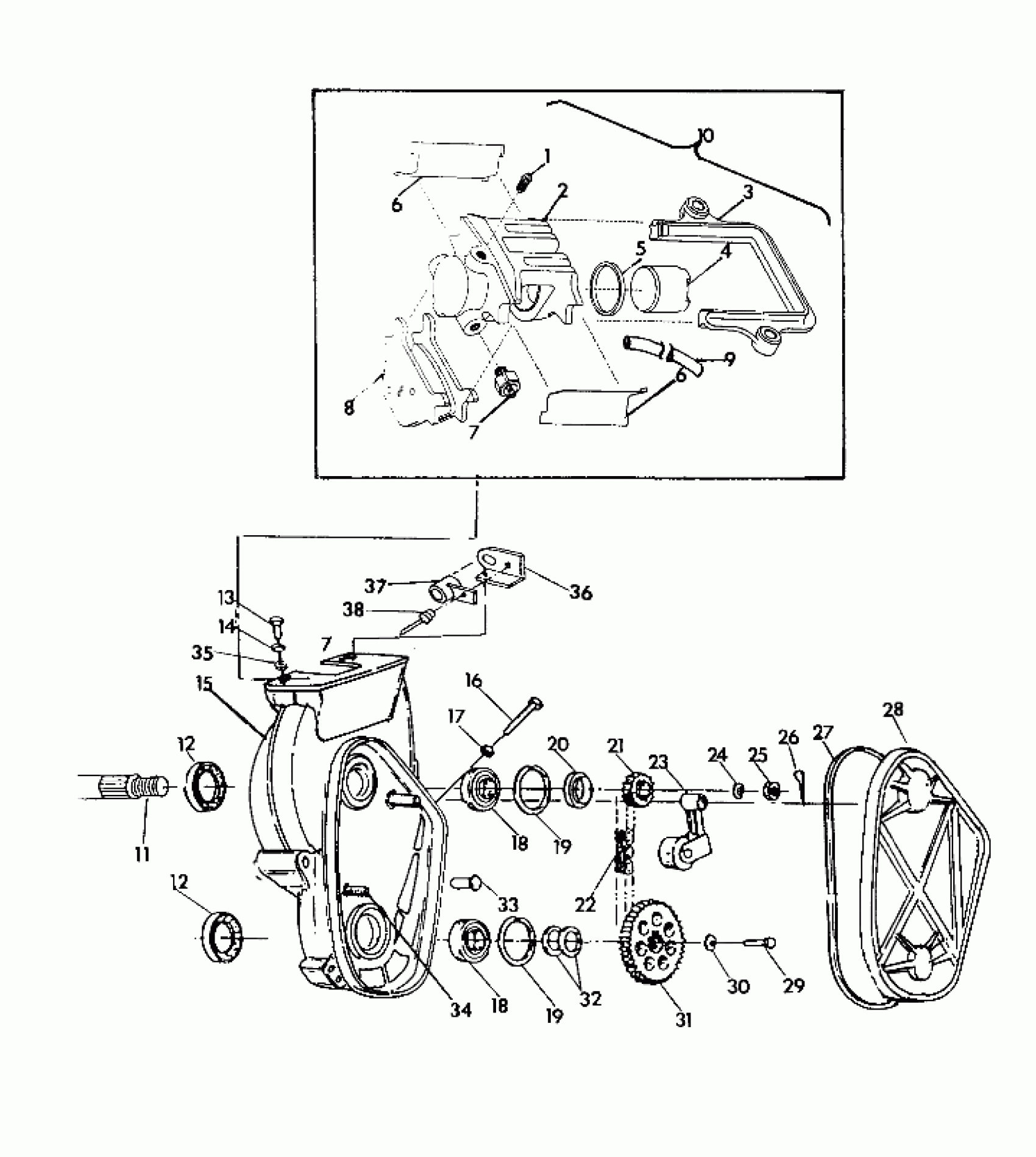

Polaris 500 SPX - 0920674N BRAKE and CHAINCASE 500 SPX (4922552255019A) Diagram
#
1
SCREW-BLEEDER
1930564
Unavailable
2
HOUSING [Must Purchase Assembly]
1930718
Unavailable
3
BRACKET
1930717
Unavailable
4
PISTON
1930716
Unavailable
5
SEAL-PISTON
1930567
Unavailable
6
CLIP, SPRING
1930715
Unavailable
6
CLIP, SPRING
1930715
Unavailable
7
SWITCH, STOPLIGHT
4110089
Unavailable
7
SWITCH, STOPLIGHT
4110089
Unavailable
8
PAD ASM, BRAKE Substituted by 1930723
1930720
Unavailable
9
LINE, BRAKE
1930696
Unavailable
10
CALIPER, BRAKE Substituted by 1930825 (Incl. 1-8)
1930701
Unavailable
11
JACKSHAFT ASM, BLK.
1332141-067
$190.46
12
SEAL-OIL
3610030
$20.22
12
SEAL-OIL
3610030
$20.22
13
SCREW(10) [No Longer Available]
7512408
Unavailable
14
WASHER SPRINGLOCK(10) Substituted by 7552603
7553001
Unavailable
15
CHAINCASE,TOP MNT.BRAKE
5130849
Unavailable
16
SCREW(10)
7515511
$3.99
17
NUT(10)
7542404
$1.59
18
BEARING,CHAINCASE *
3514306
Unavailable
18
BEARING,CHAINCASE *
3514306
Unavailable
19
DESC NOT_AVAILABLE
7718405
Unavailable
19
DESC NOT_AVAILABLE
7718405
Unavailable
20
SPACER, SPROCKET
5010270
Unavailable
21
SPKT,21T,(13W) (13W)
3221054
Unavailable
22
CHAIN,66P,(13W),SILENT (13W)
3224051
Unavailable
23
TIGHTENER ASM. Substituted by 1332213
1332078
$159.99
24
WASHER, SLOTTED(10)
7571620
$7.19
25
NUT, SLOTTED(10)
7542810
$3.19
26
COTTER PIN(10)
7661401
$1.49
27
GASKET-CHAINCASE
5410277
$24.99
28
COVER, CHAINCASE Substituted by 5630968
5630413
Unavailable
29
SCREW(10)
7515350
$3.97
30
WASHER(10)
7571618
$6.39
31
SPROCKET,39T,(13W) (13W)
3222052
Unavailable
32
WASHER SPECIAL(10)
7556509
$1.59
33
CAP, STUD COVER
5020569
Unavailable
34
BOLT(10)
7515477
$34.99
35
WASHER(10)
7555806
$1.49
36
BRKT,C.C.ROPE GUIDE Substituted by 5240277-067
5222828-067
Unavailable
37
GUIDE, RECOIL
5431385
$10.51
38
RIVET,(50)
7621477
$1.19
