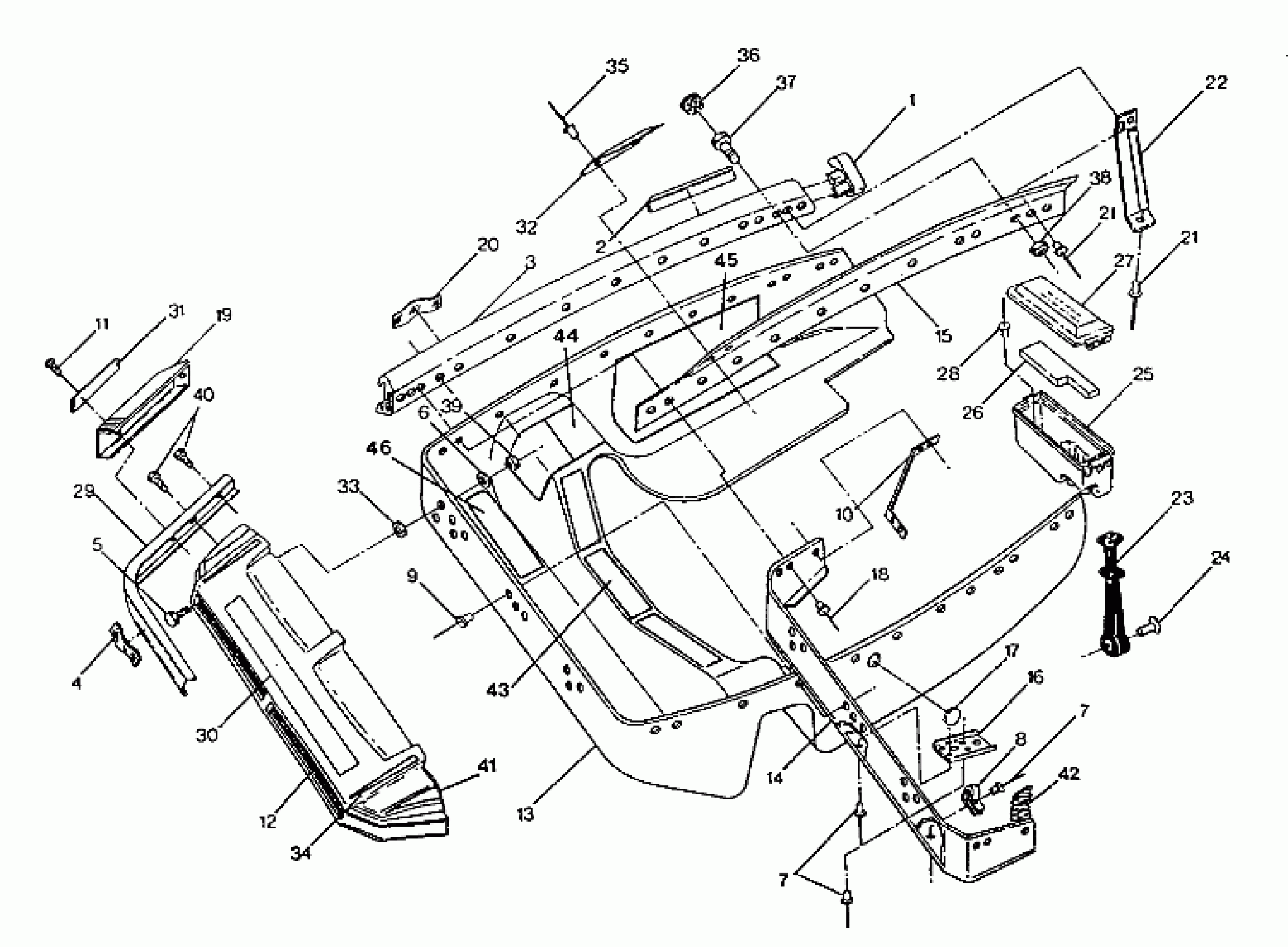

Polaris 500 SP - X920674 NOSEPAN 500 SP (4920222022009A) Diagram
#
1
CAP,BUMPER,LH
5431083
Unavailable
1
CAP,BUMPER,RH
5431084
$1.67
2
REFLECTOR AMBER
2670071
Unavailable
3
BUMPER, LH Substituted by 2670151-067
5222205
Unavailable
3
BUMPER, RH Substituted by 2670152-067
5222206
Unavailable
4
DECAL,FR. BUMPER [No Longer Available]
7073341
Unavailable
5
SCREW(10)
7512279
$1.49
6
WASHER(10)
7558301
$1.49
7
RIVET Substituted by 7661638
7661625
$1.19
7
RIVET Substituted by 7661638
7661625
$1.19
8
CLAMP, RETAINER(10)
7080372
$3.99
9
BLIND RIVET(50)
7621403
$1.49
10
BRACE,PAN, CORNER
5222254
$9.91
11
SCREW(10)
7511863
$1.99
12
CONE,NOSE,BLACK
5430931-070
Unavailable
13
NOSEPAN,BLK Substituted by 5410728-067
5410564-067
Unavailable
14
BRACE, HINGE
5220951
$56.99
15
GUIDE-HOOD LH
5510133
$19.83
15
GUIDE,HOOD RH
5510134
$20.63
16
BRACE, PAN
5223996
Unavailable
17
PLUG
5410344
$5.65
18
POP RIVET(50)
7621402
$1.49
19
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
20
DECAL(48.0'')SIDE EXT. [No Longer Available]
7072659
Unavailable
21
RIVET,3/16X.402(50)
7621432
$1.49
21
RIVET,3/16X.402(50)
7621432
$1.49
22
BRACE,PAN, LH Substituted by 5220522-067
5220522
Unavailable
22
BRACE, PAN,RH Substituted by 5220523-067
5220523
Unavailable
23
STRAP, HOOD LATCH
5410370
$24.27
24
RIVET,(50)
7621601
Unavailable
25
BOX-TOOL
5430716
$11.99
26
FOAM - TOOL BOX
5810266
Unavailable
27
COVER,TOOL BOX
5430719
$28.32
28
RIVET(50)
7621332
$1.49
29
BUMPER,FRONT Substituted by 5224333-067
5224333
$154.99
30
DECAL,NOSECONE,SILVER [No Longer Available]
7072548
Unavailable
31
EMBLEM'POLARIS'RED Substituted by 5430979-093
5430979-154
Unavailable
32
GUIDE, HOOD
5220984
Unavailable
33
CAP, TOWER
5020517
$16.49
34
DECAL,LH,N'CONE,TOP(91-500) [No Longer Available]
7072976
Unavailable
35
RIVET(50)
7621452
$1.49
36
PLUG, HOLE(10)
7080416
$5.65
37
BOLT(10)
7512296
Unavailable
38
NUT, LOCK(10)
7542103
$5.59
39
NUT-LOCK(10)
7542122
$1.49
40
SCREW(10)
7512102
$3.19
41
DECAL,LH,N'CONE(91-500) [No Longer Available]
7072980
Unavailable
41
DECAL,RH,N'CONE(91-500) [No Longer Available]
7072981
Unavailable
42
SPRING,HOOD CABLE
7041202
Unavailable
43
FOIL TAPE
5810128
$7.27
45
TAPE, FOIL(11X12)
5810465
$12.30
46
TAPE, FOIL,(5X12)
5810466
Unavailable
