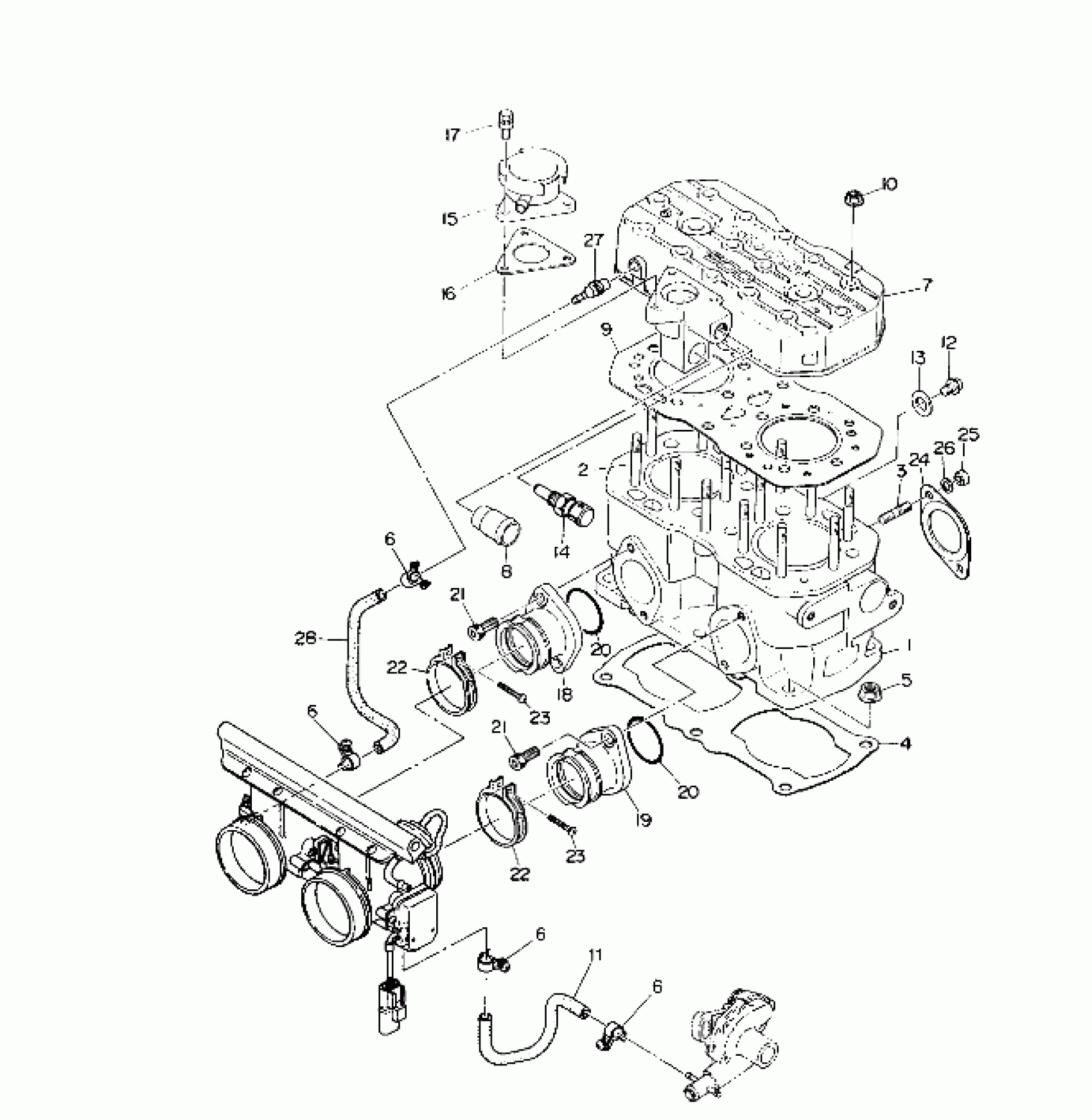

Polaris 500 SP - X920674 CYLINDER 500 SP (4920222022032A) Diagram
#
Description
Price
1
CYLINDER, CPL. (Incl.2, 3)
3084330
$629.99
2
STUD Substituted by 3083360
3083074
Unavailable
3
STUD (10)
3080016
$5.75
4
GASKET, BASE Substituted by 3084768
3083959
$64.99
5
NUT-FLANGE(10)
3082911
$1.99
6
CLAMP
3084051
Unavailable
6
CLAMP
3084051
Unavailable
6
CLAMP
3084051
Unavailable
6
CLAMP
3084051
Unavailable
7
HEAD, CYL.,CPL. (Incl.8)
3084331
$329.99
8
PIPE, WATER (Water)
3083452
Unavailable
9
GASKET, HEAD
3084332
Unavailable
10
NUT-FLANGE(10)
3082910
$2.39
11
HOSE 2, WATER (Water)
3084338
Unavailable
12
PLUG Substituted by 3084491
3082718
Unavailable
13
GASKET-ALUM Substituted by 3084492 (Aluminum)
3082719
Unavailable
14
SENSOR,WATER TEMP. Substituted by 3086138
3084333
Unavailable
15
NECK, FILLER Substituted by 3083398
3083339
Unavailable
16
GASKET, FILLER NECK (Filler Neck)
3083340
Unavailable
17
BOLT&WASHER ASM.
3083361
Unavailable
18
ADAPTER,CPL, LH
3084334
Unavailable
19
ADAPTER,CPL. RH
3084335
Unavailable
20
O-RING
3084229
$7.90
20
O-RING
3084229
$7.90
21
Bolt, Allen
3081330
$3.99
21
Bolt, Allen
3081330
$3.99
22
BAND ASM.
3084045
Unavailable
22
BAND ASM.
3084045
Unavailable
23
SCREW,(10)
3081497
$2.39
23
SCREW,(10)
3081497
$2.39
24
GASKET,EXHAUST Substituted by 3084439
3082510
Unavailable
25
NUT(10)
3080285
Unavailable
26
WASHER Substituted by 3080530
3080051
Unavailable
27
JOINT, PIPE
3084336
Unavailable
28
HOSE 1,WATER (Water)
3084337
Unavailable
