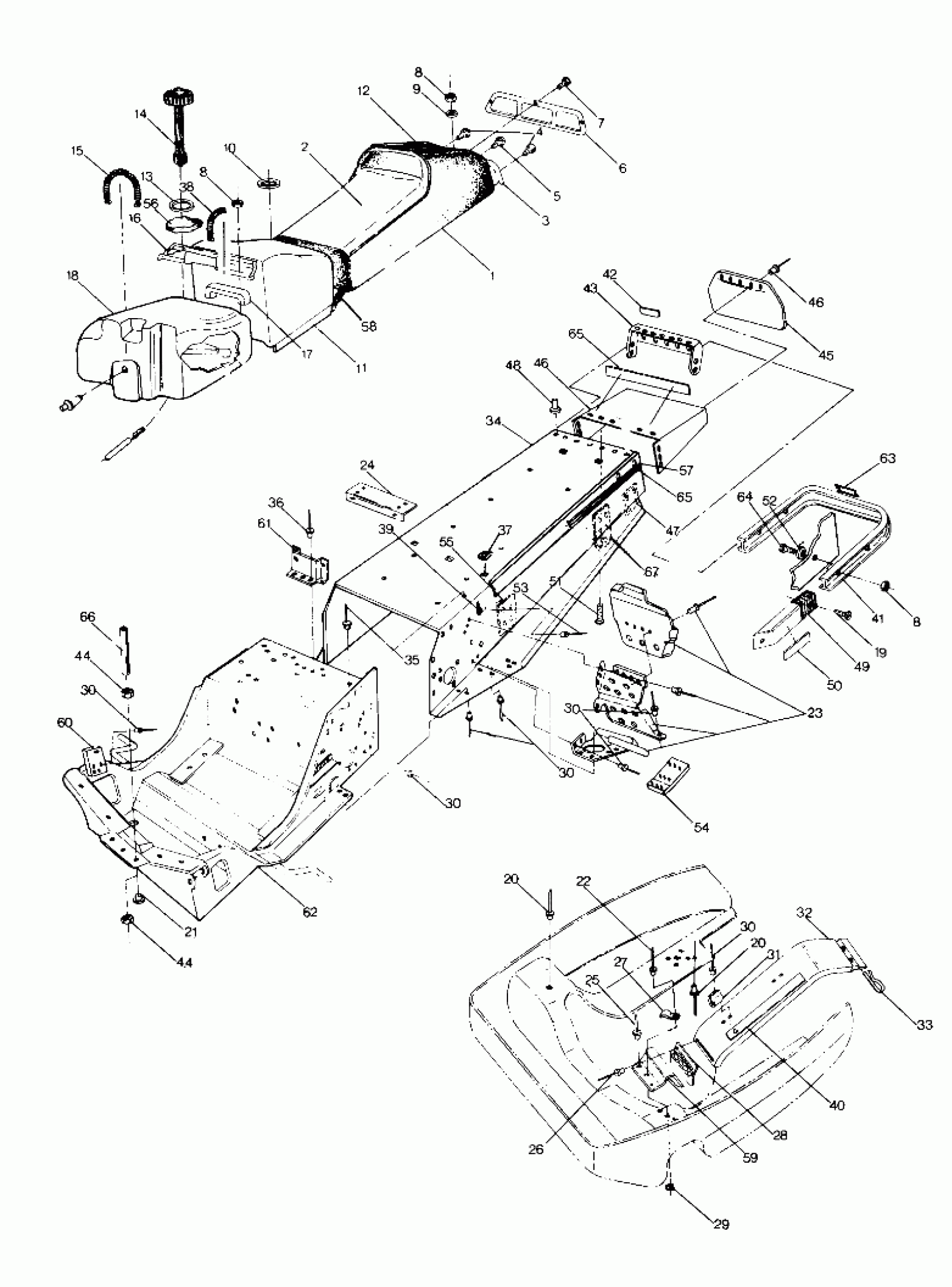

Polaris 500 SP - X920674 CHASSIS AND SEAT 500 SP (4920222022001A) Diagram
#
1
SEAT ASM,(500) Substituted by 2200751 (Incl. 2-7, 12, 73)
2681484
Unavailable
2
COVER,SEAT, (500) Substituted by 2200741
2681485
Unavailable
3
HOUSING,TAILLIGHT
5430425
Unavailable
4
BULB TAILLIGHT(10)
4030015
$4.03
5
BULB, BRAKELIGHT
4030019
Unavailable
6
LENS,TAILLIGHT
5430423
Unavailable
7
SCREW(10)
7511840
Unavailable
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
8
NUT-LOCK(10)
7542122
$1.49
9
WASHER(10)
7558221
$2.39
10
GROMMET-GAS TANK
5430575
Unavailable
11
COVER, TANK, (500) Substituted by 2200741
2681486
Unavailable
12
BUCKLE&STRAP
2681290
$4.78
13
GASKET-GAS CAP Substituted by 5810513
5810142
Unavailable
14
CAP,GAS(HI.CAP.)
2511184
Unavailable
15
SPRING,TANK,(10)
7042020
$13.75
16
STRAP,GAS TANK Substituted by 5222330-067
5221722
Unavailable
17
CUSHION,TANK H.D.
5420126
Unavailable
18
TANK, GAS,(EFI) Substituted by 2511201
2511192
Unavailable
19
SCREW(10)
7511863
$1.99
20
RIVET(50)
7621457
$1.49
20
RIVET(50)
7621457
$1.49
21
PLUG-HOLE
7080398
$4.84
22
POP RIVET(50)
7621402
$1.49
23
FOOTREST ASM,LH
2200250
Unavailable
23
FOOTREST ASM,RH
2200254
Unavailable
24
BRKT, TOOL BOX
5220973
Unavailable
25
RIVET(50)
7621452
$1.49
26
RIVET, POP(50)
7621330
$1.49
27
CLIP, WIRING,(10) Substituted by 7080665
4020035
Unavailable
28
HINGE
5210728
Unavailable
29
WASHER,13/64X1/2X18GA,FL-Y
7558212
$1.49
30
RIVET(50)
7621429
$1.49
30
RIVET(50)
7621429
$1.49
30
RIVET(50)
7621429
$1.49
30
RIVET(50)
7621429
$1.49
30
RIVET(50)
7621429
$1.49
31
CLIP, BELT Substituted by 5222769
5220817
Unavailable
32
GUARD,CLUTCH Substituted by 5240965
5230118
Unavailable
33
PIN,RETAINING,(10)
7080216
$9.70
34
TUNNEL ASM. Substituted by 1011808 (Incl. 46)
1011789
Unavailable
35
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
36
RIVET(50)
7621301
$3.99
37
SPEED NUT(10)
7670021
$6.99
38
SPRING, TANK
7042033
Unavailable
39
SNAP-MALE(10)
7080227
Unavailable
40
DECAL,ENG/CLUTCH [No Longer Available]
7072871
Unavailable
41
BUMPER, REAR Substituted by 5224334-067
5224334
Unavailable
42
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
43
PANEL,TUNNEL,BACK Substituted by 5220478-067
5220478
Unavailable
44
PALNUT(10)
7670031
Unavailable
44
PALNUT(10)
7670031
Unavailable
45
FLAP,SNOW,(BLUE) Substituted by 5410394
5410554
$121.02
46
POP RIVET(50)
7621418
$1.49
46
POP RIVET(50)
7621418
$1.49
47
WEARPLATE,TUNNEL
5222061
Unavailable
48
RIVET Substituted by 7661812
7661818
Unavailable
49
DESC NOT_AVAILABLE
5340930
Unavailable
50
REFLECTOR RED
2670070
$9.91
51
BOLT(10)
7512103
$3.19
52
WASHER(10)
7558301
$1.49
53
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
54
PLATE,TUNNEL,LH
5220634
Unavailable
54
PLATE,TUNNEL,RH
5220635
Unavailable
55
BRKT. Substituted by 5220542-067
5220542
Unavailable
56
FOAM, FILLER
5810201
Unavailable
57
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
58
HARNESS-TAILLIGHT Substituted by 2460399
2460226
Unavailable
59
BRACKET, HINGE Substituted by 5241437
5220406
Unavailable
60
SUPPORT,MUFFLER Substituted by 1011831-067
1011831
Unavailable
61
BRKT,GASTANK,WELD. Substituted by 1011733-067
1011733
Unavailable
62
BULKHEAD Substituted by 1011827-067
1011827
Unavailable
63
DECAL(36.0'')R.BUMP. [No Longer Available]
7072653
Unavailable
64
BOLT(10)
7512240
$3.99
65
DECAL,LH,TUNNEL(91-500) [No Longer Available]
7072982
Unavailable
65
DECAL,RH,TUNNEL(91-500) [No Longer Available]
7072983
Unavailable
65
DECAL,LH,TUNNEL(91-500) [No Longer Available]
7072982
Unavailable
65
DECAL,RH,TUNNEL(91-500) [No Longer Available]
7072983
Unavailable
66
SPACER
5332896
Unavailable
67
BRKT,R.SUSP,RH MTG. Substituted by 1011750-067
1011667
Unavailable
67
BRKT,R.SUSP,LH MTG. Substituted by 1011749-067
1011666
Unavailable
