TUNNEL ASSEMBLY 500 SP/500 SKS (4921262126001A)

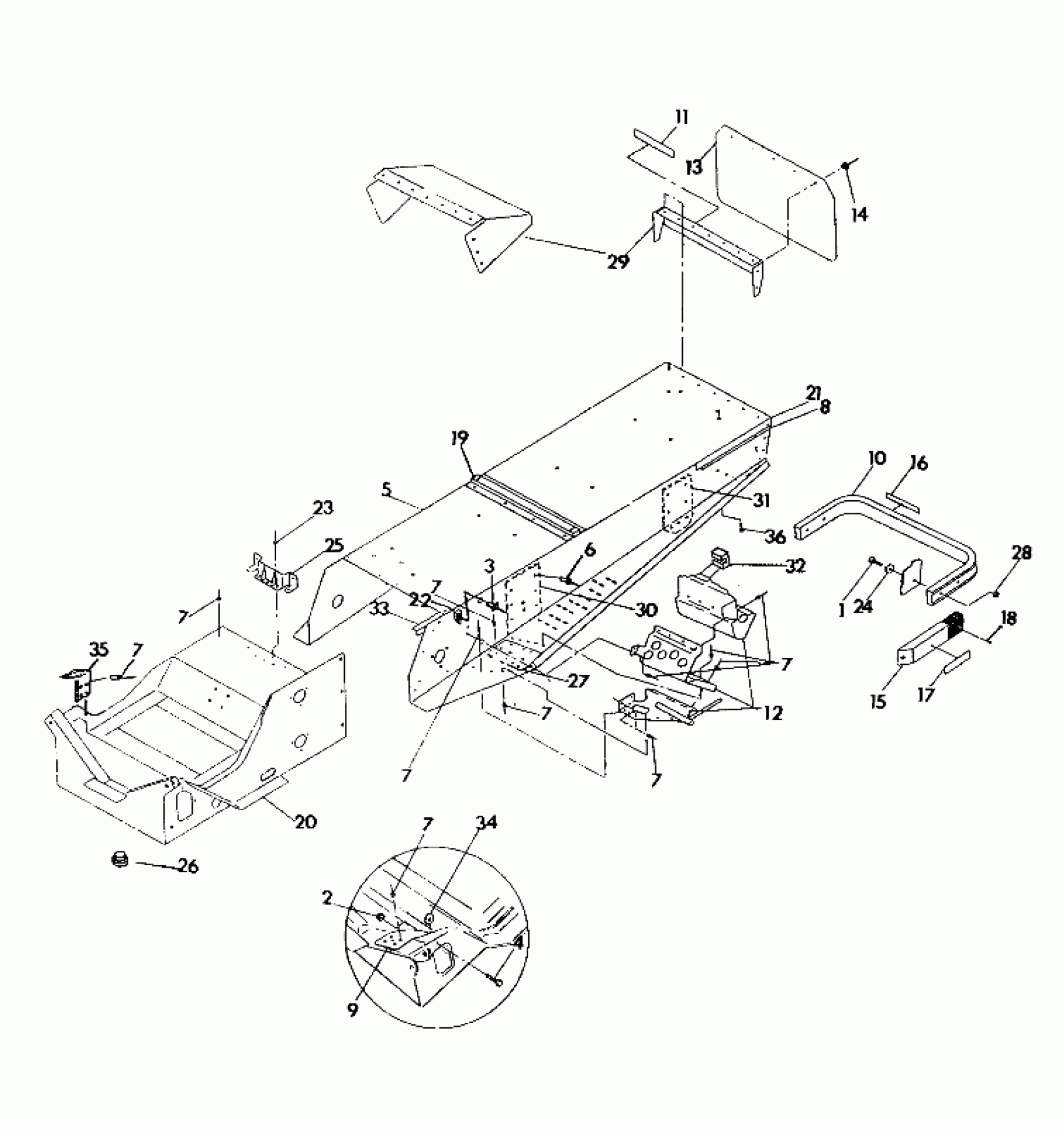

Polaris 500 SKS - 0920574 TUNNEL ASSEMBLY 500 SP/500 SKS (4921262126001A) Diagram
#
1
BOLT(10)
7512240
$3.99
2
NUT LOCK(10)
7542321
$1.49
3
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
5
TUNNEL,(LIQ.SKS-91) (SKS)
1011811
Unavailable
5
TUNNEL,(LIQ.BLK-91) (SP)
1011809
Unavailable
6
RIVET,(50)
7661825
$1.49
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
7
RIVET, (MONOBOLT) Substituted by 7661637
7661620
Unavailable
8
DECAL,LH TUNNEL'500SKS' [No Longer Available] (SKS)
7073183
Unavailable
8
DECAL,RH TUNNEL'500SKS' [No Longer Available] (SKS)
7073184
Unavailable
8
DECAL,LH TUNNEL STRIPE [No Longer Available] (SP)
7073344
Unavailable
8
DECAL,RH TUNNEL STRIPE [No Longer Available] (SP)
7073345
Unavailable
9
BRACE,LH BLKHD,BLK.
5222582-067
Unavailable
9
BRACE,RH BLKHD,BLK.
5222583-067
Unavailable
10
BUMPER, REAR Substituted by 5224334-067 (SP)
5224334
Unavailable
10
CIRCLIP-EXTERNAL,40MM (SKS)
7670122
Unavailable
11
DECAL,TRACK SEAT(BLK.) [No Longer Available]
7073038
Unavailable
12
FOOTREST ASM,LH (SKS)
2200250
Unavailable
12
FOOTREST ASM,RH (SKS)
2200254
Unavailable
12
FOOTREST,LH,(650) (SP)
2200303
Unavailable
12
KIT, CV BOOT [Cannot Purchase as Assembly] (SP)
2200398
Unavailable
13
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
14
POP RIVET(50)
7621418
$1.49
15
CAP, BUMPER Substituted by 5430930-070
5430930
Unavailable
16
DECAL,(24'')R.BUMP'500/SKS' [No Longer Available] (SKS)
7073236
Unavailable
16
DECAL,R.BUMPER'500S/P' [No Longer Available] (SP)
7073342
Unavailable
17
REFLECTOR RED
2670070
$9.91
18
SCREW(10)
7511863
$1.99
19
BRKT,R.FUEL TANK,BLK.
5222375-067
$17.43
20
BULKHEAD Substituted by 1011827-067
1011827
Unavailable
21
DECAL(47.5'')TUNNEL [No Longer Available]
7072078
Unavailable
22
SNAP-MALE(10)
7080227
Unavailable
23
RIVET(50)
7621301
$3.99
24
WASHER(10)
7558301
$1.49
25
BRKT,GASTANK,WELD.
1011733-067
$19.73
26
PLUG, HOLE(10)
7080416
$5.65
27
PLATE,TUNNEL,LH
5220634
Unavailable
27
PLATE,TUNNEL,RH
5220635
Unavailable
28
NUT-LOCK(10)
7542122
$1.49
29
PANEL,TUNNEL,BACK Substituted by 5220478-067 (SP)
5220478
Unavailable
29
PANEL,R.CLOSE-OFF ASM. (SKS)
1011799
$32.95
30
BRKT,FR.SUSP,BLK.
5220542-067
Unavailable
31
BRKT,LH.R.SUSP,BLK.
1011749-067
Unavailable
31
BRKT,RH.R.SUSP,BLK.
1011750-067
Unavailable
32
EXTRUSION,CLUTCHGUARD
5521238
$6.46
33
BRACE,TUNNEL REINF.
5222412
Unavailable
34
WASHER FLAT(10) (L.H. Only)
7555701
$3.99
35
SUPPORT,MUFFLER,BLK. Substituted by 5242798-067
1011831-067
Unavailable
36
BOLT(10)
7512103
$3.19
