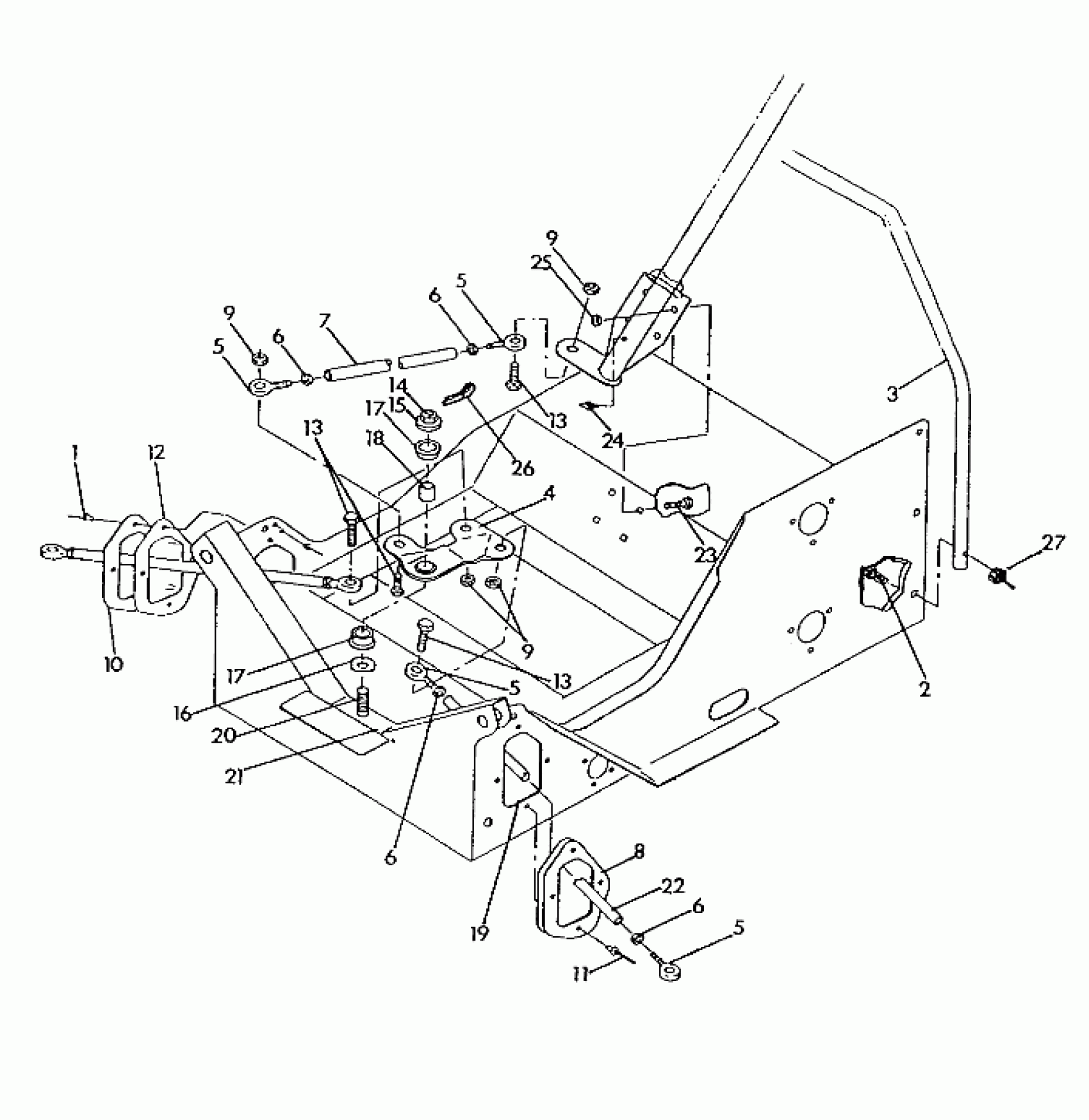

Polaris 500 SKS - 0920574 STEERING 500 SP/500 SKS (4921262126021A) Diagram
#
1
POP RIVET(50)
7621303
Unavailable
2
BOLT-CARRIAGE(10)
7512262
Unavailable
3
HOOP,STEERING
1011513-067
Unavailable
4
ARM,STEERING,CTR,BLK. (SP)
1822093-067
$13.19
4
STRG.ARM,CTR,BLK. (SKS)
1822040-067
Unavailable
5
ROD END,LH Substituted by 7060164
7060124
$48.56
5
ROD END RH Substituted by 7060165
7060125
$48.56
5
ROD END,LH Substituted by 7060164
7060124
$48.56
5
ROD END RH Substituted by 7060165
7060125
$48.56
5
ROD END,LH Substituted by 7060164
7060124
$48.56
5
ROD END RH Substituted by 7060165
7060125
$48.56
5
ROD END,LH Substituted by 7060164
7060124
$48.56
5
ROD END RH Substituted by 7060165
7060125
$48.56
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
6
NUT HEX(10)
7542401
$2.39
6
NUT
7542424
$1.49
7
ROD-DRAG LINK
5332712
Unavailable
8
PLATE,LH,BOOTSEAL Substituted by 5210959-067
5210959
Unavailable
9
NUT-LOCK(10)
7542439
$1.49
9
NUT-LOCK(10)
7542439
$1.49
9
NUT-LOCK(10)
7542439
$1.49
10
PLATE,RH,BOOT SEAL
5210904
Unavailable
11
DESC NOT_AVAILABLE
7821301
Unavailable
12
BOOT-TIE ROD
5410328
Unavailable
13
BOLT(10)
7512404
$3.99
13
BOLT(10)
7512404
$3.99
13
BOLT(10)
7512404
$3.99
14
NUT(10)
7542712
$9.59
15
WASHER(10)
7555721
$1.49
16
WASHER,WAVE(10)
7555735
$3.99
17
BUSHING
3563907
$3.99
17
BUSHING
3563907
$3.99
18
BUSHING-SPACER
5010161
Unavailable
19
BOOT , LH
5410388
Unavailable
20
BOLT(10)
7512658
Unavailable
21
BLOCK-CTR.STEERING
5130534
Unavailable
22
ROD,TIE,BLACK (SKS)
5332713-067
Unavailable
22
ROD, TIE, (BLK.) (SP)
5020432-067
Unavailable
23
BOLT(10) Substituted by 7512377
7512394
Unavailable
24
ZERK,FITTING,THREADED(10)
7080433
$1.49
25
NUT-5/16-18 NYLOK-Y
7542324
$1.49
26
PIN COTTER(10)
7661203
$1.49
27
NUT-LOCK(10)
7542122
$1.49
