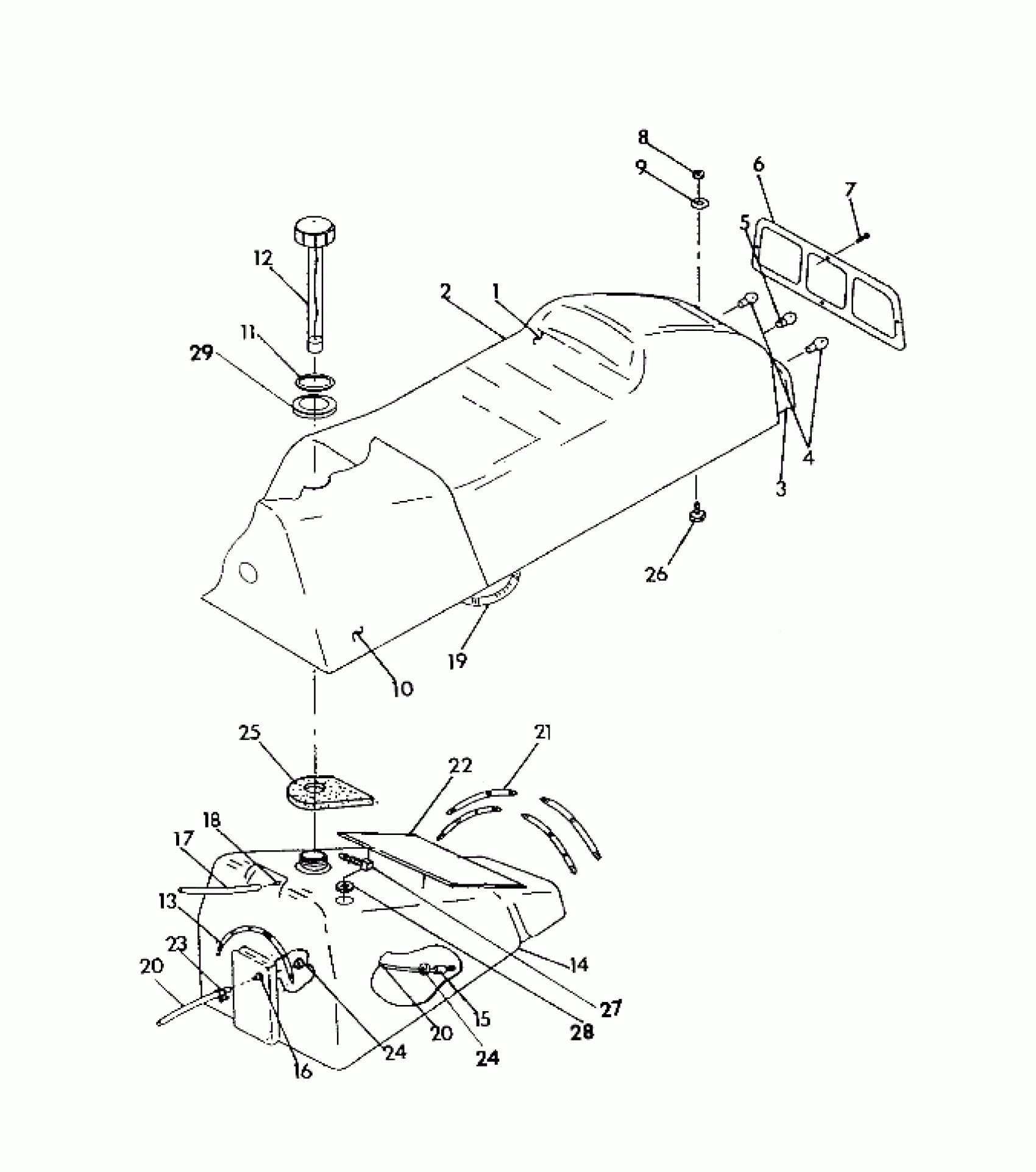

Polaris 500 SKS - 0920574 SEAT/GAS TANK ASSEMBLY 500 SP/500 SKS (4921262126003A) Diagram

#

Description
Price

1

SEAT ASM,(92-'500SKS') (SKS) (Incl. 2-7,21,22)

2681576

Unavailable

1

SEAT ASM. (SP) (Incl. 2-7,21,22)

2681556

Unavailable

2

COVER,SEAT(92-500SP) (SP)

2681557

Unavailable

2

COVER,SEAT (SKS)

2681577

Unavailable

3

HOUSING,TAILLIGHT

5430425

Unavailable

4

BULB,TAILLIGHT(10)

4030024

$4.84

5

BULB, BRAKELIGHT

4030019

Unavailable

6

LENS,TAILLIGHT

5430423

Unavailable

7

SCREW(10)

7511840

Unavailable

8

NUT-LOCK(10)

7542122

$1.49

9

WASHER(10)

7558221

$2.39

10

COVER,TANK (SKS)

2681548

Unavailable

10

COVER,TANK(92-500SP) (SP)

2681558

Unavailable

11

GASKET, GAS CAP

5810513

$8.89

12

CAP,GAS Substituted by 2511198

2511197

Unavailable

13

SPRING,TANK,(10)

7042020

$13.75

14

TANK, FUEL Substituted by 2511201

5431387

Unavailable

15

FUELPICKUP,W/STRAINER

7052037

$12.94

16

FITTING - OUTLET(10)

7052023

$24.99

17

VENT LINE,1/8,BULK Substituted by 8360009-600

8360009

Unavailable

18

VENT FITTING,TANK Substituted by 5430579

5430669

Unavailable

19

HARNESS-TAILLIGHT Substituted by 2460399

2460226

Unavailable

20

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

20

FUEL LINE-50FT.PKG. Substituted by 8450003-1525

2870563

Unavailable

21

SPRING, TANK

7042033

Unavailable

22

INSERT,TANKCOVER

5850098

Unavailable

23

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

24

RING, COMPRESSION(10)

7080402

$1.60

24

RING, COMPRESSION(10)

7080402

$1.60

25

FOAM, FILLER

5810201

Unavailable

26

BOLT(10)

7512103

$3.19

27

FITTING,TANK OUTLET(5/16)

7052059

Unavailable

28

GROMMET-TANK FITTING(10)

7052028

$6.39

29

GROMMET-GAS TANK

5430575

Unavailable
