PISTON AND CRANKSHAFT 500 SP/500 SKS (4921262126041A)

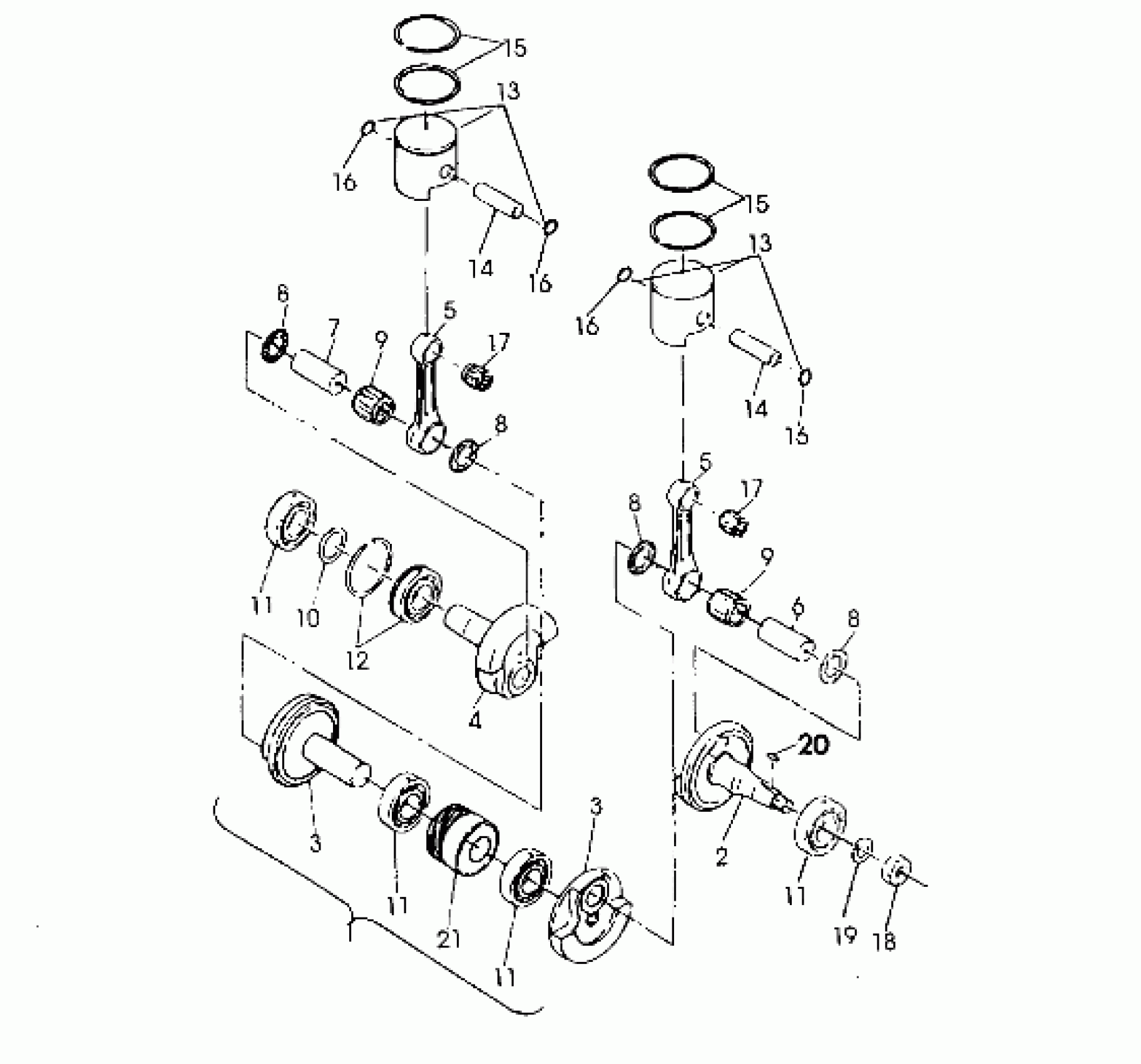

Polaris 500 SKS - 0920574 PISTON AND CRANKSHAFT 500 SP/500 SKS (4921262126041A) Diagram
#
1
CRANKSHAFT ASM. Substituted by 3084612 (Incl. 2-11,21)
3084360
$999.99
2
CRANKSHAFT #1
3083362
Unavailable
3
CRANKSHAFT 2 (Incl. 6)
3083713
$583.49
3
CRANKSHAFT 2 (Incl. 6)
3083713
$583.49
4
CRANKSHAFT Substituted by 3085179
3084357
Unavailable
5
ROD-CONNECTING
3083252
$164.99
5
ROD-CONNECTING
3083252
$164.99
6
PIN,CRANK
3083233
$36.41
7
Pin, Crank, 2
3083456
Unavailable
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
8
SPACER(CRANKPIN)
3083277
$15.99
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
9
BEARING-LARGE END Substituted by 3085628
3083255
$31.75
10
SPACER,CRANKSHAFT
3080447
$1.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
11
BEARING, BALL Substituted by 3084586
3083480
$44.99
12
BALL BEARING, C-4
3083714
Unavailable
13
PISTON,(.010 O/S) (.010 Oversize) (Incl
3084340
Unavailable
13
PISTON, (.020 O/S) (.020 Oversize) (Incl
3084341
Unavailable
13
PISTON, STD. (Standard) (Incl.16)
3084339
Unavailable
13
PISTON,(.010 O/S) (.010 Oversize) (Incl
3084340
Unavailable
13
PISTON, (.020 O/S) (.020 Oversize) (Incl
3084341
Unavailable
13
PISTON, STD. (Standard) (Incl.16)
3084339
Unavailable
14
PIN, PISTON
3083858
$23.99
14
PIN, PISTON
3083858
$23.99
15
RING,PISTON,STD. (Standard)
3084342
$47.60
15
RING,PISTON,(.010 O/S) (.010 Oversize)
3084343
Unavailable
15
RING,PISTON,(.020 O/S) (.020 Oversize)
3084344
$66.65
15
RING,PISTON,STD. (Standard)
3084342
$47.60
15
RING,PISTON,(.010 O/S) (.010 Oversize)
3084343
Unavailable
15
RING,PISTON,(.020 O/S) (.020 Oversize)
3084344
$66.65
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
16
CLIP,PISTON PIN,(10)
3083839
$4.75
17
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
17
BEARING, SMALL END Substituted by 3085595
3083216
$16.57
18
NUT
3083093
$19.99
19
WASHER-SPRING(10)
3083094
$3.17
20
KEY
3081447
Unavailable
21
GEAR,DRIVE,OIL PUMP
3083782
$102.13
