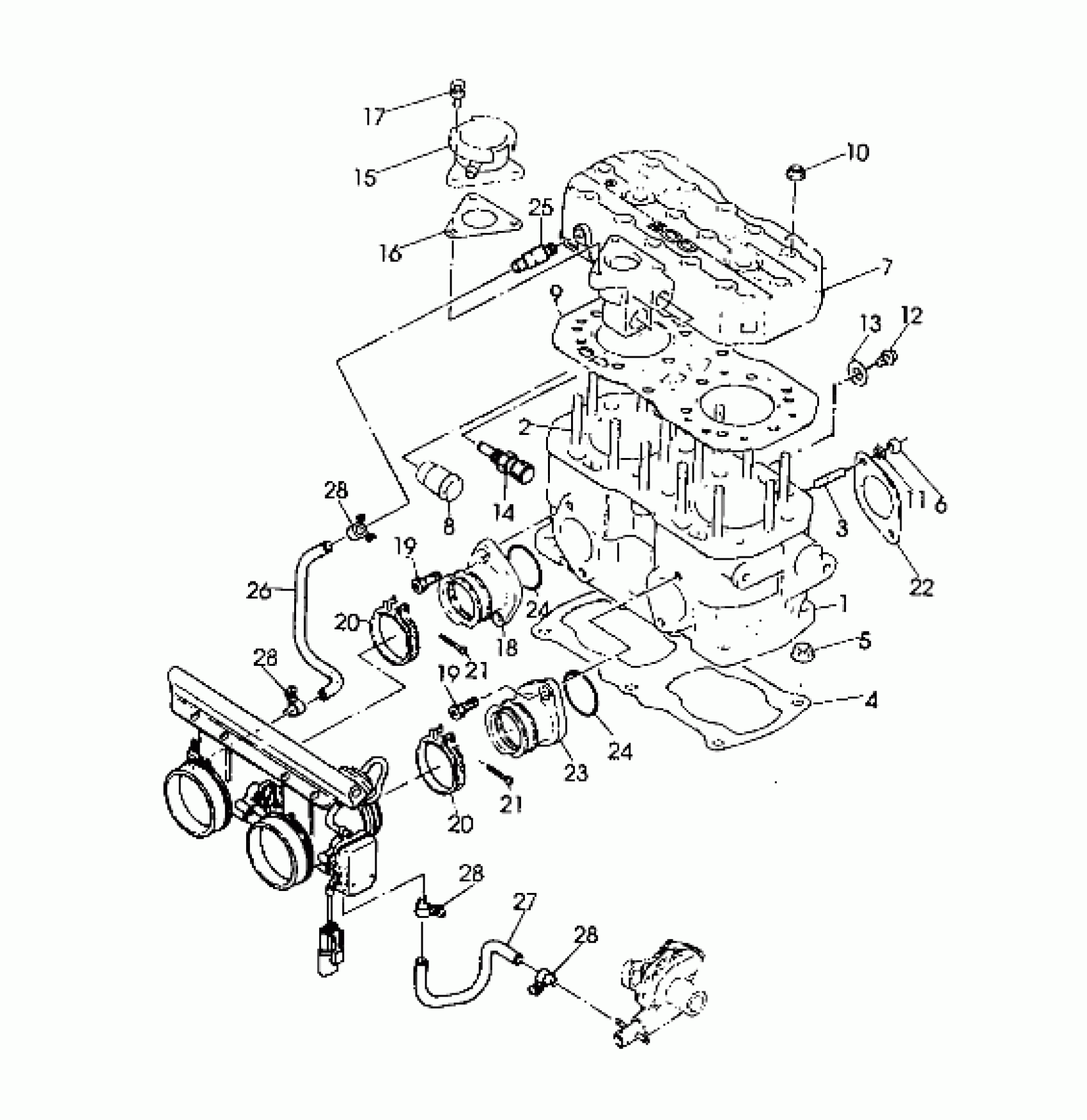

Polaris 500 SKS - 0920574 CYLINDER 500 SP/500 SKS (4921262126040A) Diagram
#
Description
Price
1
CYLINDER, CPL. (Incl. 2,3)
3084330
$629.99
2
STUD
3083360
Unavailable
3
STUD (10)
3080016
$5.75
4
GASKET, BASE Substituted by 3084768
3083959
$64.99
5
NUT-FLANGE(10)
3082911
$1.99
6
NUT(10)
3080285
Unavailable
7
HEAD, CYL.,CPL. (Incl. 8)
3084331
$329.99
8
PIPE, WATER (Water)
3083452
Unavailable
9
GASKET, HEAD
3084332
Unavailable
10
NUT-FLANGE(10)
3082910
$2.39
11
WASHER LOCK ,(10)
3080530
$3.19
12
PLUG Substituted by 3084491
3083044
Unavailable
13
GASKET-ALUM Substituted by 3084492
3082719
Unavailable
14
SENSOR,WATER TEMP. Substituted by 3086138
3084333
Unavailable
15
NECK, FILLER
3083398
Unavailable
16
GASKET, FILLER NECK
3083340
Unavailable
17
BOLT&WASHER ASM.
3083361
Unavailable
18
ADAPTER,CPL, LH
3084334
Unavailable
19
Bolt, Allen
3081330
$3.99
19
Bolt, Allen
3081330
$3.99
20
BAND ASM. (Incl. 21)
3084045
Unavailable
20
BAND ASM. (Incl. 21)
3084045
Unavailable
21
SCREW,(10)
3081497
$2.39
21
SCREW,(10)
3081497
$2.39
22
GASKET, EXHAUST
3083770
Unavailable
23
ADAPTER,CPL. RH
3084335
Unavailable
24
O-RING
3084229
$7.90
24
O-RING
3084229
$7.90
25
PIPE, HEAD (Head)
3084390
Unavailable
26
HOSE 1,WATER
3084337
Unavailable
27
HOSE 2, WATER
3084338
Unavailable
28
CLAMP
3084051
Unavailable
28
CLAMP
3084051
Unavailable
28
CLAMP
3084051
Unavailable
28
CLAMP
3084051
Unavailable
