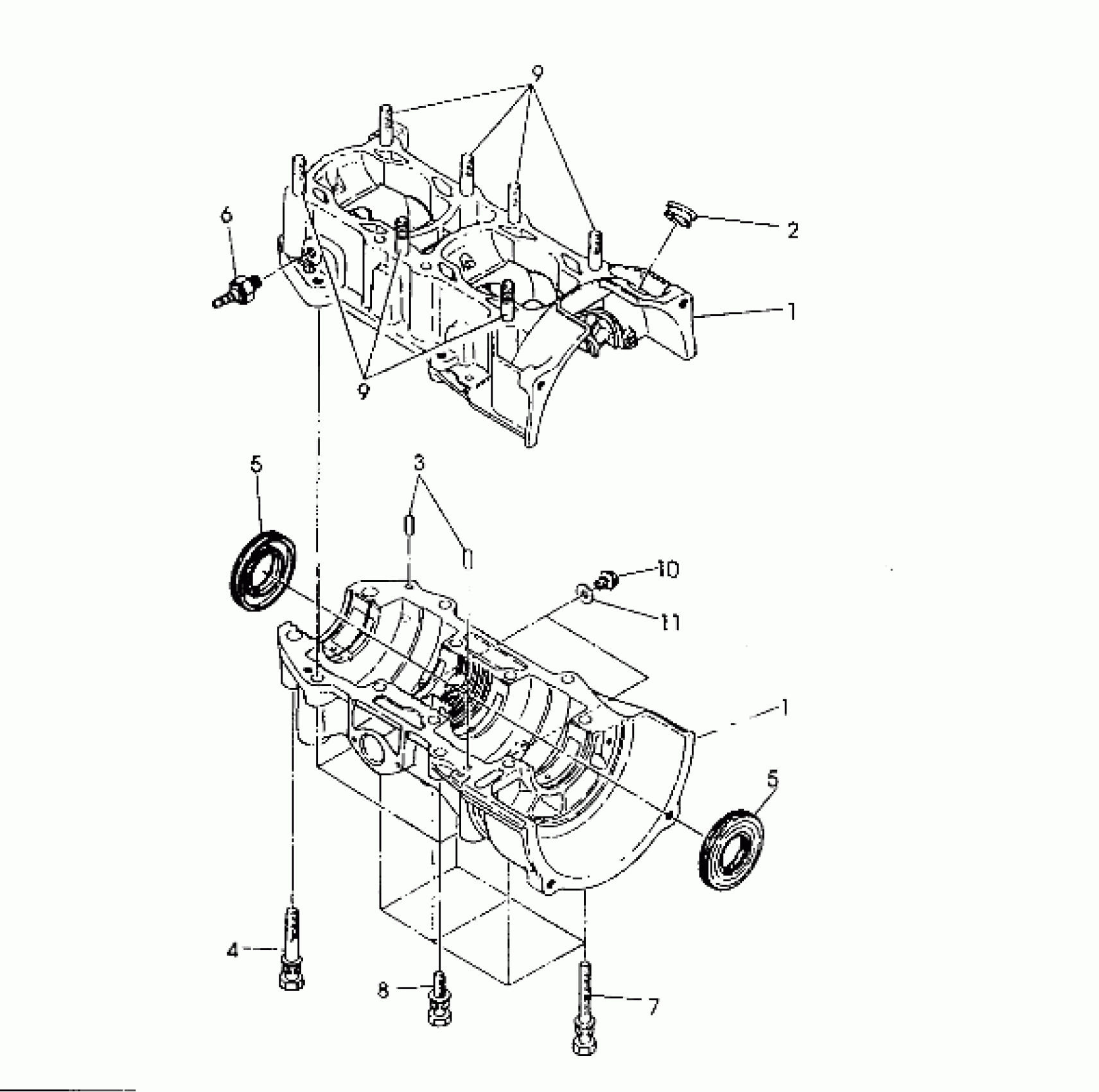

Polaris 500 SKS - 0920574 CRANKCASE 500 SP/500 SKS (4921262126039A) Diagram

#

Description
Price

1

CRANKCASE ASM. (Incl. 3-9)

3084329

$539.99

1

CRANKCASE ASM. (Incl. 3-9)

3084329

$539.99

2

GROMMET

3082875

$7.99

3

PIN,DOWEL(10) Substituted by 3080103

3083054

Unavailable

4

BOLT&WASHER ASM.

3084220

$8.79

5

SEAL, OIL(10)

3083045

$36.41

5

SEAL, OIL(10)

3083045

$36.41

6

SENSOR,CASE TEMP.

3084039

Unavailable

7

BOLT W/WASHER

3080739

$6.39

8

BOLT&WASHER

3083078

Unavailable

9

STUD Substituted by 3084119

3080745

Unavailable

9

STUD Substituted by 3084119

3080745

Unavailable

10

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

11

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19
