Description

Price

1

CONSOLE

5222757-067

Unavailable

2

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

2

RIVET, (MONOBOLT) Substituted by 7661637

7661620

Unavailable

3

SCREW(10)

7512007

$3.99

4

BRKT, ROPE GUIDE Substituted by 5222682-067

5222682

Unavailable

5

DECAL,SW,ELEC.ENRICH. [No Longer Available]

7073722

Unavailable

6

NUT, IGN.SWITCH(10)

7543101

Unavailable

7

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

5410611

Unavailable

8

DECAL,CONSOLE,EFI [No Longer Available]

7073401

Unavailable

9

SWITCH, IGN. Substituted by 2200357

4110111

Unavailable

10

GUIDE, RECOIL

5431385

$10.51

11

RIVET,(50)

7621477

$1.19

12

NUT(10)

7541925

$1.49

13

RECTIFIER

4060088

Unavailable

14

HEAT SINK

5210650

Unavailable

15

RIVET Substituted by 7661638

7661625

$1.19

16

DESC NOT_AVAILABLE

2460376

Unavailable

17

SWITCH,H-BAR HEATER Note:When ordering ignition key PN 5410611, be sure to specify if for an A,B,C,D, or E switch. Letter code will be labelled on underside of switch body behind console.

4110066

Unavailable

17

SWITCH,H-BAR HEATER Note:When ordering ignition key PN 5410611, be sure to specify if for an A,B,C,D, or E switch. Letter code will be labelled on underside of switch body behind console.

4110066

Unavailable

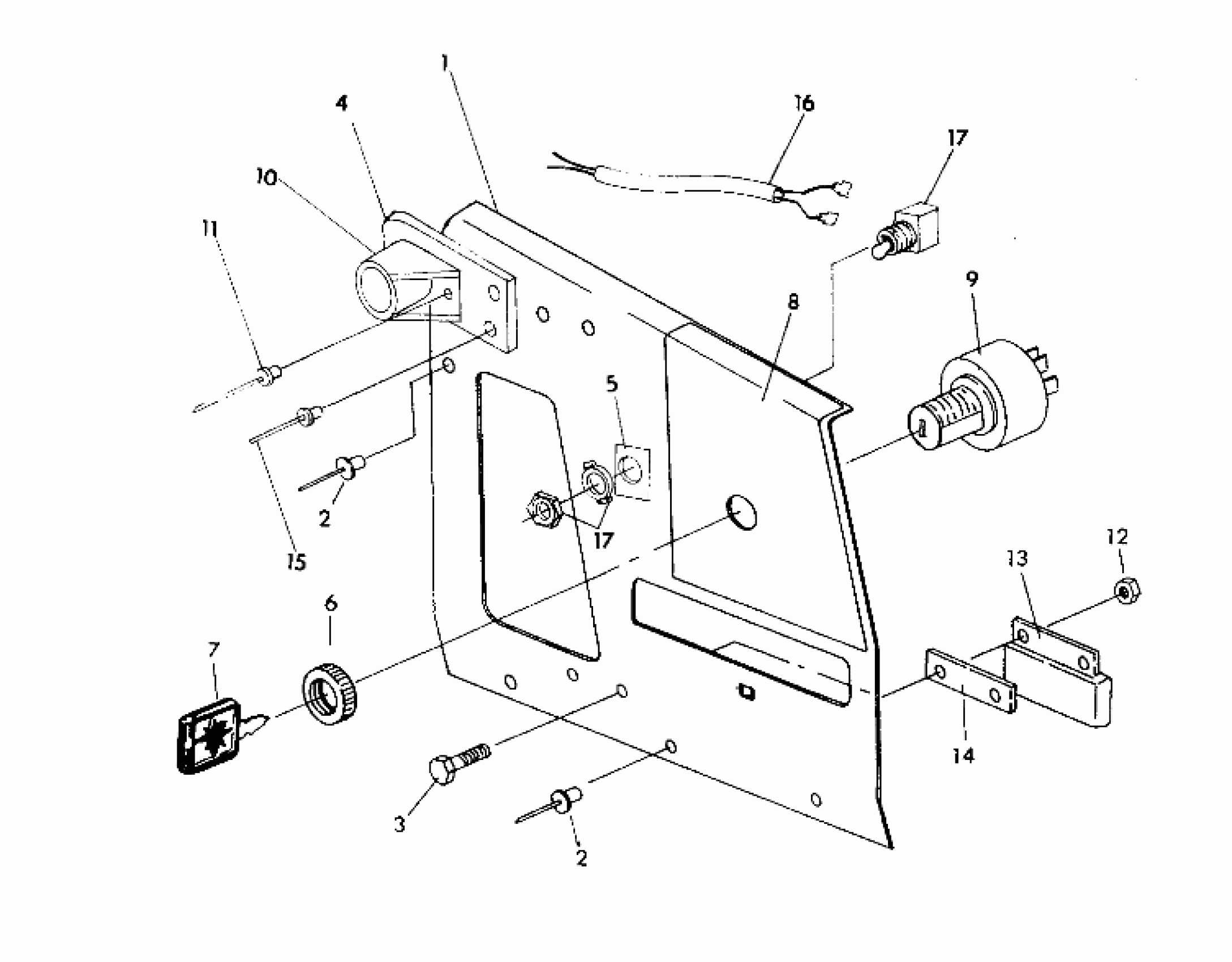

Polaris 500 SKS - 0920574 CONSOLE 500 SP/500 SKS (4921262126015A) Diagram

CONSOLE

RIVET, (MONOBOLT) Substituted by 7661637

RIVET, (MONOBOLT) Substituted by 7661637

SCREW(10)

BRKT, ROPE GUIDE Substituted by 5222682-067

DECAL,SW,ELEC.ENRICH. [No Longer Available]

NUT, IGN.SWITCH(10)

KEY,IGNITION,W/CAP [Cannot Purchase as Assembly]

DECAL,CONSOLE,EFI [No Longer Available]

SWITCH, IGN. Substituted by 2200357

GUIDE, RECOIL

RIVET,(50)

NUT(10)

RECTIFIER

HEAT SINK

RIVET Substituted by 7661638

DESC NOT_AVAILABLE

SWITCH,H-BAR HEATER Note:When ordering ignition key PN 5410611, be sure to specify if for an A,B,C,D, or E switch. Letter code will be labelled on underside of switch body behind console.

SWITCH,H-BAR HEATER Note:When ordering ignition key PN 5410611, be sure to specify if for an A,B,C,D, or E switch. Letter code will be labelled on underside of switch body behind console.
