TUNNEL ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, an (4929052905A006)

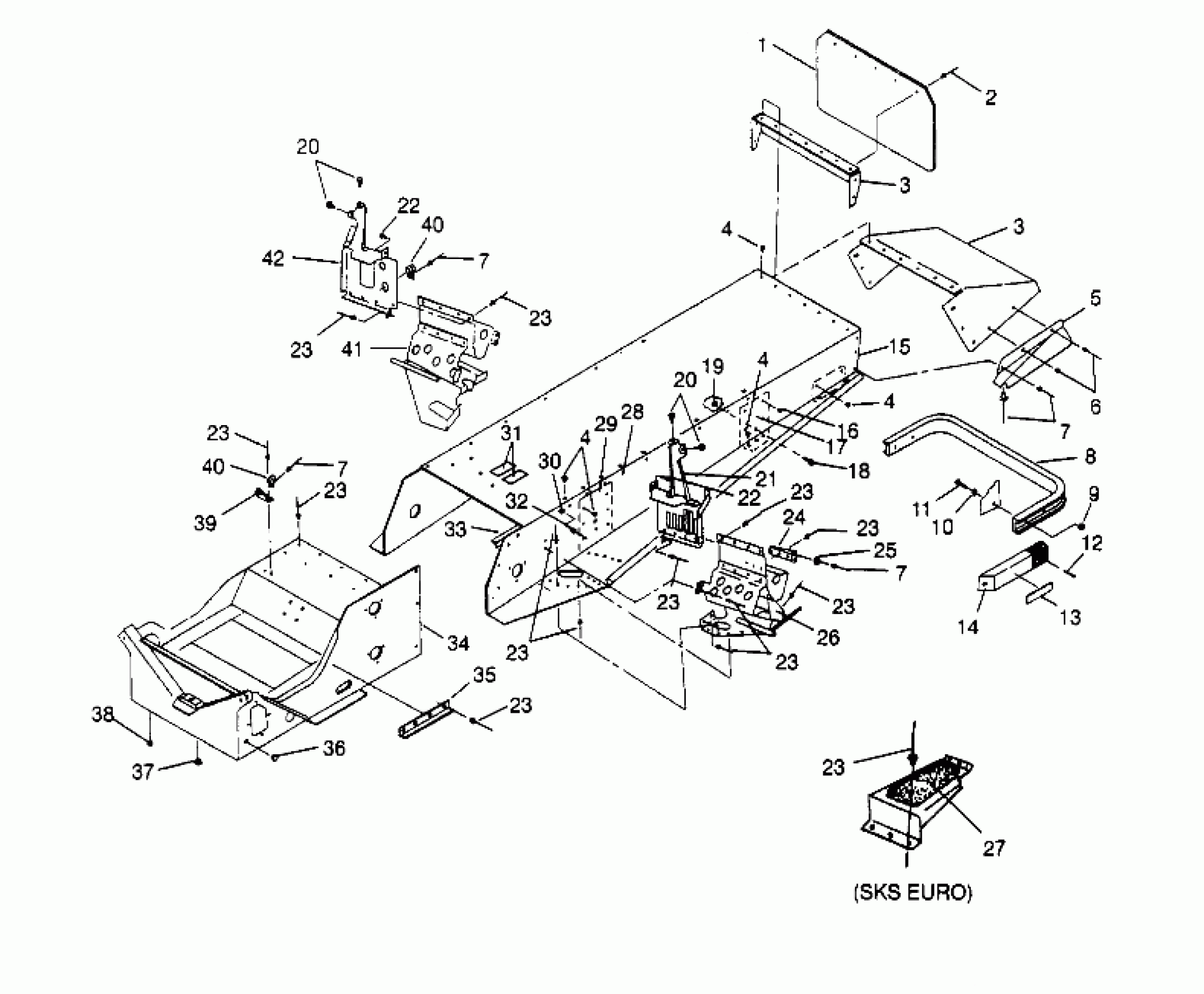

Polaris 500 EFI - 0952774 TUNNEL ASSEMBLY 500 EFI 0952774, EFI SKS 0952574, EFI SKS PT 0952974, an (4929052905A006) Diagram
#
1
FLAP, SNOW,SILVER Substituted by 5410394-1106
5410394
$121.02
1
FLAP,SNOW,15D Substituted by 5432149 (PT)
5431844
Unavailable
2
POP RIVET(50)
7621418
$1.49
3
PANEL,TUNNEL-BACK,BLK. (EFI)
5240599-067
Unavailable
3
CLOSE-OFF ASM,REAR,BLK. (SKS, Euro)
1012232-067
Unavailable
3
PANEL,CLOSE-OFF,REAR
1012299-067
$69.84
3
PANEL,TUNNEL-BACK,BLK. (EFI)
5240599-067
Unavailable
3
CLOSE-OFF ASM,REAR,BLK. (SKS, Euro)
1012232-067
Unavailable
3
PANEL,CLOSE-OFF,REAR
1012299-067
$69.84
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
4
RIVET,SEMI-TUBE,(50)
7661841
$1.49
5
SKIRT,LH,SNOW,BLK. (SKS Only)
5431627-070
$26.98
5
SKIRT,RH,SNOW,BLK. (SKS Only)
5431645-070
$31.35
6
RIVET(50) (SKS Only)
7621472
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
7
RIVET,3/16X.402(50) (SKS Only)
7621432
$1.49
8
BUMPER,REAR,BLK. (EFI)
5224334-067
Unavailable
8
BUMPER,R.SKS EFI (SKS)
5224349-067
Unavailable
8
BUMPER,REAR,SCAND.,BLK. (EURO)
5224421-067
$21.43
9
NUT-LOCK(10)
7542122
$1.49
10
WASHER(10)
7558301
$1.49
11
BOLT(10)
7512240
$3.99
12
SCREW(10)
7511863
$1.99
13
REFLECTOR RED
2670070
$9.91
14
CAP, BUMPER, BLK.
5430930-070
Unavailable
15
TUNNEL ASM,BLK,LIQ.SKS (Euro SKS)
1012098
$366.65
15
TUNNEL ASM,BLK,'LIQ' (EFI)
1012085
$366.65
15
TUNNEL ASM,BLK,SKS,'LIQ' (SKS)
1012088
$366.65
15
TUNNEL ASM,BLK. (SKS PT)
1012301
$366.65
16
RIVET,SEMI-TUBE,(50)
7661840
Unavailable
17
BRKT,RH.REAR SUSP. (SKS)
1011906-067
Unavailable
17
BRKT,LH.REAR SUSP (SKS)
1011905-067
Unavailable
17
BRKT,RH,R.SUSP. (EFI)
1011858-067
Unavailable
17
BRKT,LH,R.SUSP (EFI)
1011857-067
Unavailable
18
BOLT, BLACK (SKS Only)
7515494
$3.03
19
NUT(10) (SKS Only)
7542423
$3.99
20
BUMPER,HOOD
5410768
$2.95
20
BUMPER,HOOD
5410768
$2.95
21
MT,CONSOLE,LH
1011951-067
$35.51
22
SCREW(10)
7512057
$2.38
22
SCREW(10)
7512057
$2.38
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
23
RIVET,INTERLOCK,B(50)
7661638
$1.49
24
SUPPORT,BUMPERSIDE,BLK.
5240294-067
Unavailable
25
STOP, BUMPER
5410826
Unavailable
26
FOOTREST ASM,LH,BLK. Substituted by 1012544
1011934
Unavailable
27
PAD,LH FOOT SAFETY (Euro)
5830007
$7.89
27
PAD,RH FOOT SAFETY (Euro)
5830008
$4.92
27
FOOTREST,LH R,BLK. (Euro)
5220893-067
Unavailable
27
FOOTREST,RH R,BLK. (Euro)
5220894-067
$32.15
28
NUT,SERT(10)
7541938
Unavailable
29
BRKT,F.SUSP.,BLK.
5211323-067
$29.99
30
SNAP-MALE(10)
7080227
Unavailable
31
DECAL,TOP,TUNNEL STRIP
7073978
Unavailable
32
RIVET-POP 1/8(.063-.125)-ST-Z
7621222
$1.49
33
BRACE,REINF.TUNNEL
5240242
Unavailable
34
BULKHEAD,BLK.
1012248-067
$436.51
35
GUARD,ADAPTER GUIDE
5222857
$12.94
36
PLUG, HOLE(10)
7080416
$5.65
37
PLUG-HOLE
7080398
$4.84
38
BUSHING,OPEN/CLOSE(10)
7080399
$2.39
39
BRKT,ROPE GUIDE,BLK.
5222687-067
$59.99
40
GUIDE, RECOIL
5431385
$10.51
40
GUIDE, RECOIL
5431385
$10.51
41
FOOTREST ASM,RH,BLK. Substituted by 1012545
1011935
Unavailable
42
MT,CONSOLE,RH
1011952-067
$339.99
